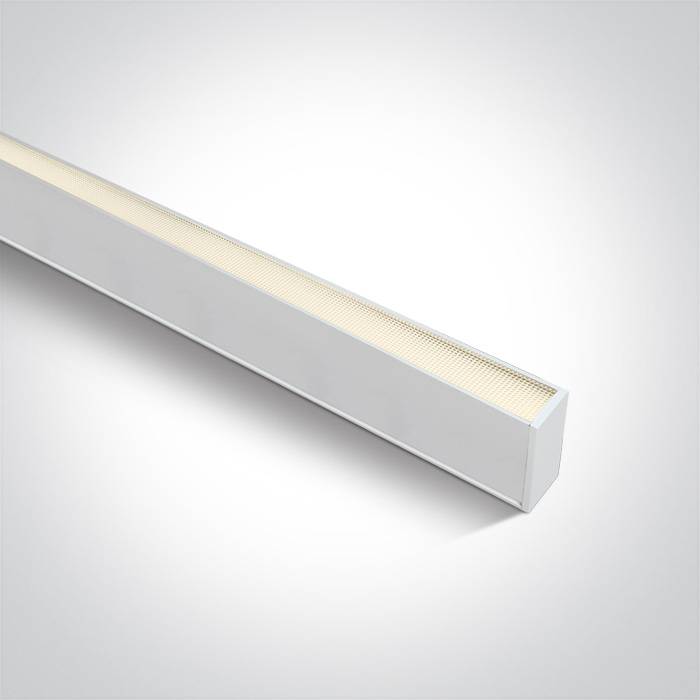

40W Linear System with UGR19 Diffuser Surface 38150A - Surface or Suspended Ceiling Luminaire
Verified by manufacturer 7 months ago
38150A/W/W white 40 W UGR19 linear system with diffuser surface, suspended 3000 K
38150A/W/W white 40 W UGR19 linear system with diffuser surface, suspended 3000 K
Certificate of Approval
Certificate type
40 W UGR19 linear ceiling lights for indoor installation, surface or suspended mounting.
Application
Ceiling lights for indoor installation, surface or suspended mounting. Particularly suited for offices.
Description
40 W UGR19 linear ceiling lights for indoor installation, surface or suspended mounting.
Features and benefits:
- Complies with EN 60598-1 and any other specific standards.
- Complete with 1000 mA driver.
- IP20.
- 3000 or 4000 K.
- Two housing colours.
- Also available recessed or in 50 W models (all specified separately).
General information

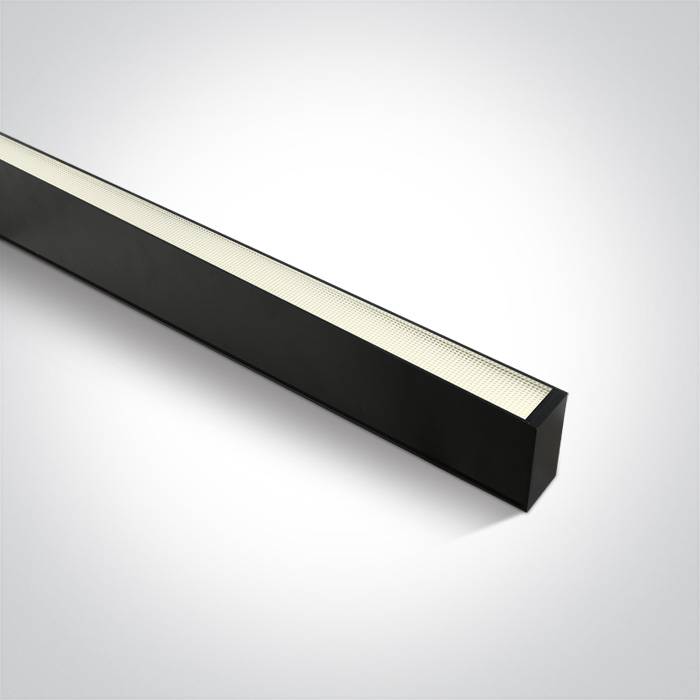

Color | White Black |
Material | Aluminium Guidance for specification option: Housing. |
Shape | Rectangle |
Length | 1200 mm |
Width | 35 mm |
Height | 70 mm |
Warranty description | Three year |
Uniclass | |
CAWS | V90/510 Luminaires V90/510 General purpose luminaires |
Specification data - Surface luminaires
Standard | To EN 60598-1.Guidance for specification option: And any other specific standards; consult manufacturer for details. |
Luminaire description | Rectangular ceiling light with built-in LED and white housing.Guidance for specification option: 3000 mm-long cable. Epistar SMD 2835 LED as standard. |
Classification | |
Ingress protection (minimum) | IP20. |
Circumstances of use | Normal.Guidance for specification option: Indoor use. |
Controlgear position | Integral within luminaire. |
Nominal voltage | 220–240 V a.c.Guidance for specification option: 50/ 60 Hz. |
Luminaire power factor | Correct to minimum 0.9 lagging. |
LED luminaires | |
Initial LED luminaire efficacy (minimum) | 85 lm/W. |
Wattage | 40 W. |
Colour temperature | 3000 K. |
Colour rendering index (Ra) | 90. |
Beam angle | 120°.Guidance for specification option: Fixed. |
Dimming protocol | Manufacturer's standard.Guidance for specification option: Dependent on driver specified; see Accessories. |
Accessories | None.050170 suspension kit.050170C/B black corner section.DALI driver.Guidance for specification option: Consult manufacturer for details. |
Output | 3400 lm. Guidance for specification option: At 700 mA. |
Sustainability data
Recyclability | 90 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 90 % |
Third party certifications
Certificate of Approval
DECLARATION OF CONFORMITY 38150A
