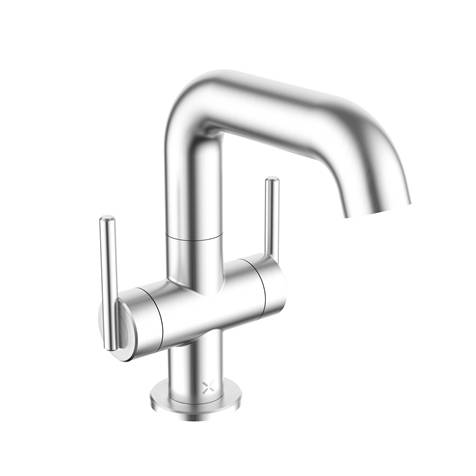

3ONE6 Lever Basin Side Deck Mixer 2 Handle

Verified by manufacturer 1 month ago

TL116DNS - Chrome

CROSSWATER Variant:

Lever operated washbasin tap.

Jump to:
BOS
01322422743 Website

Application

Deck mounted tap designed for any bathroom.

Description

Deck mounted lever operated washbasin tap taking all the excellent qualities of 316 grade stainless steel and combines them with a new, timeless design that focuses on the material’s inherent beauty.


Features and benefits:


  • 15 year guarantee.
  • Incredibly durable.
  • Increasingly resistant to corrosion and heat.
  • Hygienic, non-toxic, and antibacterial.
  • Endlessly recyclable.
  • Virtually clean-free.
  • Dual levers allow for independent control of hot and cold water. Each handle or lever operates a separate valve that regulates the flow and temperature of the corresponding water supply.
  • Requiring a single mounting hole makes it easier to install compared to taps that require separate holes for hot and cold water controls.
  • With two separate handles, users can easily adjust the water temperature to their preference by manipulating the hot and cold water controls individually. This provides greater control over achieving the desired water temperature.
  • Basin mixers use ceramic disc cartridges, which provide smooth operation and excellent durability.

General information

Color

Silver

Bronze

Black

Gold

Finish

Chrome

Brushed

Material

Stainless steel

Shape

Other

Length

170 mm

Guidance for specification option:

Depth

Width

114 mm

Height

185 mm

Warranty description

15 year

Uniclass

Pr_40_20_87_98 Washbasin tapsPrimary
Pr_40_20_87_55 Mixer taps
Pr_40_20_87_99 Washbasin thermostatic water supply sets

CAWS

N13/30 Washbasins

N13/335 Washbasins

Specification data - Washbasin taps

Standards

To BS EN 817.

Form

Lever tap.

Materials

-

Body

Stainless steel.

Finish and colour

Chrome-plated.

Flow rate (maximum)

5.3 L/minute at 3 bar.

Dimensions

185 x 114 x 170 mm.

Spout projection

131 mm.

Weight

1.05 kg.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1
