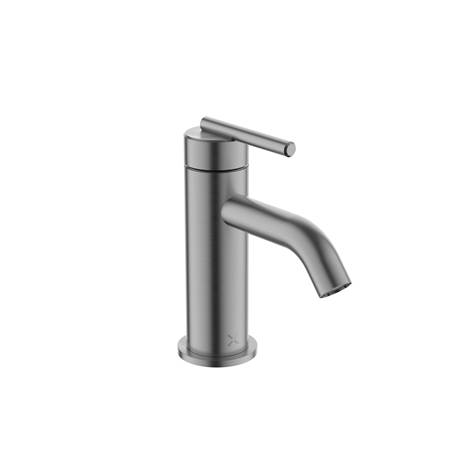

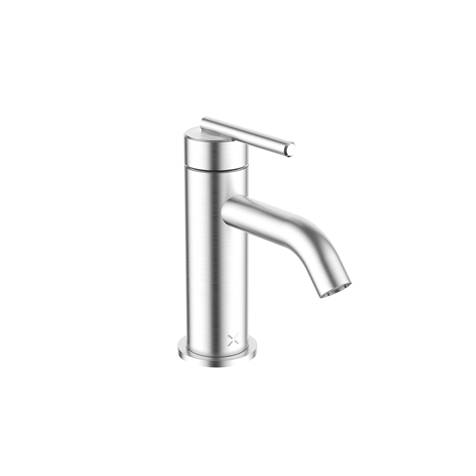

3ONE6 Lever Basin Mini Mono - Taps

Verified by manufacturer 3 months ago

TL114DNS - Chrome

CROSSWATER Variant:

Stainless steel mini tap.

Jump to:
BOS
01322422743 Website

Application

The compact size of a mini basin mixer allows it to be installed in tighter spaces. It is ideal for bathrooms with limited counter space or for installations where a larger tap might overpower the basin.

Description

Suitable for deck-mounting in basin areas the 3ONE6 Lever takes all the excellent qualities of 316 grade stainless steel and combines them with a new, timeless design that focuses on the material’s inherent beauty. Its smaller size compared to standard basin mixers. It is designed to fit well with smaller basins or cloakroom sinks, where space may be limited.


Features and benefits:


  • Incredibly durable.
  • Increasingly resistant to corrosion and heat.
  • Hygienic, non-toxic, and antibacterial.
  • Endlessly recyclable.
  • Virtually clean-free.
  • For single lever mixers the design allows for easy mixing of hot and cold water to achieve the desired temperature.
  • Requiring a single mounting hole makes it easier to install compared to taps that require separate holes for hot and cold water controls.
  • Moving the handle up or down adjusts the flow rate, while moving it left or right adjusts the temperature mix.
  • Basin mixers use ceramic disc cartridges, which provide smooth operation and excellent durability.
  • With fewer separate components basin monobloc taps are generally easier to clean and maintain.

General information

Color

Silver

Bronze

Black

Gold

Finish

Chrome

Brushed

Material

Stainless steel

Shape

Other

Length

124 mm

Guidance for specification option:

Depth

Width

45 mm

Height

133 mm

Warranty description

15 year

Uniclass

Pr_40_20_87_99 Washbasin thermostatic water supply setsPrimary
Pr_40_20_87_98 Washbasin taps

CAWS

N13/335 Washbasins

N13/30 Washbasins

Specification data - Washbasin thermostatic water supply sets

Standards

To BS EN 817.

Form

Mini lever tap.

Materials

-

Body

Stainless steel.

Finish and colour

316 stainless steel.

Flow rate (maximum)

4.85 L/minute at 3 bar.

Dimensions

124 x 45 x 133 mm.

Spout projection

94 mm.

Weight

0.8 kg.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1
