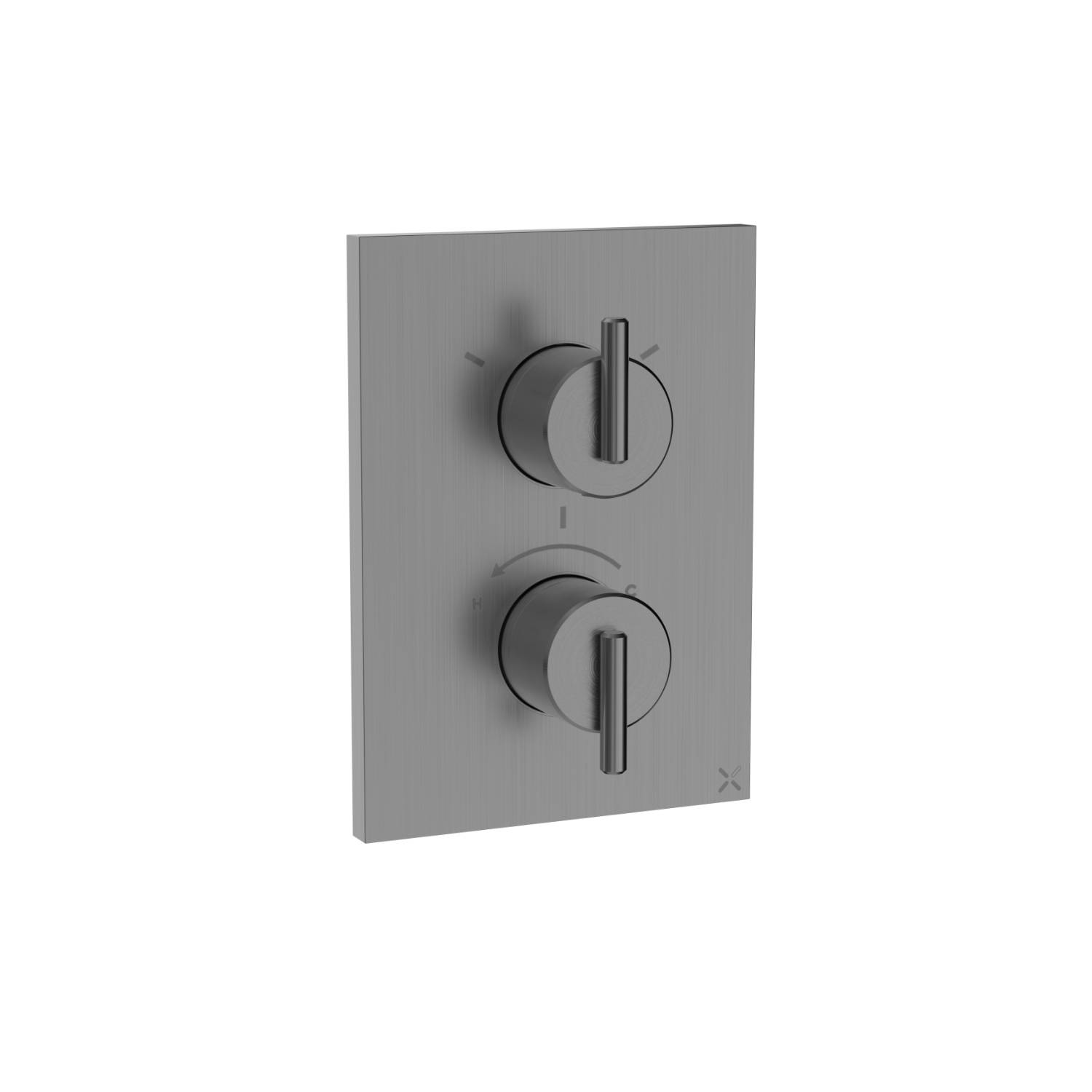

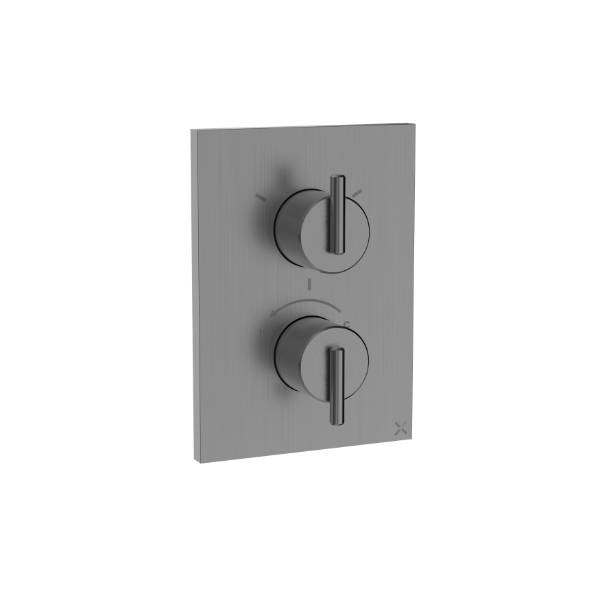

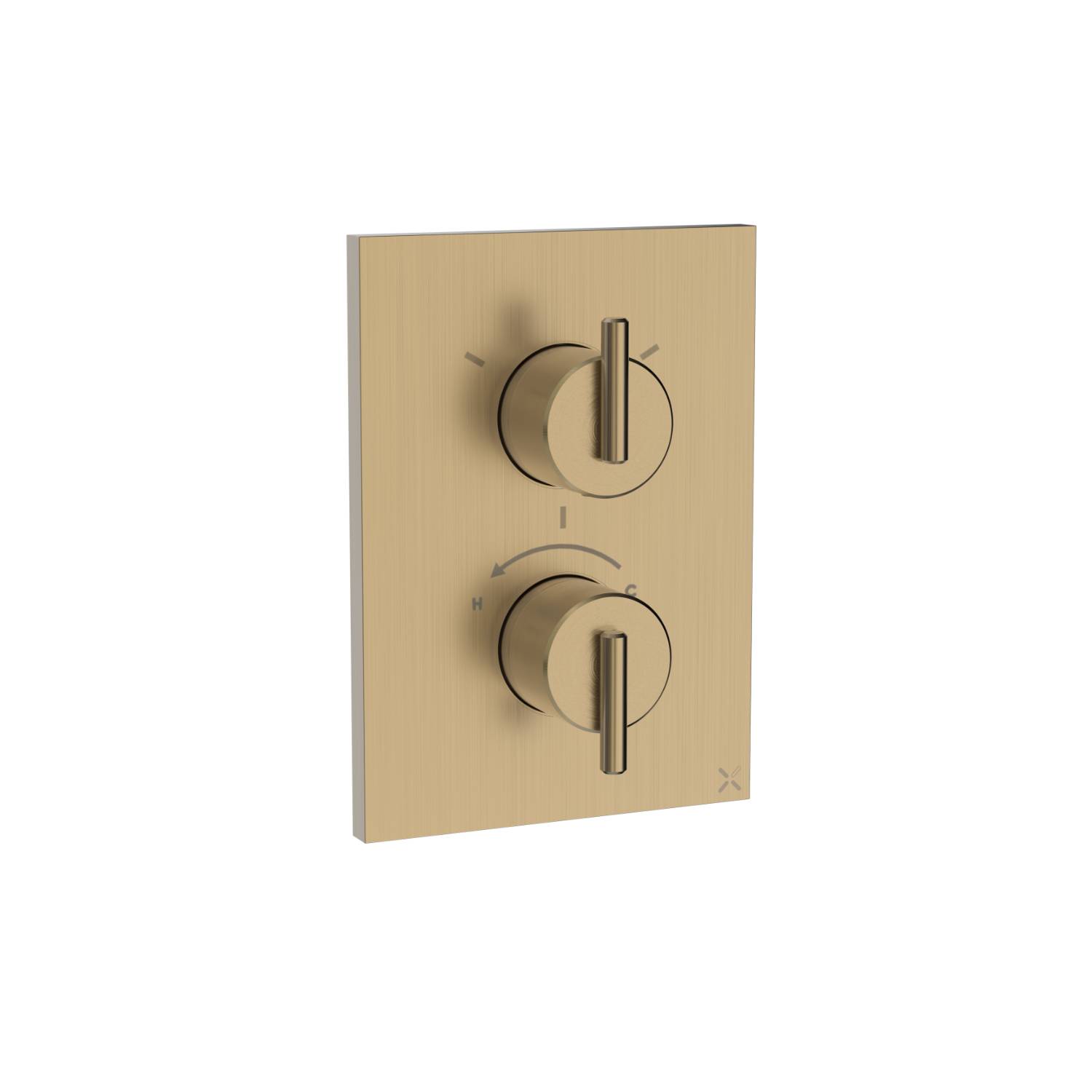

3ONE6 Crossbox Three Outlet Shower Valve - Shower Valve
Verified by manufacturer 3 months ago
TSCB2500LBPS - Stainless Steel
TSCB2500LBPS - Stainless Steel
Wall-mounted thermostatic shower valve with 3D outlet.
Application
Suitable for wall-mounting in shower areas.
Description
Crossbox trimset 3D outlet stainless steel thermostatic shower valve.
Features and benefits:
- Part of the 3ONE6 range.
- Super-slim design.
- Rectangular backplate.
- Thermostatic cartridge and flow control/s.
- Manufactured from grade 316 stainless steel.
General information
Color | Silver Gold Grey |
Finish | Brushed Brass PVD Stainless steel |
Material | Stainless steel |
Shape | Rectangle |
Width | 130 mm |
Height | 180 mm |
Warranty description | 15 year |
Uniclass | |
CAWS | N13/40 Shower units N13/375 Shower units |
Specification data - Shower thermostatic valves
Approvals | Water Regulations Approval Scheme (WRAS)-approved. |
Form | Wall-mounted thermostatic shower mixer valve. |
Materials | |
Body | Stainless steel.Guidance for specification option: Grade 316. |
Finish and colour | Stainless steel. |
Flow rate (maximum) | 26.6 L/ min at 5 bar.Guidance for specification option: With supplied restrictor. |
Integral accessories | Crossbox Universal box. |
Water pressure | HP1. |
Weight | 2.67 kg. |
Sustainability data
Country of product manufacture | Italy |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
