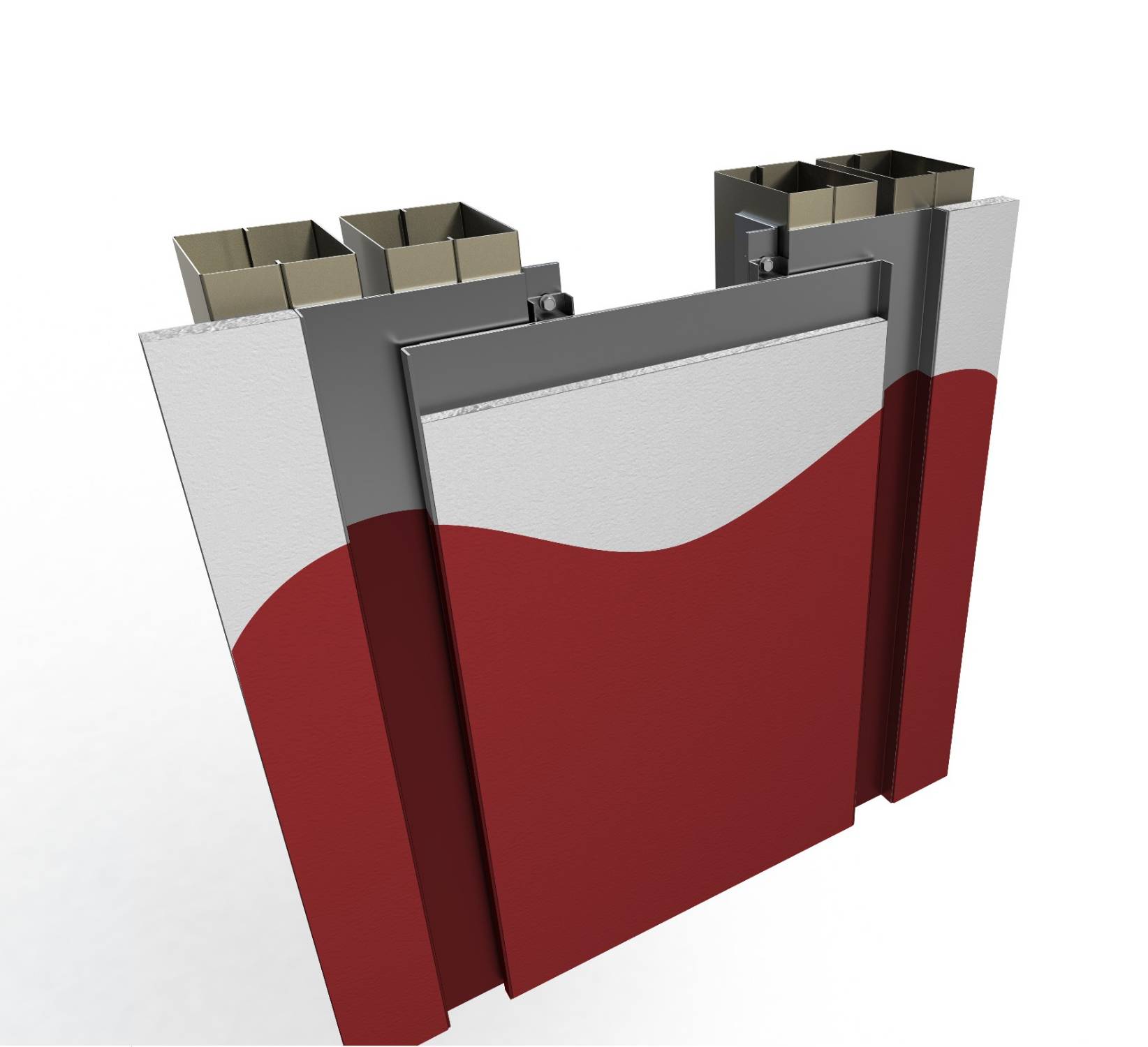

353 Recessed Mount Wall Expansion Joint System
Verified by manufacturer 4 months ago
353-A09/A18-150
353-A09/A18-150
Low popfile wall expansion joint cover that can be infilled with range of wall finishes to minimize impact to the interior design
Application
Flush mounted pan cover plate system for wall and ceiling expansion joint applications.
Description
353 recessed mount expansion joint system.
Features and benefits:
- Flush or surface mounted pan cover plate system for wall and ceiling expansion joint applications.
- Offered in both: Recessed mount (353 series) and surface (355 series).
- Ranges from small to extremely wide joint conditions, while maintaining a minimal sightline impact to the interior environment.
- Pan and frame wings can be anodized, or pre-primed to be painted in field.
- Pan options include: Flush metal cover plate (pre-primed optional), gypsum board infill, ceramic tile infill.
- System's sightline can be custom modified to match floor, system coverplate widths (upon request).
- Heavy duty security magnet system allows for generous daily thermal movement and lateral shear without disengagement from the wall.
- Cover panel disengages during seismic events; while arrest cables ensures the panel stays close to the wall, ensuring egress routes to be maintained and clear.
- No exposed hardware for security and cleanliness purposes.
- System is designed to prevent damage to surrounding walls finishes.
- System can be customized for ±100% movement.
General information
Color | Manufacturer guidanceAvailable in a range of colours. |
Finish | Anodized Primed |
Material | Aluminium |
Warranty description | Five year Guidance for specification option: Standard limited warranty against material and manufacturing defects for a period of not less than five years when installed in accordance with manufacturer’s recommendations. |
Uniclass | |
CAWS | Q21/470 Expansion joints |
Specification data - Metal section movement joints
Joint width (nominal) | 152 mm. |
Edging | |
Material | Aluminium. |
Finish | Anodized.Pre-primed.Manufacturer guidancePan and frame wings. |
Colour | Natural. |
Insert | |
Material | Flush metal cover plate.Guidance for specification option: Pre-primed optional. Gypsum board infill.Ceramic tile infill. |
Options | Not required. Fire blanket system. |
Pan height | 13 mm. |
Joint type | 353 Series Wall To Corner, Ceiling to Wall Expansion Joint System. |
Sightline | 32 mm. |
Cut-outs | 91 mm. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United States |
Country of product manufacture | United States |
Recyclability | 75% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 53 % |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
