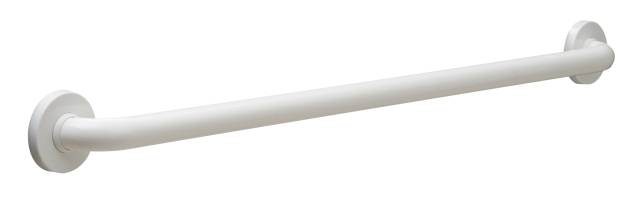

32 mm Diameter Vinyl-coated Grab Bar with Snap Flange B-580616

Description

32 mm diameter, vinyl-coated grab bar with snap flange.

Features and benefits:

  • Grab bar - zinc-plated 25 mm diameter steel tube with 3 mm thick white vinyl antibacterial, biocompatible and warm-to-the-touch coating with a glossy finish. 32 mm outside diameter. Clearance between the grab bar and wall is 38 mm.
  • Concealed mounting flange - polyamide 6 fibreglass-reinforced nylon with glossy finish. 4 mm thick end flange with four holes for attachment to the wall. The stainless steel, flat-head machine screws will sit in the conical recess of the flange.
  • Snap flange covers - polyamide 6 fibreglass-reinforced nylon with glossy finish. 3 mm thickness and 83 mm diameter.

General information

Uniclass 2015

Pr_40_20_76_84 Support railsPrimary

CAWS

N13/436 Handrails and grab bars

Specification data - Support rails

Product Reference

B-580616 x 18 32 mm

B-580616 x 24 32 mm

B-580616 x 36 32 mm

B-580616 x 42 32 mm

Standard product features

Materials:

Vinyl-coated, zinc-plated steel with glossy finish.

Dimensions (h x d):

81 x 70 mm.

Overall length:

  • B-580616 x 18: 538 mm.
  • B-580616 x 24: 690 mm.
  • B-580616 x 36: 995 mm.
  • B-580616 x 42: 1148 mm.

Load capacity:

  • B-580616 x 18: 204 kg.
  • B-580616 x 24: 204 kg.
  • B-580616 x 36: 204 kg.
  • B-580616 x 42: 150 kg.
