316 Stainless Steel Inset Medical and Laboratory Sinks

Name: 316 Stainless Steel Inset Medical and Laboratory Sinks
Brand: KWC DVS Limited
SKU: 4C3Gxf572dQwMsepxPnnyq

Verified by manufacturer over a year ago

(B50085L) 207.0000.033

505 mm wide inset sinks, grade 1.4404 (316) stainless steel with a satin polished finish.

Jump to:

Application

Inset sinks ideal laboratory and hospital settings.

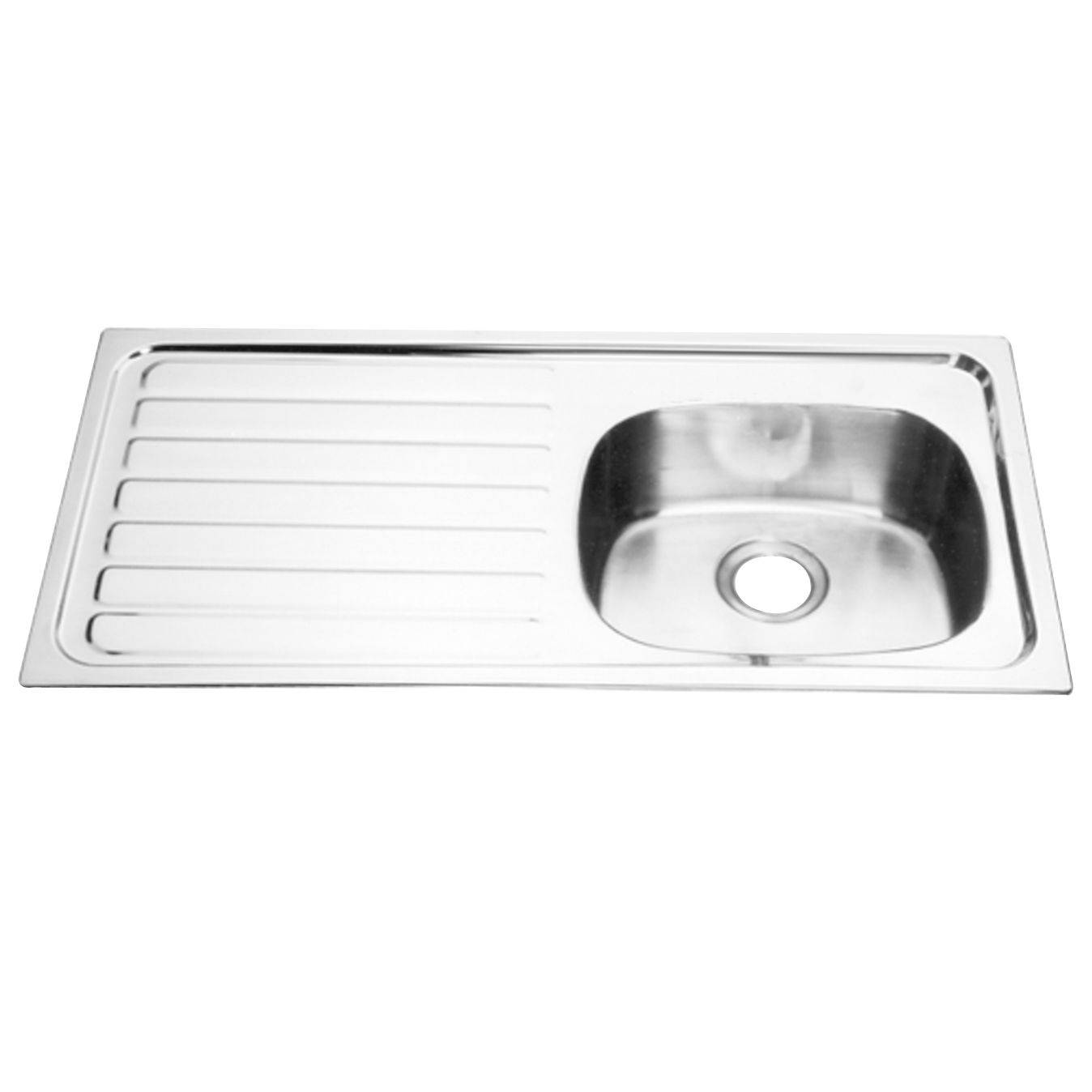

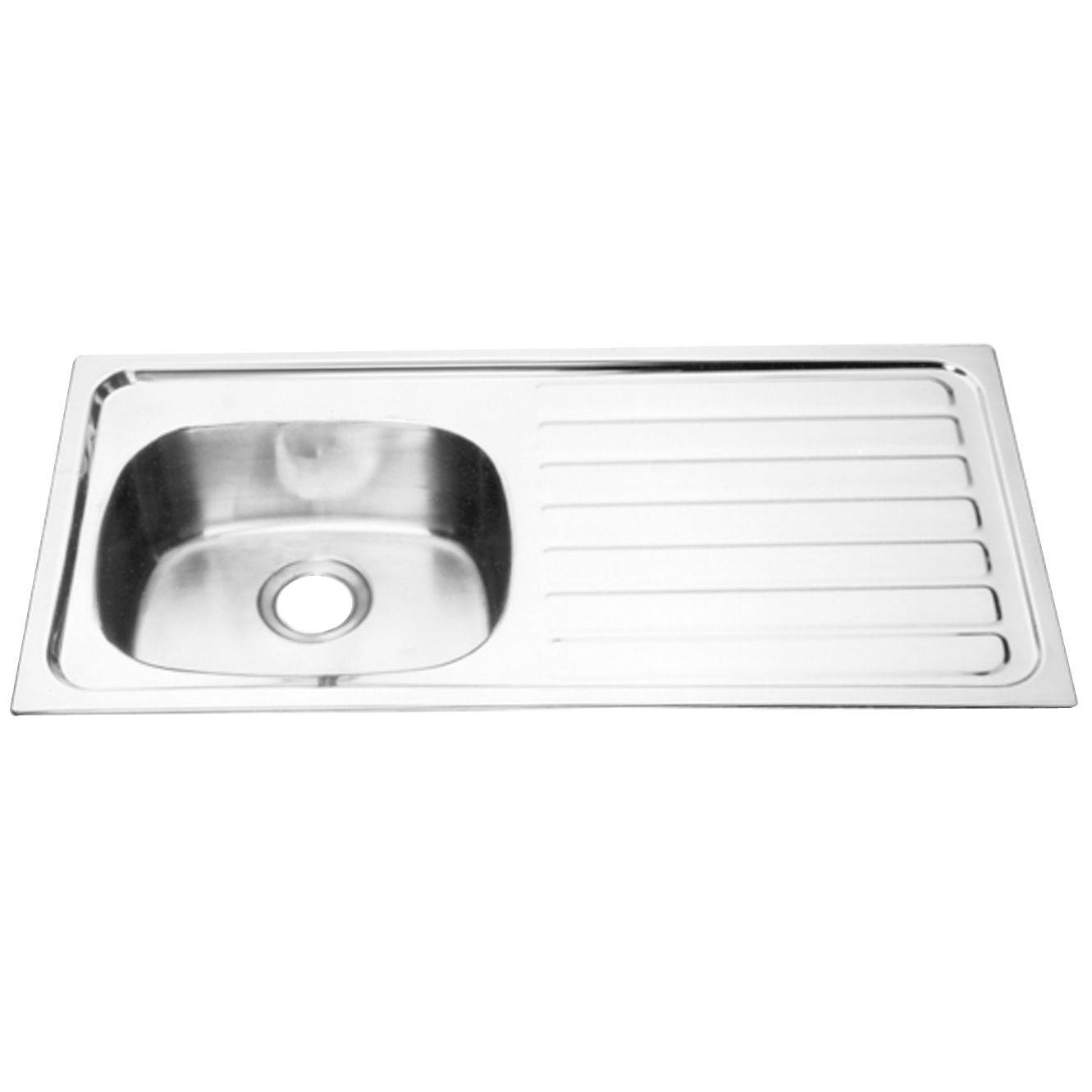

A range of 505 mm wide inset single bowl sinks with left and right hand drainers.

Features and benefits:

Manufactured from 0.9 mm thick, grade 1.4404 (316) stainless steel, satin polished finish.
Has all four sides incorporating a rimmed edge profile, suitable for insetting into a standard-sized worktop.
The bowl is prepared for a 38 mm waste and overflow, and can be supplied with waste, plug, chain and overflow as accessories.
Two tap holes are provided directly behind the sink bowl, positioned centrally, suitable for either individual pillar taps or deck pattern mixer tap.
Supplied complete with fixing clips.
NOTE: L or R refers to the handing of the drainer i.e. left or right when facing the front of unit.
Waste available separately.

Color	Silver
Finish	Satin
Material	Steel Stainless steel
Shape	Rectangle
Size	- Manufacturer guidance Bowl dimensions: 420 x 350 x 180 mm.
Length	505 mm
Width	1015 mm
Height	200 mm

Uniclass	Pr_40_20_96_81 SinksPrimary
CAWS	N13/25 Sinks N13/331 Sinks

Product range	Sinks

Form	Inset.
Bowls	One.
Drainers	One, left hand. Manufacturer guidance Single bowl, single left hand drainer inset sink without tap holes or overflow.
Materials	-
Body	Stainless steel type 1.4404 (316).
Finish and colour	Satin, silver. Guidance for specification option: Polished satin finish.
Size	1015 x 505 x 192 mm. Guidance for specification option: External dimensions. Manufacturer guidance Bowl dimensions: 420 x 350 x 180 mm.
Water supply, overflow and waste holes	-
Water supply	No tap holes. Manufacturer guidance Single bowl, single left hand drainer inset sink without tap holes or overflow.
Overflow	Overflow hole.
Waste	Prepared for a 38 mm waste (DN32).

Product Reference	(B50085L) 207.0000.033 Guidance for specification option: Single bowl, single left hand drainer inset sink without tap holes or overflow. (B50085LT) 207.0000.034 Guidance for specification option: Single bowl, single left hand drainer inset sink with tap holes at 180mm centres, without overflow. (B50085LT2) 207.0598.262 Guidance for specification option: Single bowl, single left hand drainer inset sink with tap holes at 200mm centres, without overflow. (B50085R) 207.0000.035 Guidance for specification option: Single bowl, single right hand drainer inset sink without tap holes or overflow. (B50085RT) 207.0000.036 Guidance for specification option: Single bowl, single right hand drainer inset sink with tap holes at 180mm centres, without overflow (B50085RT2) 207.0598.263 Guidance for specification option: Single bowl, single right hand drainer inset sink with tap holes at 200mm centres, without overflow Show more
Steel thickness	0.9 mm.
