300 Recessed Mount Floor Expansion Joint

Verified by manufacturer 1 month ago

300-A01-025

Inpro Variant:

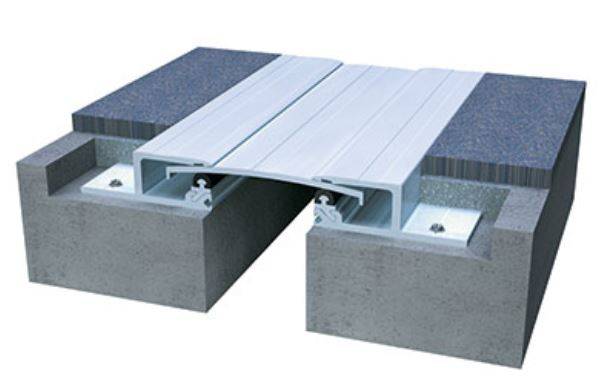

Recessed mount floor expansion joint.

Jump to:
+44(0)7399586677 Website

Application

Recess mounted expansion joint for floor/ floor and floor/ wall applications. Suitable for use with concrete, terrazzo, tile, vinyl composition tile (VCT) and carpet.

Description

Recessed mount expansion floor joint covers.


Features and benefits:

  • Patented 'no-bump' configuration.
  • Americans with Disabilities Act (ADA) compliant.
  • Gasketed to eliminate transition rattle.
  • Standard load capabilities.
  • Sheer movement is unlimited.
  • The recessed frame accommodates many floor finishes including concrete, terrazzo, tile, vinyl composition tile (VCT) and carpet.
  • Optional vapour barrier and fire rating.

General information

Shape

Rectangle

Finish

Coated

Guidance for specification option:

Polyvinylidene fluoride (PVDF) coating.

Material

Aluminium

Warranty description

Five year

Guidance for specification option:

Standard limited warranty against material and manufacturing defects for a period of not less than five years when installed in accordance with manufacturer’s recommendations.

Uniclass

Pr_35_90_53_53 Metal section movement jointsPrimary

CAWS

M10/476 Metal section movement joints

M13/375 Strip movement joints

M13/395 Metal section movement joints

M40/80 Strip movement joints

M40/825 Strip movement joints

M40/835 Metal section movement joints

M41/445 Strip movement joints

M41/465 Metal section movement joints

M50/740 Edgings and cover strips

M51/510 Edgings and cover strips

Product range

Expansion Joint Systems

Specification data - Metal section movement joints

Joint width (nominal)

25 mm.

Edging

-

Material

Aluminium.

Finish

Polyvinylidene fluoride coating.

Insert

-

Material

Aluminium.

Options

Not required.

Fire blanket.

Vapour barrier.

Joint type

Floor to floor.

Frame height

25 mm.

Sightline

83 mm.

Cut-outs

70 mm.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Recyclability

95%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

63 %
