30 W EN54-24 Horn Loudspeaker - 582432 - Horn Loudspeaker
Verified by manufacturer 3 days ago
30 W horn loudspeaker to EN 54-24.
Application
Suitable for industrial use and use in outdoor areas.
Description

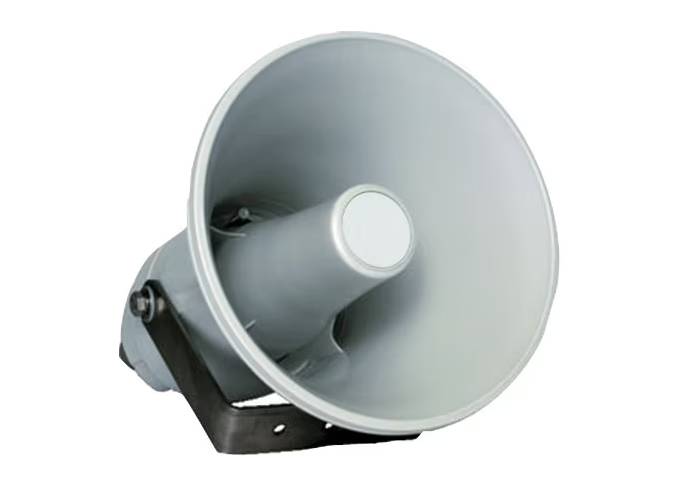

The horn loudspeaker 582432 (DK 30/T-EN 54), certified in accordance to EN 54-24, offers a high sound pressure and weather resistance and is suitable for industrial use.
Features and benefits:
- High protection class IP 66 guarantees operating reliability even under difficult environmental conditions.
- Equipped with built in ceramic terminal and a thermal fuse for increased protection.
- The impact resistant ABS housing following UL94V0 guarantees long lasting stability.
- A U shaped, stainless universal holder is included for a flexible mounting.
- The flexible power adjustment can be easily done on the back side of the loudspeaker, 30 W, 20 W, 10 W, 5 W.
- Suitable for using in outdoor areas.
- Grey in colour, similar to RAL 7035.
General information
Color | Grey |
Material | Acrylonitrile butadiene styrene (ABS) |
Shape | Other |
Length | 302 mm |
Width | 238 mm |
Height | 238 mm |
Uniclass | |
CAWS | V90/430 Electrical accessories |
SKU Code | 582432 |
Specification data - Horn voice alarm loudspeakers
Classification data | |
Standard | To BS EN 54-24. |
Rated voltage | 100 V. Guidance for specification option: Supplied with loudspeaker. |
Frequency response | 592 Hz–6.9 kHz. |
Rated power | 30 W. |
Transformer tappings | 5 W. 10 W. 20 W. 30 W. |
Dispersion | 103° @ 1 kHz. |
Sound power level (minimum) | 101.1 dB @ 1 m. Guidance for specification option: Sensitivity EN 54-24, max 1 m: 124 dB. Manufacturer guidanceSensitivity EN 54-24, 1 W / 1 m. |
Enclosure | |
Material | ABS. |
Colour | Grey. |
Ingress protection (minimum) | IP66. |
Environmental requirements | Ambient temperature -25 to +70°C. |
Dimensions | 238 mm diameter x 302 mm depth. |
Mounting method | U bracket. |
Cable connections | |
Type | Ceramic terminal block. |
Short circuit protection | Thermal fuse. |
Knock-outs | Manufacturer guidanceNo required connection via external junction box. Needs to be fitted with ceramic terminals. |
Weight | 2.25 kg. |
Integral accessories | Pre-mounted 1.0 m cable and an IP65 distribution box. |
Sustainability data
Material | Acrylonitrile butadiene styrene (ABS) |
Literature
Literature type

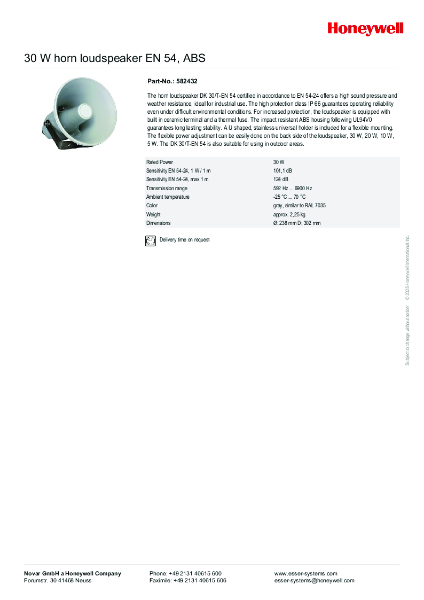

582432 30 Watt Horn Loudspeaker
VARIODYN ONE - EN54 Certified Voice Alarm Systems Brochure
