15 W EN54-24 Horn Loudspeaker - 582479 - Horn Loudspeaker
Verified by manufacturer 3 days ago
Intertek
Certificate type

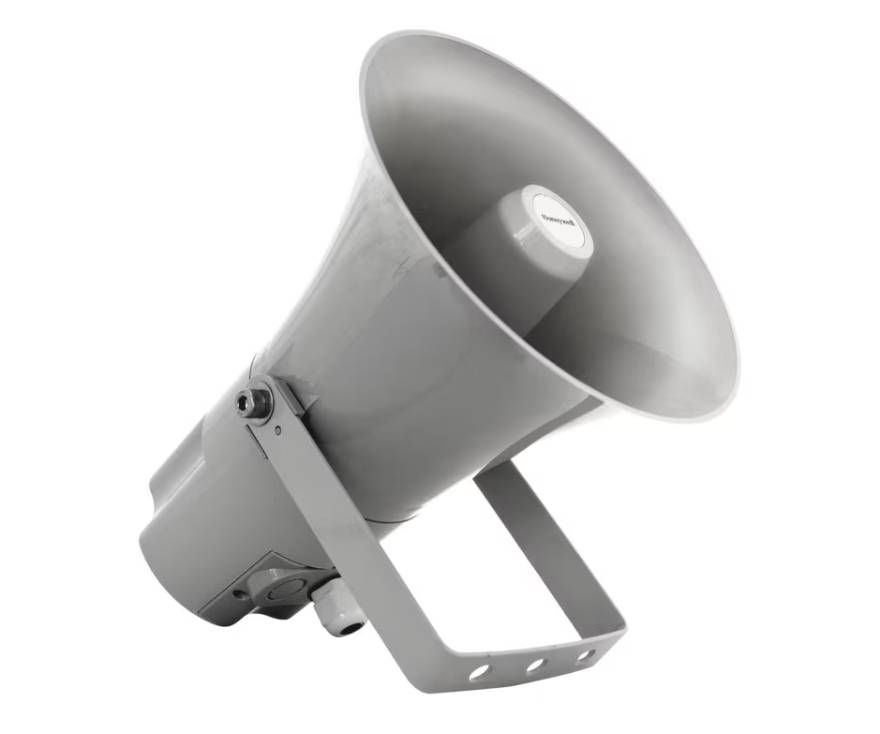

15 W horn loudspeaker to EN 54-24.
Application
Suitable for industrial use.
Description
The horn loudspeaker offers a high sound pressure and long-lasting weather resistance, suitable for use in industrial projects. The IP 66 high protection class guarantees operational safety even under the most difficult conditions.
Features and benefits:
- Impact-resistant ABS housing in light grey (similar to RAL 7035).
- Shock-resistant ABS enclosure according to UL94V0 ensures long-lasting stability.
- IP66 protection class guarantees operational safety even under the most difficult conditions.
- A U-shaped non-corrosive universal bracket is enclosed for flexible mounting.
- The cable connection is done without need for an additional junction box.
- The flexible power adjustment can be easily done with the rotary switch on the back side of the loudspeaker.
- Complies with the requirements of BS 5859 Part 8 and is certified in accordance with EN 54 Part 24.
General information
Color | Grey |
Material | Acrylonitrile butadiene styrene (ABS) |
Shape | Circle Other |
Length | 265 mm |
Width | 213 mm |
Height | 213 mm |
Uniclass | |
CAWS | V90/430 Electrical accessories |
SKU Code | 582479 |
Specification data - Horn voice alarm loudspeakers
Classification data | |
Standard | To BS EN 54-24. |
Rated voltage | 100 V. |
Frequency response | 300 Hz–16kHz. |
Rated power | 15 W. |
Transformer tappings | 15 W. 7 W. 3.75 W. |
Rated impedance | 0.667 kΩ. 1 kΩ. 2 kΩ. |
Dispersion | 124° horizontal 143° vertical @ 1 kHz. |
Sound power level (minimum) | 105 dB @ 1 m. Guidance for specification option: Sensitivity EN 54-24, max 1 m: 117 dB. Manufacturer guidanceSensitivity EN 54-24, 1 W / 1 m. |
Enclosure | |
Material | ABS. |
Colour | Grey. |
Ingress protection (minimum) | IP66. |
Environmental requirements | Ambient temperature -25 to 55°C. Storage temperature -40 to 70°C. |
Dimensions | 213 mm diameter x 265 mm depth. |
Mounting method | U bracket. |
Cable connections | |
Type | Ceramic terminal block. |
Short circuit protection | Thermal fuse. |
Knock-outs | Connection via an external junction box (should have ceramic terminal fitted). |
Weight | 2.05 kg. |
Sustainability data
Material | Acrylonitrile butadiene styrene (ABS) |
Product certifications
Intertek

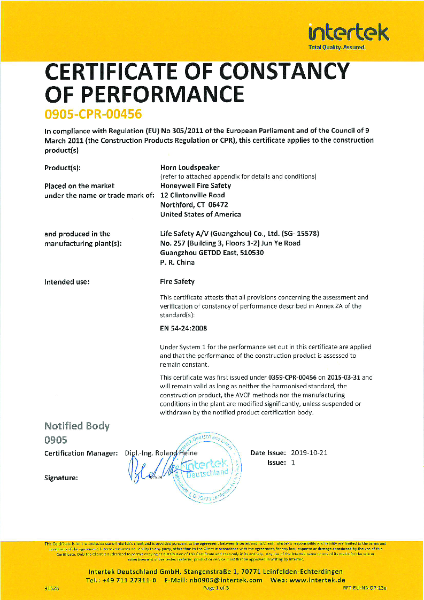

582479 EN54-24 Certificate of Conformity
Literature
Literature type

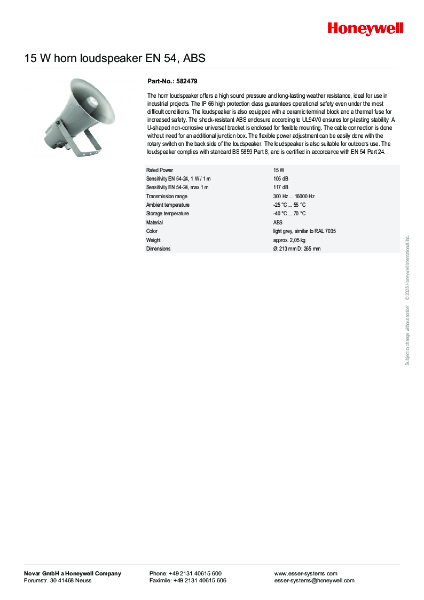

582479, 15 watt Horn Loudspeaker
VARIODYN ONE - EN54 Certified Voice Alarm Systems Brochure
