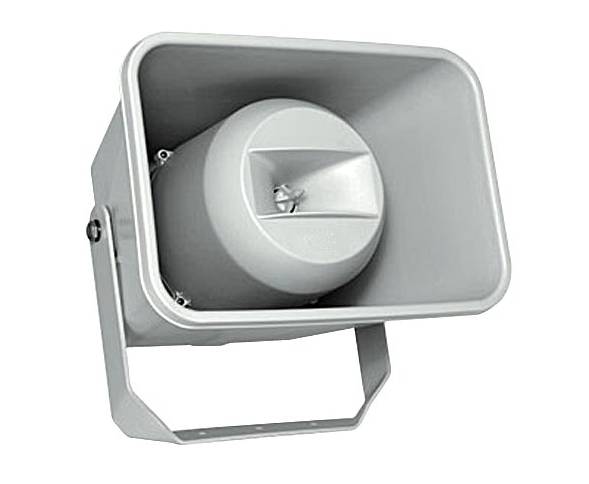

30 W 2-Way Horn Loudspeaker - 582433 - Horn Loudspeaker
Verified by manufacturer 3 days ago
30 W, two-way horn loudspeaker to EN 54.
Application
Suitable for industrial use and use in outdoor areas.
Description
The two-way music horn DK-MH 30/T plus-EN 54 with impact-resistant ABS housing and protection class IP 66, complements the series of horn loudspeaker for voice alarm. An enormous sound pressure and a convincing music quality, likewise as simple and flexible installation with stainless aluminium universal mount.
Features and benefits:
- Impact-resistant ABS housing in light grey (similar to RAL 7035).
- IP66 protection class.
- Equipped with ceramic terminal and thermal fuse.
- Stainless aluminium universal mount.
- The flexible power adjustment can be easily done on the back side of the loudspeaker, 30 W, 15 W, 7,5 W, 3,75 W.
- Suitable for using in outdoor areas.
General information
Color | Grey |
Material | Acrylonitrile butadiene styrene (ABS) Aluminium |
Shape | Rectangle |
Length | 291 mm |
Width | 370 mm |
Height | 255 mm |
Uniclass | |
CAWS | V90/430 Electrical accessories |
SKU Code | 582433 |
Specification data - Horn voice alarm loudspeakers
Classification data | |
Standard | To BS EN 54-24. |
Frequency response | 237 Hz–21.1 kHz. |
Rated power | 30 W. |
Transformer tappings | 3.75 W. 7.5 W. 15 W. 30 W. |
Dispersion | 60° horizontal 99° vertical @ 1 kHz. |
Sound power level (minimum) | 90.4 dB @ 1 m. Guidance for specification option: Sensitivity EN 54-24, max 1 m: 104.8 dB. Manufacturer guidanceSensitivity EN 54-24, 1 W / 1 m. |
Enclosure | |
Material | ABS. |
Colour | Grey. |
Ingress protection (minimum) | IP66. |
Environmental requirements | Ambient temperature -20 to +90°C. |
Dimensions | 370 x 255 x 291 mm. Manufacturer guidanceWidth x height x depth. |
Mounting method | U bracket. |
Cable connections | |
Type | Ceramic terminal block. |
Short circuit protection | Thermal fuse. |
Weight | 4.5 kg. |
Sustainability data
Material | Acrylonitrile butadiene styrene (ABS) Aluminium |
