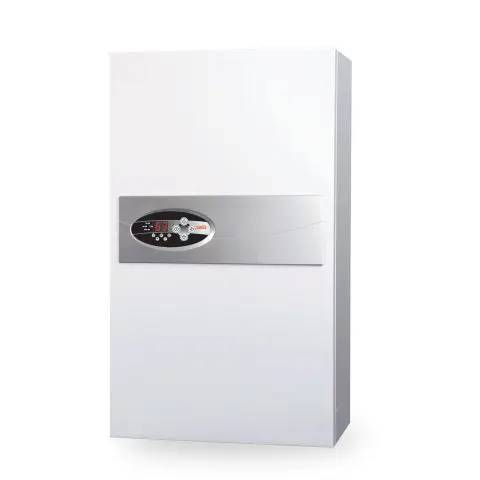

3-Phase Comet Electric Boilers - System Boiler

Verified by manufacturer 7 months ago

12 kW - EHCCOM3PH12KW

Electric Heating Co Ltd Variant:
Third party certifications:
  • UK Conformity Assessed (UKCA)

    UK Conformity Assessed (UKCA)

    Certificate type

Outputs with 3 Phase connections from 12 kW to 39 kW, designed to eliminate external plumbing and pipe work.

Jump to:
+44 (0)1698 820533 Website

Application

  • Suitable for central heating only or central heating and hot water when installed with a hot water cylinder.
  • Suitable in light commercial properties, hotels, guest houses and large properties with three phase electricity.

Description

3-Phase Comet Electric System Boilers are designed to eliminate unnecessary external plumbing and pipe work. They are a particularly suitable solution for a wet central heating system in light commercial properties, hotels, guest houses and large properties with three-phase electricity, offering an effective and efficient heating solution using conventional wet system radiators and valves.


They incorporate a six sage heat exchanger as the heat source, which ensures maximum efficiency and modulated the boiler to reduce electricity consumption and running costs. The three-phase boilers have been engineered in a variety of outputs including, 12 kW, 14.4 kW, 19 kW, 23 kW and 39 kW to cater for any situation.


Features and benefits:

  • Outputs from 12 kW to 39 kW.
  • 100% efficient.
  • Integral sealed system kit.
  • Virtually silent in operation.
  • Six stage heating.
  • Fully modulating heat exchanger.
  • Volt-free control connections.
  • Easy-fit connectors and sensors.
  • In-built fault finding diagnostics.
  • High current thermal cut-out.
  • Vortex flow temperature sensor.
  • Digital pressure gauge.
  • ErP smart pump.
  • Removable bottom tray.
  • Five year warranty T's & C's.


Elevate your home's comfort with our cutting-edge heating solutions! From efficient Electric Boilers, including Single-Phase, 3-phase and Electric Combi options, to the convenience of pre-plumbed and pre-wired Cylinders, we offer a diverse range of choices. Ensure a seamless integration into your central heating system with our Central Heating Boilers, tailored for the UK market. Enjoy the luxury of instant Hot Water with our advanced Water Heaters and Boilers. Explore the innovative technology of our Electric Heating products, including EHC solutions, designed for reliable and energy-efficient warmth. Whether you choose a pre-plumbed Cylinder for easy installation or a pre-wired option for simplified setup, our collection caters to your diverse heating needs, creating a cosy and welcoming home environment.

General information

Color

White

Finish

Gloss

Material

Stainless steel

Copper

Shape

Rectangle

Length

251 mm

Width

418 mm

Height

710 mm

Warranty description

Five year

Guidance for specification option:

Terms and conditions apply; consult manufacturer for details.

Uniclass

Pr_60_60_08_27 Electric boilersPrimary

CAWS

T90/322 Boilers, electric

Specification data - Electric boilers

Boiler type

System.

Output

12 kW.

Energy efficiency rating

D.

Mounting

Wall-mounted.

Operating pressure

0.5 bar (minimum); 3.0 bar (maximum).

Operating temperature

20℃ (minimum); 85℃ (maximum).

Heat exchanger

Stainless steel.

Electrical supply type

Three-phase.

Guidance for specification option:

415 V, 3 ph, 50 Hz.

Accessories

Not required.

Single channel programmer - EC10001.

Twin channel programmer - EC10002.

Room thermostat - EC100012.

'S' plan twin channel heat pack - EC10011.

Supreme saver hot water programmer - E10SS/7.

Shower flow sensor - ESFS15/C.

Dimensions

710 x 418 x 251 mm.

Manufacturer guidance

Overall height x width x depth.

Weight

25 kg.

Expansion Vessel Size

6.0 L.

Pipes

22 mm.

Manufacturer guidance

Flow and return pipes.

Current

3 x 17 Amp.

Manufacturer guidance

Load/ Current.

Output

40945 Btu.

Manufacturer guidance

Heating output.

Diameter

5 x 2.5 mm².

Manufacturer guidance

Recommended diameter of mains cable.

Protection

3 x 20 Amp.

Sustainability data

Contains Red List materials

No

Country of material origin

Poland

Country of product manufacture

Poland

Recyclability

Yes

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

Third party certifications

UK Conformity Assessed (UKCA)

UK Conformity Assessed (UKCA)

UKCA ELECTRIC FUSION COMET SYSTEM BOILER
