2C22

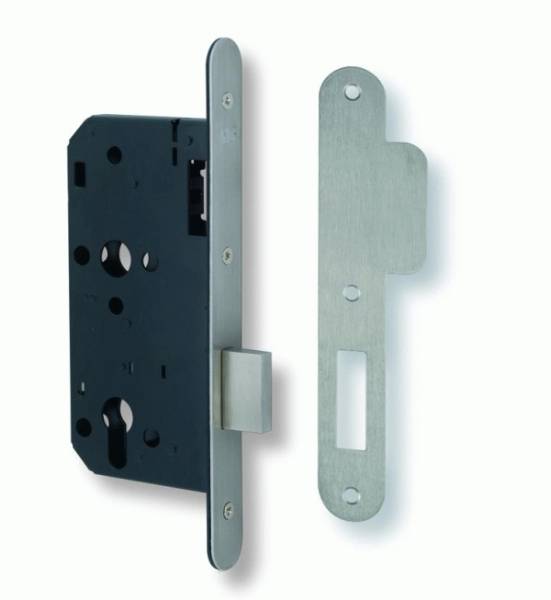

Euro profile mortice deadlock.
Application
For use on timber doors hinged on the left or right. Also suitable for steel and composite doors - special fixings required.
Description
Application:
For use on timber doors hinged on the left or right. Also suitable for steel and composite doors - special fixings required.
Operation:
- European style casing with 72 mm centres which accommodates most euro profile cylinders.
- Deadbolt locked by cylinder key or turn.
- Double throw - 20 mm deadbolt throw when key is turned twice.
- Pierced to accept security rose fixings.
Features:
- Modular case range.
- Available with radiused or square forend and strike.
Additional information for this product is available from - http://www.uniononline.co.uk/en/site/Union-Online/Products/Mechanical-Locking/Mortice-Locks/2C2-Series/
General information
Features | Modular case range Available with radiused or square forend and strike Additional information for this product is available from - http://www.uniononline.co.uk/en/site/Union-Online/Products/Mechanical-Locking/Mortice-Locks/2C2-Series/ |
Uniclass 2015 | Pr_30_36_08_24 Door latches Primary |
CAWS | P21/24 Door locks P21/515 Door locks |
Specification data - Door latches
Product Reference | Euro Profile Mortice Deadlock - 2C22 |
Type | J L2C22 RRound forend and striking plate. J L2C22 SSquare forend and striking plate. |
Outer forend | PB - Polished brassPS - Polished stainless steelSS - Stainless steel |
Standard product features | General:
|
