25/14 Restraint Channel System - Channels and Cavity Wall Ties

Verified by manufacturer 1 month ago

Vista Engineering Ltd

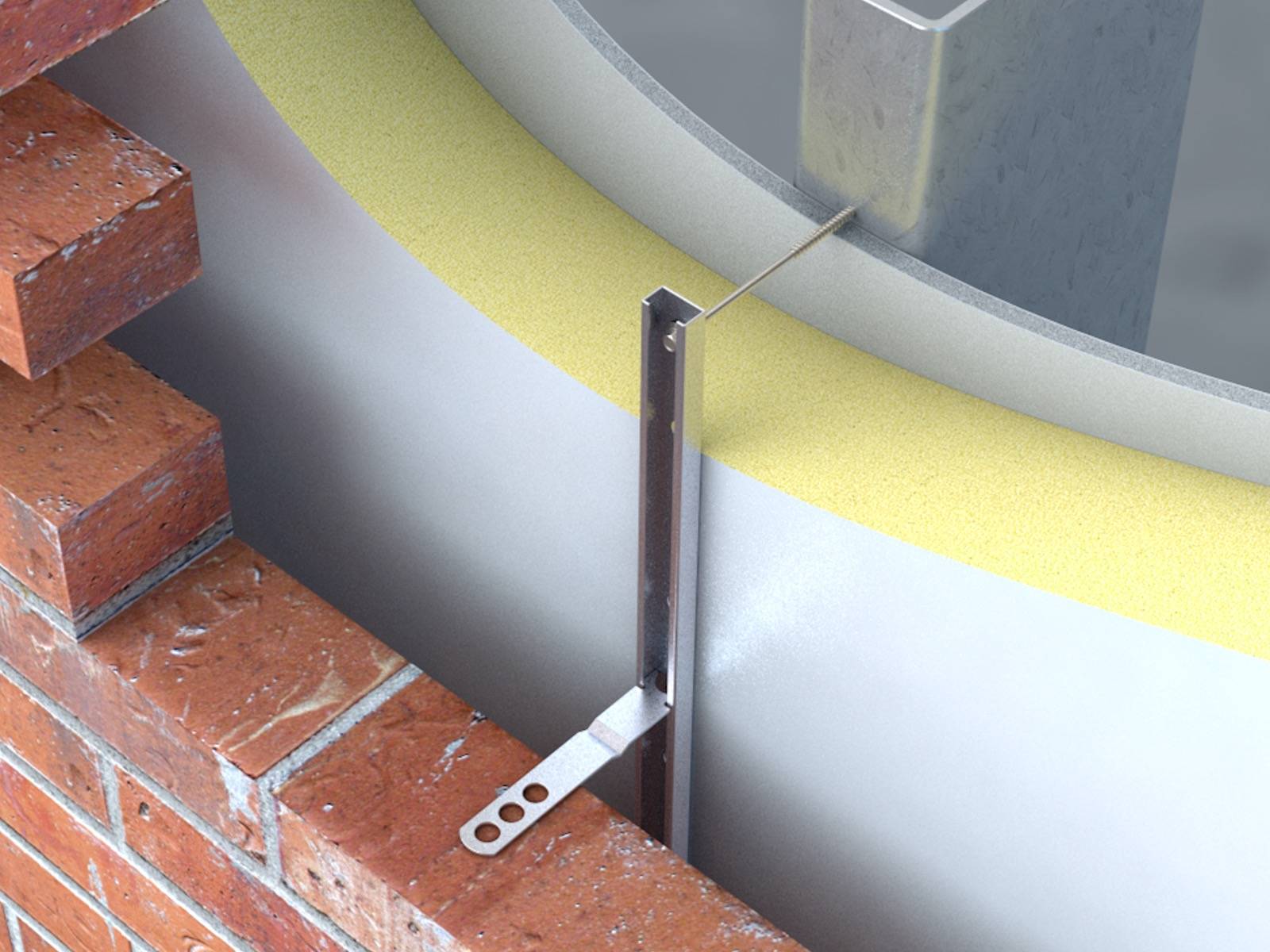

Channel system and channel ties designed to tie brickwork to steel studding, concrete or timber frame.

Jump to:
+44 (0)1663 736700 Website

Application

Ties offering vertical movement with horizontal restraint.

Suitable for tying masonry to steel frame, concrete or timber frame.

Description

Channel system and channel ties designed to tie brickwork to steel studding, concrete or timber frame.


Features and benefits:

  • Channel is non-combustible (as defined in the national Building Regulations) and has excellent corrosion resistance and a service life of not less than 60 years.
  • Manufactured from grade 304 stainless steel.

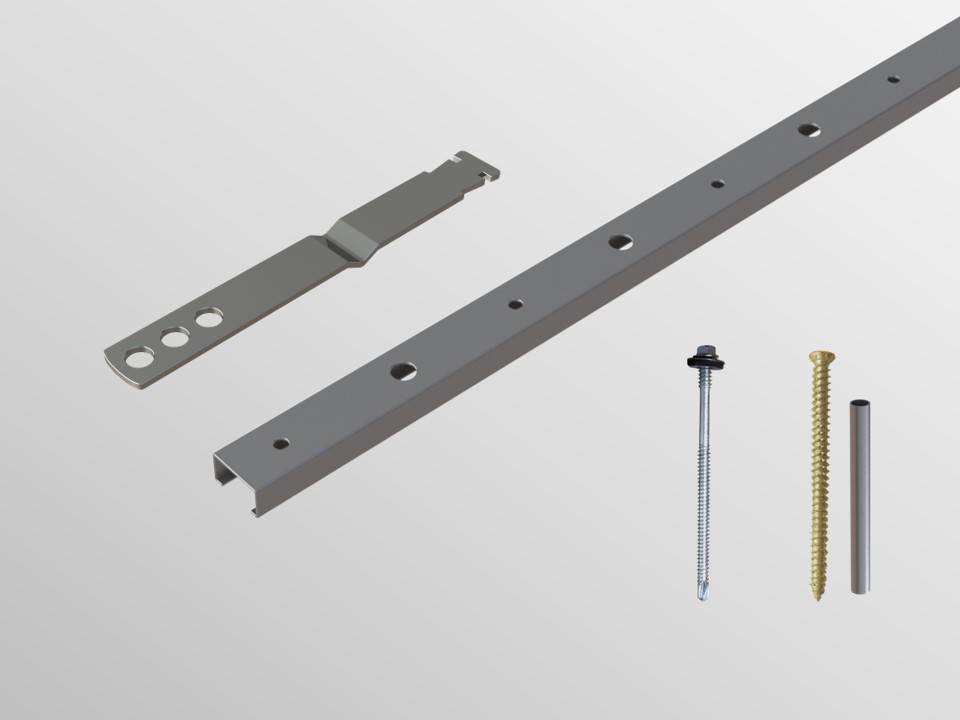

  • VS9 ties are used with the channel to tie across the cavity into the masonry bed joint. The ties can be placed at any point along the length of the channel allowing full restraint to be maintained.
  • Self-drill/ self-tap screws fix through the channel and insulation into the steel studding. The screws have an under head high thread which offers maximum support to the channel whilst preventing compression of the insulation material.
  • Self-tapping, fully-threaded screws are for use when fixing to concrete. The fasteners must be used in conjunction with a compression sleeve.

General information

Color

Silver

Material

Stainless steel

Steel

Length

2700 mm

Width

25 mm

Uniclass

Pr_20_85_84_84 Stainless steel cast-in channelsPrimary
Pr_20_85_84_19 Cavity wall ties
Pr_20_85_84_87 Surface-mounted channels

CAWS

F30/40 Surface-mounted channels/ slots

F30/242 Surface-mounted channels/ slots

F30/41 Channel/ slot ties

F30/42 Channel/ slot ties used with partial fill insulation

F30/24 Cavity wall ties

E42/320 Cast-in sockets

E42/340 Channels and slots

F30/248 Channel/ slot ties used with partial fill insulation

E42/320 Cast-in sockets

F30/214 Cavity wall ties

F30/245 Channel/ slot ties

Specification data - Stainless steel cast-in channels

Material

Stainless steel.

Designation

1.4301.

Guidance for specification option:

Grade 304.

Bolts

-

Format

SELF Self-tapping double-threaded screws.

Guidance for specification option:

Vista offer a range of self-drill screws designed for use when fixing products to steel work. The high quality self-drilling fastener is designed to give very rapid and accurate installation with precision drill points eliminating ‘skip actions’ to prevent damage to the face of the profile.

SELF Self-tapping double-threaded screws with NEO Neoprene washers.

Guidance for specification option:

Vista offer a range of self-drill screws designed for use when fixing products to steel work. The high quality self-drilling fastener is designed to give very rapid and accurate installation with precision drill points eliminating ‘skip actions’ to prevent damage to the face of the profile.

When fixing a stainless steel tie to a mild steel frame, an isolation pad should be used to separate the dissimilar metals and prevent a bimetallic reaction.

Steel grade

Manufacturer's standard.

Guidance for specification option:

Consult manufacturer's literature for recommendations and insert requirements.

Thread diameter

Guidance for specification option:

Available in a variety of lengths and thread diameters: consult manufacturer and insert requirements.

Masonry ties

VS9 Steel channel ties, 75 mm.

Guidance for specification option:

No drip.

VS9 Steel channel ties, 100 mm.

Guidance for specification option:

Drip features.

VS9 Steel channel ties, 125 mm.

Guidance for specification option:

Drip features.

VS9 Steel channel ties, 150 mm.

Guidance for specification option:

Drip features.

VS9 Steel channel ties, 175 mm.

Guidance for specification option:

Drip features.

VS9 Steel channel ties, 200 mm.

Guidance for specification option:

Drip features.

VS9 Steel channel ties, 225 mm.

Guidance for specification option:

Drip features.

VS9 Steel channel ties, 250 mm.

Guidance for specification option:

Drip features.

Manufacturer guidance

Supplied on boxes of 250.

Accessories

None.

CS compression sleeves for concrete.

Guidance for specification option:

To suit various insulation thicknesses; insert requirements, 50–200 mm.


They prevent the insulation from being compressed whilst the fasteners are being tightened. This means that no damage or distortion is caused to the insulation during fitting or in normal service loadings.

Type

SFC 25/14 Steel frame channel.

Guidance for specification option:

Designed to tie brickwork to steel studding. To be used in conjunction with a Vista VS9 tie.

Supplied in bundles of 20.

Length

2700 mm.

Fixing

SELF Self-tapping screws.

Guidance for specification option:

Vista offer a range of self-drill screws designed for use when fixing products to steel work. The high quality self-drilling fastener is designed to give very rapid and accurate installation with precision drill points eliminating ‘skip actions’ to prevent damage to the face of the profile.

SELF Self-tapping screws with NEO Neoprene washers.

Guidance for specification option:

Vista offer a range of self-drill screws designed for use when fixing products to steel work. The high quality self-drilling fastener is designed to give very rapid and accurate installation with precision drill points eliminating ‘skip actions’ to prevent damage to the face of the profile.

When fixing a stainless steel tie to a mild steel frame, an isolation pad should be used to separate the dissimilar metals and prevent a bimetallic reaction.

Not applicable.

Guidance for specification option:

For V98 Dovetail wire ties.

Manufacturer guidance

For securing ties/ tanged back channel.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Recyclability

Recyclable

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %
