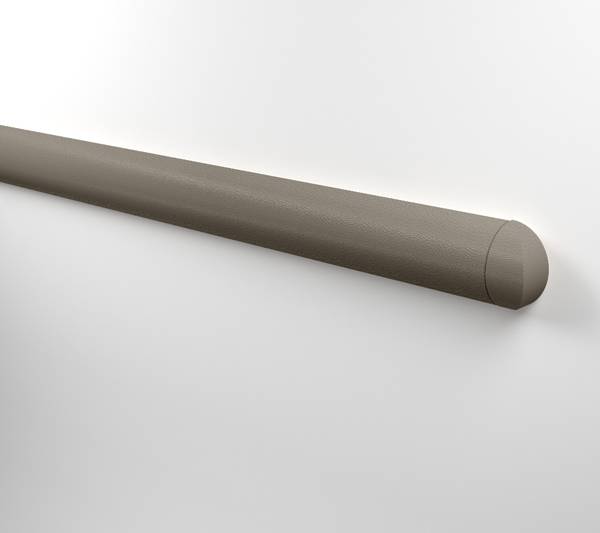

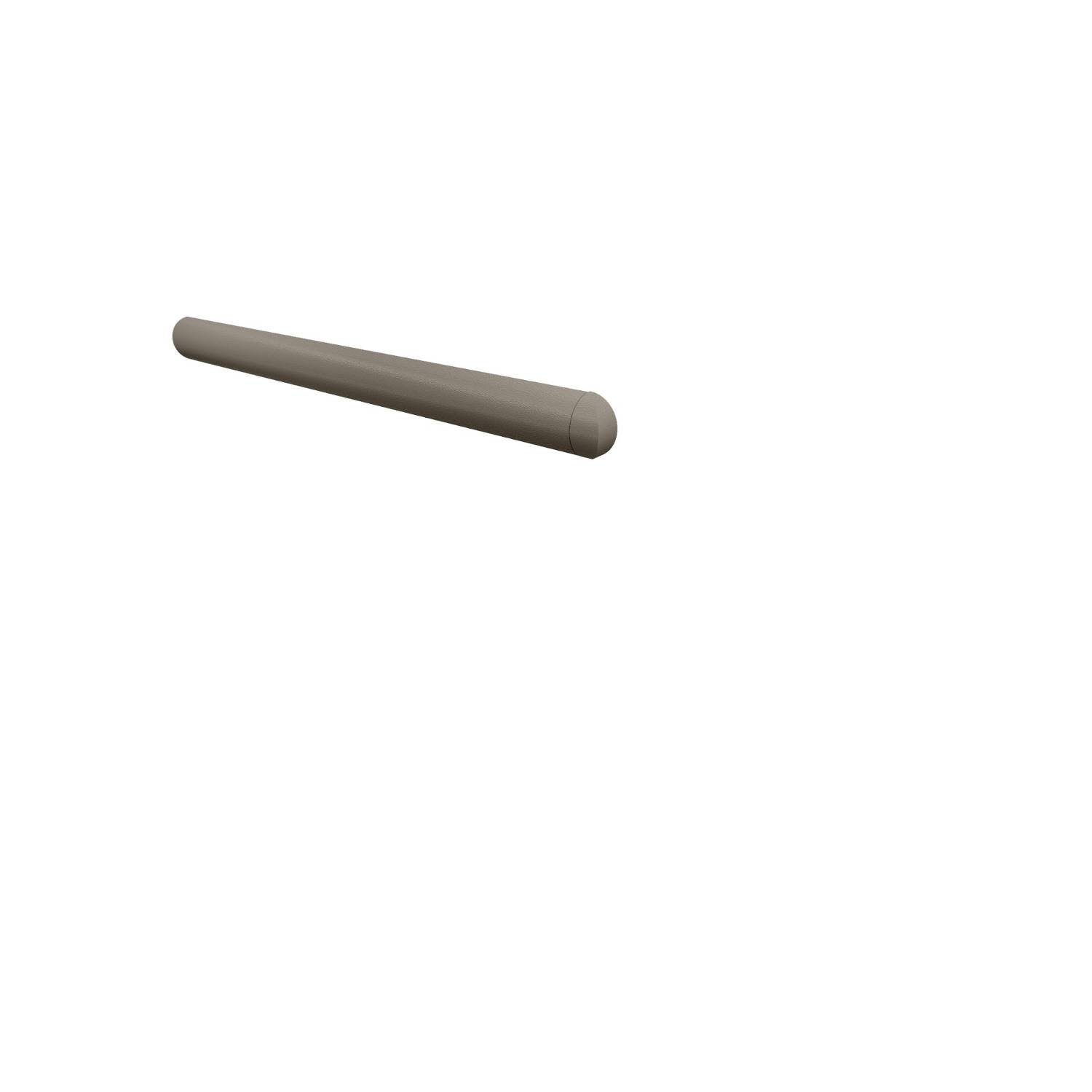

2500 Chair Rail

Verified by manufacturer 3 months ago

Inpro

The 2500 Chair Rail provides superior protection in areas where chairs leave scratches, dents and chips. (H: 51 mm).

Jump to:
07889372262 Website

Application

Suitable for use in all commercial areas for the protection of walls against chair scrapes.

Description

The 2500 chair rail provides superior protection in areas where chairs leave scratches, dents and chips. The narrow profile of this crash guard allows for the protection of precise areas of wall without having to add additional wall protection.


Features and benefits:

  • Manufactured from safe, durable and recyclable PVC-U.
  • Designed to accent lobby and office areas to provide protection on walls from chair scrapes.
  • Minimal seams due to standard 3.66 m lengths.
  • Inside and outside corners provide continuous protection.
  • Easy to install and maintain.
  • Available in a variety of colours.
  • Cost-effective.
  • Mounted onto a 1.5 mm thick aluminium retainer.
  • Contains no phthalates, halogenated fire retardants or bisphenol-a (BPA).
  • Low fossil fuel consumption.


Approvals/ certifications:

  • GREENGUARD™ Indoor Air Quality Children and Schools certified.
  • May qualify for LEED™ and Green Globes™ credits – consult manufacturer for details.
  • Fungal and bacterial resistant (to ASTM G21 and G22).
  • Good impact resistance (to ASTM F-476).


Standard components (dependent on configuration):

  • Aluminium retainer: Provides structural support for the wall guard system.
  • Splice: Allows for installations that are over 3.66 m.
  • Vinyl cover: Available in a variety of colours to coordinate with other interior finishes.
  • Inside/ outside corners: Provides a smooth transition for corner applications.
  • Reveal: Decorative element, standard with every woodland wall guard order.
  • Impact bumper: Absorbs the impact from traffic such as carts and wheelchairs.
  • End cap: Finishes the wall guard installation for a professional look.

General information

Color

-

Manufacturer guidance

Available in a range of colours.

Finish

Textured

Material

PVC-U

Aluminium

Length

3660 mm

Width

25 mm

Height

50 mm

Warranty description

Guidance for specification option:

Standard Limited lifetime warranty against material and manufacturing defects.

Uniclass

Pr_35_90_43_65 Plastics protection railsPrimary

CAWS

N10/184 Wall rails

P20/170 Proprietary

P20/30 Proprietary

Product range

Wall Guards

Specification data - Plastics protection rails

Fire rating

NFPA, class A.

Finish

-

Coating

Textured.

Colour

Aloe 1057.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 59.33.

Beeswax 0249.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 56.9.

Black 0152.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 4.5.

Buoyant Blue 0132.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 25.5.

Burlap 0252.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 43.4.

Cabernet 0241.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 7.7.

Canary 1050.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 77.77.

Cardinal 0236.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 11.2.

Castle 0256.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 10.8.

Clam Shell 0154.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 71.1.

Cloudy 1059.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 49.09.

Clover 1058.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 19.82.

Crystal Jade 0187.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 34.8.

Designer White 0101.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 78.7.

Dove Gray 0106.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 37.1.

Eggshell 0111.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 68.4.

English Green 0125.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 16.6.

Honey 1053.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 34.21.

Light Beige 0109.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 70.5.

Mandarin 1054.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 36.69.

Mint 1056.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 55.21.

Orchid 1055.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 17.36.

Periwinkle 0272.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 19.5.

Pewter Gray 0107.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 17.5.

Point Blue 0165.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 8.9.

Purple Haze 0171.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 15.8.

River Rock 0351.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 22.4

Sharkskin 0350.

Guidance for specification option:

.Standard solid colours: Light reflectance value (LRV): 42.2.

Sherbet 1052.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 51.3.

Silver 0105.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 48.1.

Sunny Day 1051.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 69.84.

Taupe 0113.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 52.0.

Truffle 0284.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 9.6.

White Sand 0103.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 77.0.

Applewood 0537.

Guidance for specification option:

Woodlands patterns (W): Light reflectance value (LRV): 30.5.

American Walnut 0555.

Guidance for specification option:

Woodlands patterns (W): Light reflectance value (LRV): 6.3.

Boston Cherry 0534.

Guidance for specification option:

Woodlands patterns (W): Light reflectance value (LRV): 9.2.

Honeynut 0535.

Guidance for specification option:

Woodlands patterns (W): Light reflectance value (LRV): 15.9.

Natural Maple 0531.

Guidance for specification option:

Woodlands patterns (W): Light reflectance value (LRV): 57.7.

Santa Rosa 0532.

Guidance for specification option:

Woodlands patterns (W): Light reflectance value (LRV): 15.9.

Size

25 x 50 mm.

Length

3.66 m.

Cover

Durable and rigid vinyl.

Guidance for specification option:

1.8 mm thickness.

Accessories/ Other requirements

Not required.

End cap (2501).

Inside corner (2503).

Outside corner (2502).

Picture frame corner (2504).

Guidance for specification option:

Available with standard solid colours only.

Retainer

1.5 mm thick aluminium.

Profile

Pebblette.

Fixing

Screws.

Sustainability data

Country of material origin

Italy

Recyclability

-

Manufacturer guidance

Recyclable.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

40 %

Guidance for specification option:

Up to 40% recycled content in aluminium retainers.

BIM objects

Platform Compatible Version
Revit

Revit 2017

1
