202 Commercial Aluminium Door - Non Thermal
Verified by manufacturer 5 months ago
The 202 Commercial Door is a non-thermally broken aluminium framing system. This modular product can incorporate automated sliding doors having being designed for entrance screens and shopfronts.
Application
Designed for entrance screens and shopfronts. It can also be used in conjunction with other TECHNAL curtain walling, windows and doors.
Description

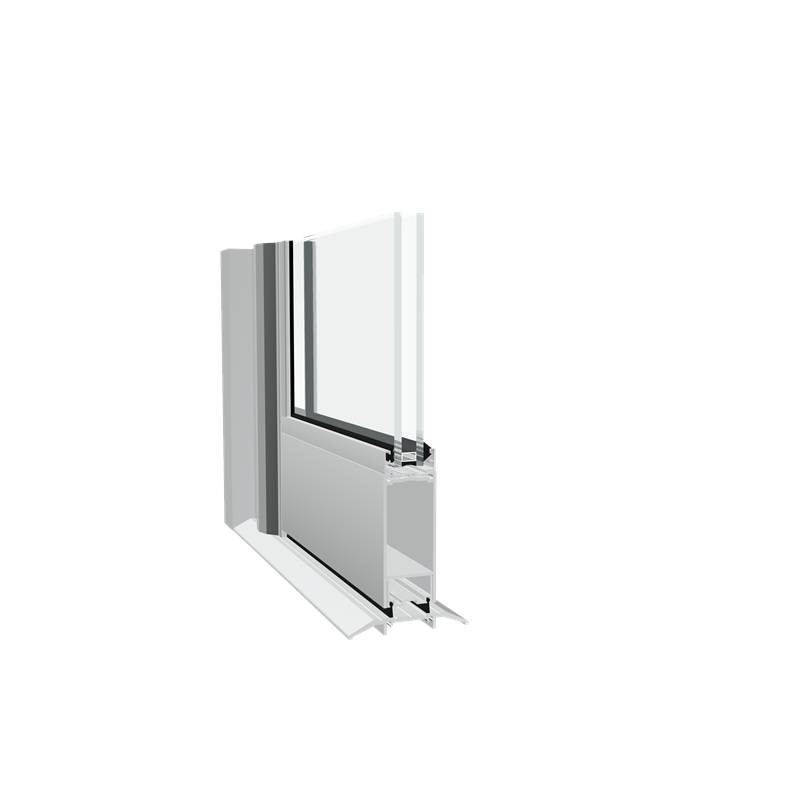

The 202 Commercial Door includes an aluminium non-thermally broken door and non-thermally broken framing. Together, they offer specifiers a choice of configurations to meet the specific demands of their clients.
Suitable for installation in new build or replacement projects in commercial or public buildings the 202 Commercial Door can be constructed to form aluminium single doors to be inserted directly into masonry, side frames or curtain walling.
System Features of the 202 aluminium door:
- Choice of pivot available including anti-finger trap stile option or rebated doors.
- Specifically designed to accept a wide range of industry standard hardware including Dorma, Axim and Adams Rite.
- Door and framing range offers a choice of configurations to meet the specific demands of clients.
Design Features of the 202 aluminium door:
- Wide choice of colours and finishes available.
- Colours and finishes can also be specified in dual-colour options.
Sustainability Information for the 202 aluminium door:
- Extruded using Hydro REDUXA - the primary aluminium alloy made with renewable materials
- Supported by a dynamic EPD to be project specific enabling the achievement of green building certifications such as LEED and BREEAM
General information
Finish | Matt Satin Gloss Metallic Anodized Manufacturer guidanceAnodized. Powder coated. |
Material | Aluminium |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | L10/56 Glazed screen system L10/560 Glazed screen system L20/280 Doors L20/45 Doors L20/520 Sliding doors |
Product range |
Specification data - Aluminium window walls
Dimensions and configurations | Sliding.Single leaf.Double leaf. |
Framing | |
Profile | |
Type | Extruded aluminium. |
Finish as delivered | |
Coating | Anodized to BS EN 3987.Powder coated satin to BS EN 12206-1:2004.Powder coated gloss to BS EN 12206-1:2004.Powder coated matt to BS EN 12206-1:2004.Powder coated metallic to BS EN 12206-1:2004. |
Colour | Manufacturer guidanceConsult manufacturer for colour details. |
Hardware | Anti finger-trap pivot hinge stiles.Automatic door operation.Closer with hold open feature.Concealed rod panic bar.DDA compliant closer with adjustable opening and closing forces.Internal thumbturn cylinder.Rebated frame with face applied closer.Shoot bolt locking. |
Doors | |
Size | As drawing.As schedule.Manufacturer guidanceScreen height. |
Glazing | Manufacturer guidance6–24 mm thick. Insert details of glass and spacer dimensions, emissivity, safety and solar control. Consult manufacturer for glazing options. |
Accessories | None.Pivot hinges.Concealed door closer.Laminated steel hook lock. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 4.0 kg CO₂ eq/kg Self declared |
Recyclability | High |
