20 W EN54-24 Unidirectional Sound Projector - 582474 - Sound Projector Loudspeaker
Verified by manufacturer 3 days ago
Intertek
Certificate type
20 W metal unidirectional sound projector to EN 54-24.
Application
Particularly suitable for use in shopping malls, airports, railway platforms, etc. in indoor and outdoor applications.
Description
This unidirectional 20 W sound projector features a broad frequency response and a high degree of efficiency. Its IP 65 protection class guarantees universal applicability indoors as well as outdoors.
Features and benefits:
- IP65 protection class.
- Modern design.
- Excellent sound quality.
- White in colour (similar to RAL 9003).
- The mounted thermal fuse as well as the ceramic terminal enable application in compliance with BS5839 Part 8.
- Complies with requirements of BS 5859 Part 8, and is certified in accordance with EN 54 Part 24.
General information
Color | White |
Finish | Powder-coated |
Material | Metal |
Shape | Circle |
Length | 195 mm |
Width | 140 mm |
Height | 140 mm |
Uniclass | |
CAWS | V90/430 Electrical accessories |
SKU Code | 582474 |
Specification data - Loudspeakers
Classification data | |
Standard | To BS EN 54-24. |
Frequency response | 150 Hz–20 kHz. |
Sensitivity | 89 dB. Guidance for specification option: Sensitivity EN 54-24, max 1 m: 102.5 dB. Manufacturer guidanceSensitivity EN 54-24, 1 W / 1 m. |
Rated impedance | 500 Ω. 1 kΩ. 2 kΩ. 4 kΩ. |
Power handling (continuous) | 20 W. |
Dispersion | 214° horizontal 219° vertical @ 1 kHz. |
Transformer tappings | 2.5 W. 5 W. 10 W. 20 W. |
Enclosure | |
Format | Sound projector. |
Ingress protection (minimum) | IP65. |
Environmental requirements | Ambient temperature -25 to 55°C. |
Material | Metal. |
Colour | White. |
Cable connections | |
Type | Ceramic terminal block. |
Protection | Thermal fuse. Manufacturer guidanceShort circuit protection. |
Dimensions | 140 mm diameter x 195 mm depth. |
Weight | 2.65 kg. |
Integral accessories | Bracket and mounting housing. |
Sustainability data
Material | Metal |
Product certifications
Intertek

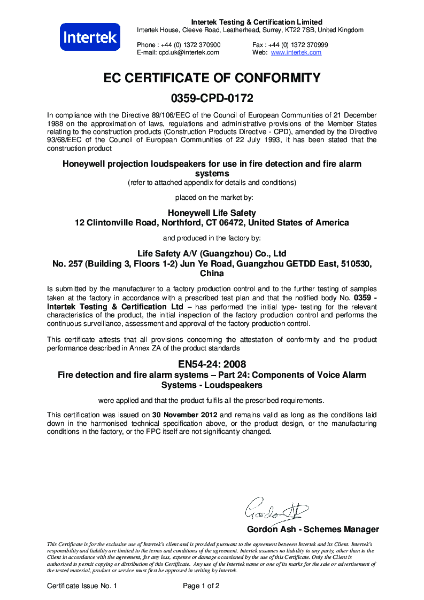

582474 20 EN54-24 Certificate of Conformity
Literature
Literature type

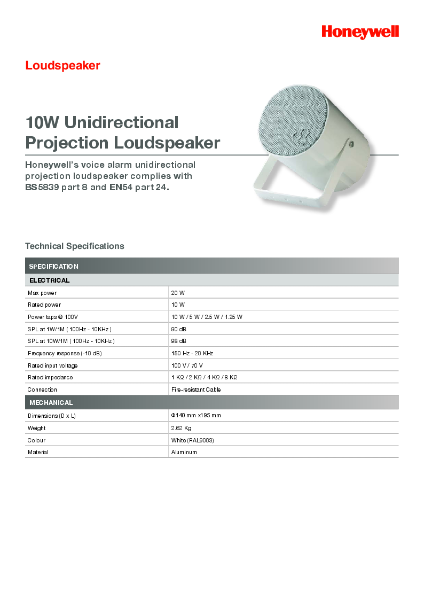

582474 20 watt Sound Projector

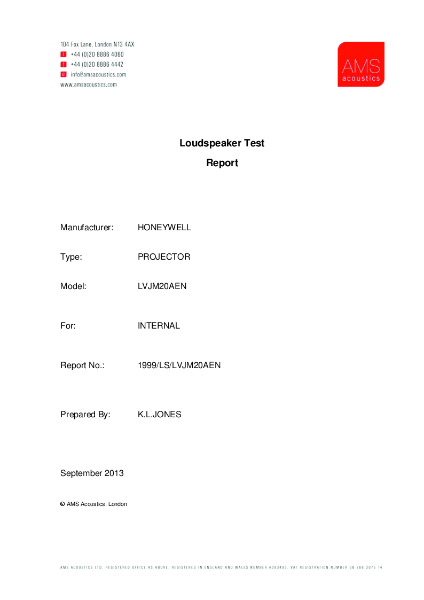

582474 AMS Acoustics Test Report
VARIODYN ONE - EN54 Certified Voice Alarm Systems Brochure
Similar products from Honeywell Voice Alarm

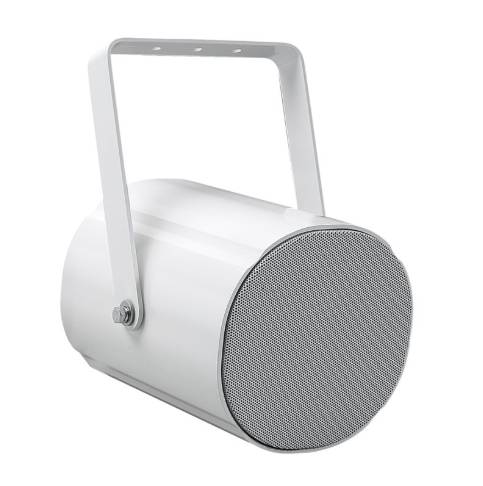

10 W EN54-24 Unidirectional Sound Projector - 582473 - Sound Projector Loudspeaker

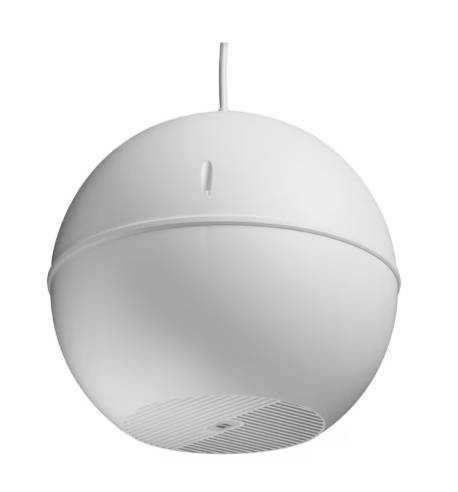

16 W EN54-24 Spherical Speaker - 582460 - Spherical Loudspeaker

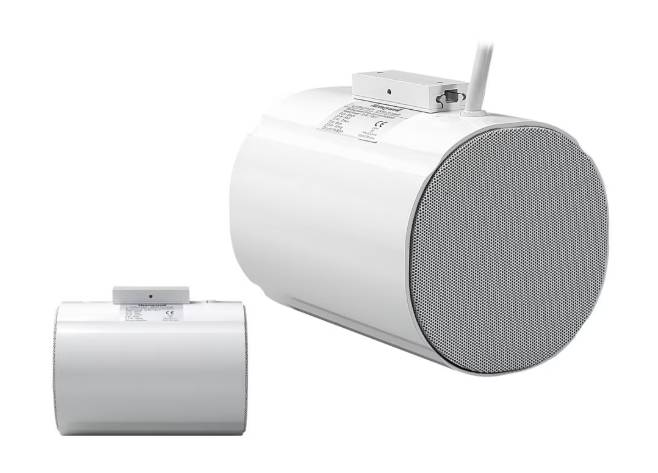

20 W EN54-24 Bidirectional Sound Projector - 582475 - Sound Projector Loudspeaker
