16 W EN54-24 Spherical Speaker - 582460 - Spherical Loudspeaker
Verified by manufacturer 3 days ago

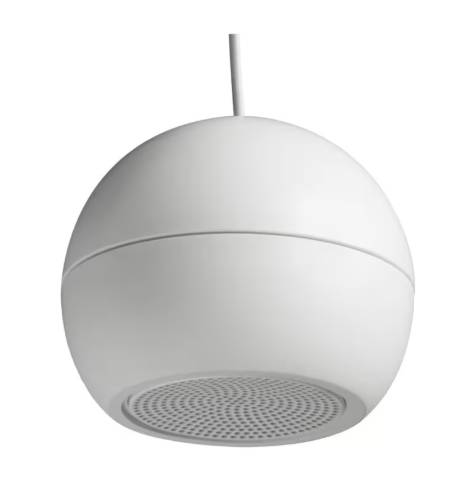

16 W spherical speaker to EN 54-24.
Application
Pendant loudspeaker suitable in applications such as warehouses, airports, retail, railway stations and areas with high ceilings where it is necessary to bring the loudspeaker closer to the listener without a ceiling structure to mount the loudspeaker
Description
The compact 582460 (DL-K 16-130/T-EN 54) is equipped with a corrosion-resistant 130 mm full range speaker chassis with ceramic terminal and thermal fuse. The 16 W high ball speaker is certified to EN 54-24 and offers a high sound pressure level and a balanced frequency response.
Features and benefits:
- Corrosion-resistant 130 mm broadband loudspeaker chassis.
- Ceramic terminal and thermal fuse.
- Manufactured from acrylonitrile butadiene styrene (ABS).
- White in colour, similar to RAL 9010.
- Complies with requirements of BS 5859 Part 8, and is certified in accordance with EN 54 Part 24-24.
General information
Color | White |
Material | Acrylonitrile butadiene styrene (ABS) |
Shape | Circle |
Length | 157 mm |
Width | 185 mm |
Height | 185 mm |
Uniclass | |
CAWS | V90/430 Electrical accessories |
SKU Code | 582460 |
Specification data - Loudspeakers
Classification data | |
Standard | To BS EN 54-24. |
Frequency response | 130 Hz–13.3 kHz. |
Sensitivity | 85 dB. Guidance for specification option: Sensitivity EN 54-24, max 1 m: 97 dB. Manufacturer guidanceSensitivity EN 54-24, 1 W / 1 m. |
Power handling (continuous) | 16 W. |
Dispersion | 196° @ 1 kHz. |
Transformer tappings | 4 W. 8 W. 16 W. |
Enclosure | |
Format | Spherical loudspeakers. |
Environmental requirements | Ambient temperature -20 to 80°C. |
Material | ABS. |
Colour | White. |
Cable connections | |
Type | Ceramic terminal block. |
Protection | Thermal fuse. Manufacturer guidanceShort circuit protection. |
Dimensions | 185 mm diameter x 157 mm depth. |
Weight | 1.5 kg. |
Integral accessories | Pre-mounted, 5-core connection cable, length 4.5 m. Canopy. |
Sustainability data
Material | Acrylonitrile butadiene styrene (ABS) |
Literature

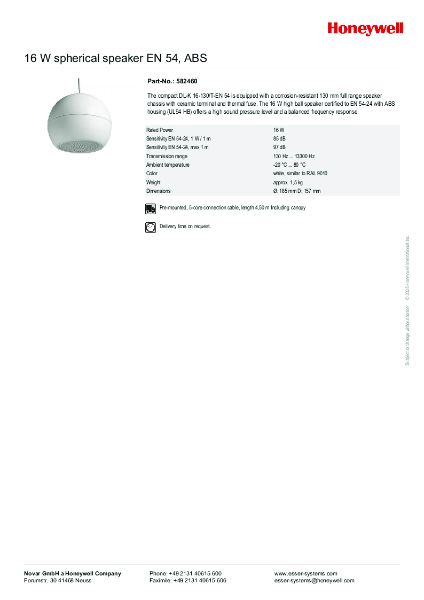

582460 16 Watt Spherical Loudspeaker EN54-24
