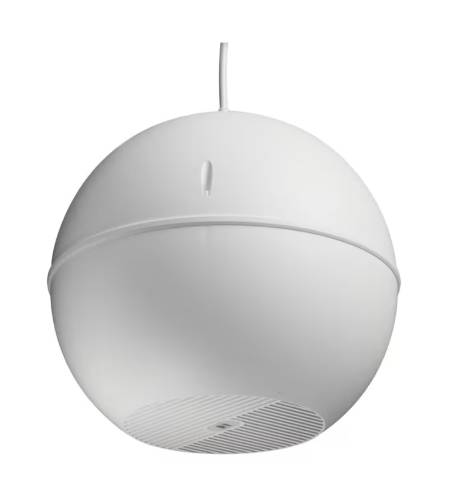

20 W EN54-24 Spherical Speaker - 582461 - Spherical Loudspeaker
Verified by manufacturer 3 days ago
20 W spherical speaker to EN 54-24.
Application
Pendant loudspeaker suitable in applications such as warehouses, airports, retail, railway stations and areas with high ceilings where it is necessary to bring the loudspeaker closer to the listener without a ceiling structure to mount the loudspeaker
Description
The 582461 (DL-54 K 20-165/T-EN) with an impact-resistant, UV-resistant ABS-housing in white (UL94 V0) features a corrosion-resistant 165-mm broadband loudspeaker chassis with ceramic terminal and thermal fuse. The spherical loudspeaker certified according to EN 54-24 meets the highest safety requirements of IP 35 (IEC 529).
Features and benefits:
- Corrosion-resistant 165-mm broadband loudspeaker chassis.
- Ceramic terminal and thermal fuse.
- The power setting of can be easily adjusted by turning the screw at the top of the ball.
- Low-resistance mode possible.
- Manufactured from acrylonitrile butadiene styrene (ABS).
- White in colour, similar to RAL 9010.
- Complies with the requirements of BS 5859 Part 8 and is certified in accordance with EN 54 Part 24.
- Meets the highest safety requirements of IP 35 (IEC 529).
General information
Color | White |
Material | Acrylonitrile butadiene styrene (ABS) |
Shape | Circle |
Length | 245 mm |
Width | 260 mm |
Height | 260 mm |
Uniclass | |
CAWS | V90/430 Electrical accessories |
SKU Code | 582461 |
Specification data - Loudspeakers
Classification data | |
Standard | To BS EN 54-24. |
Frequency response | 128 Hz–17.9 kHz. |
Sensitivity | 91.5 dB. Guidance for specification option: Sensitivity EN 54-24, max 1 m: 104.5 dB. Manufacturer guidanceSensitivity EN 54-24, 1 W / 1 m. |
Power handling (continuous) | 20 W. |
Dispersion | 163° @ 1 kHz. |
Transformer tappings | 2.5 W. 5 W. 10 W. 20 W. |
Enclosure | |
Format | Spherical loudspeakers. |
Ingress protection (minimum) | IP35. |
Environmental requirements | Ambient temperature -20 to 80°C. |
Material | UV-resistant ABS. |
Colour | White. |
Cable connections | |
Type | Ceramic terminal block. |
Protection | Thermal fuse. Manufacturer guidanceShort circuit protection. |
Dimensions | 260 mm diameter x 245 mm depth. |
Weight | 2.2 kg. |
Integral accessories | Pre-mounted, 5-core connection cable, length 4.50 m. Canopy. |
Sustainability data
Material | Acrylonitrile butadiene styrene (ABS) |
Literature
582461, 20 Watt Spherical Loudspeaker EN54-24
