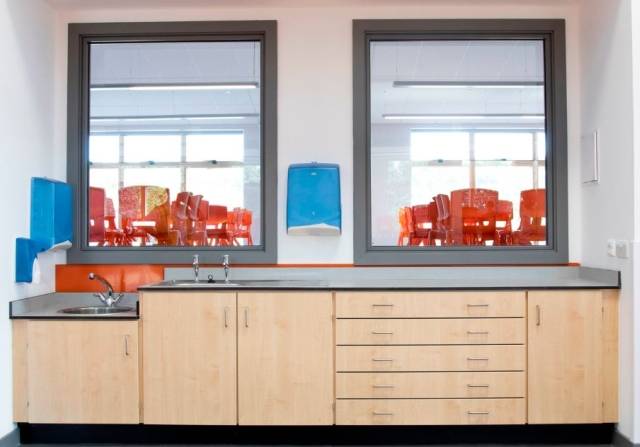

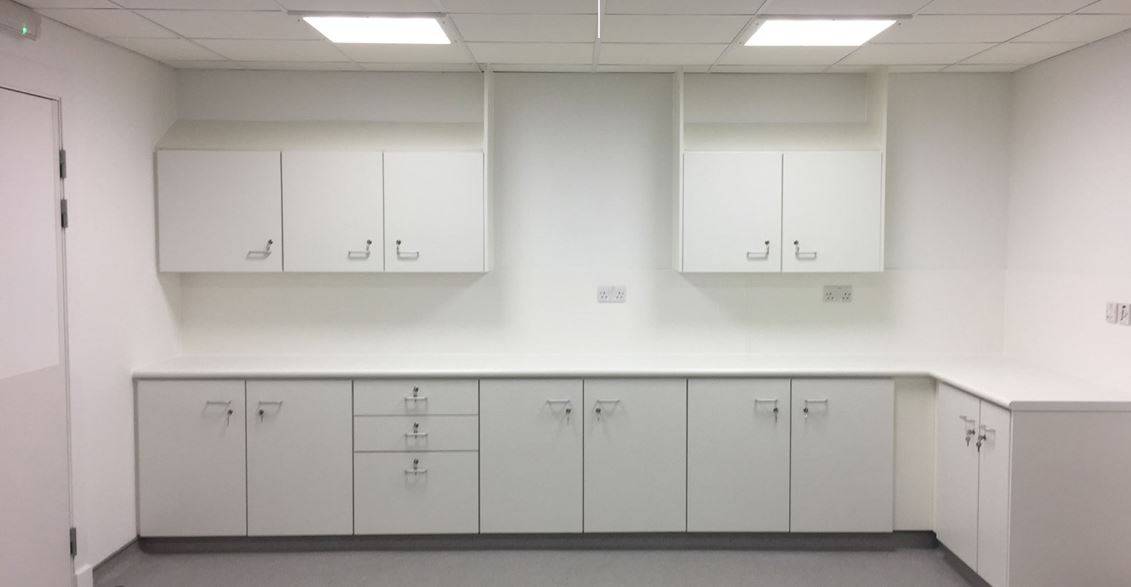

2 Door Base Unit

Application

Toilets, schools, nursery, offices, hospitals, airports.

Description

Base unit suitable for use in Healthcare applications.


Features and benefits:

  • Compatible with other products in the Nu-Style Healthcare range.
  • Supplied fully assembled with one adjustable shelf, with one lock, one handle and two hinges per door.
  • Available in a wide range of colours.

General information

Color

18 mm-thick MFC:

A selection of colours from the Swiss Krono One World Collection is available; consult literature for details.

20 mm-thick HPL:

A selection of colours from the Formica Fundamentals range is available, as well as colours by Formica and Polyrey; consult literature for details.

-

Finish

Melamine-faced

Laminate

Material

Melamine-faced chipboard

High-pressure laminate

Size

Height x width x depth.

100 x 768 x 600 mm

768 x 800 x 580 mm

Height (nominal) x width x depth (nominal).

768 x 1200 x 580 mm

Height (nominal) x width x depth (nominal).

Uniclass

Pr_40_30_87_46 Laboratory storage unitsPrimary

CAWS

N10/130 Laboratory furniture

N10/135 Storage and display units

N11/10 Fitted base units and wall units

N11/310 Fitted base units

N11/320 Fitted wall units

Specification data - Laboratory storage units Enhanced data

Form

Floor mounted cupboard units.

Dimensions

100 x 768 x 600 mm.

768 x 800 x 580 mm.

Height (nominal) x width x depth (nominal).

768 x 1200 x 580 mm.

Height (nominal) x width x depth (nominal).

Material

18 mm-thick melamine-faced chipboard (MFC).

Swiss Krono; square edged/ lipped with 2 mm-thick polyvinyl chloride (PVC).

20 mm-thick high-pressure laminate (HPL).

18 mm-thick moisture resistant medium density fibreboard (MDF) with high-pressure laminate on both sides. Square edged/ lipped with 2 mm-thick acrylonitrile butadiene styrene (ABS).

Finish

Melamine-faced.

Laminate.

Colour

18 mm-thick MFC:

A selection of colours from the Swiss Krono One World Collection is available; consult literature for details.

20 mm-thick HPL:

A selection of colours from the Formica Fundamentals range is available, as well as colours by Formica and Polyrey; consult literature for details.

-

Product Reference

2 Door Base Unit

Plinth

100 mm.

Height.

Hardware

Locks, handle: one per door.

Adjustable shelf: one per unit.



Locks, handle, hinges (two pairs), adjustable shelf.

Digital objects

Platform Compatible Version Certified to
IFC
-

1

2.1
Revit

Revit 2017

1

2.1
Download now from NBS National BIM Library
