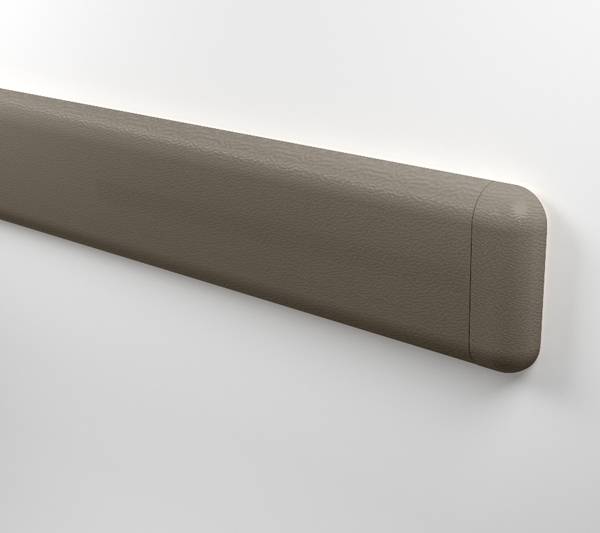

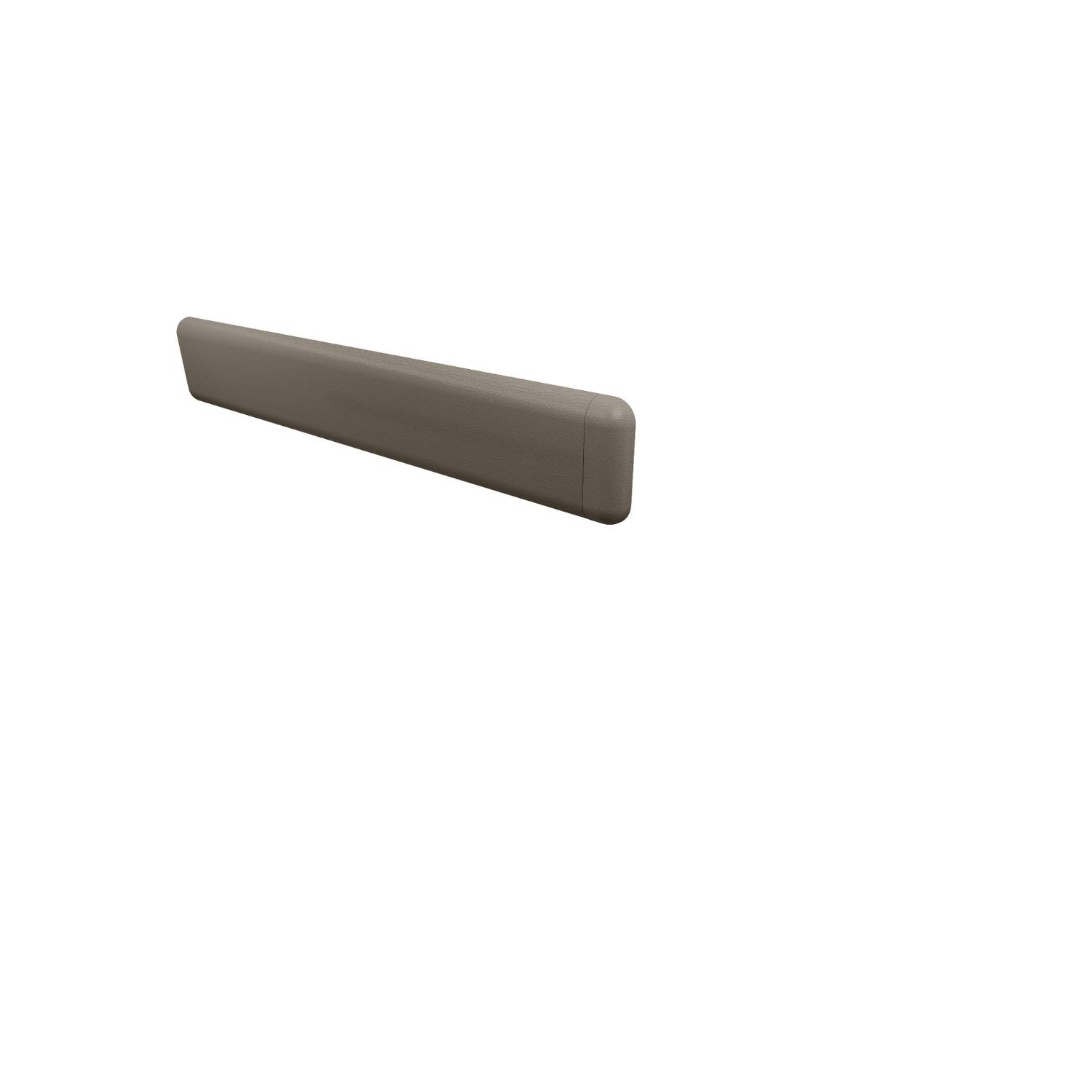

1400 Wall Guard

Verified by manufacturer 2 months ago

Inpro

The 1400 wall guard provides continuous impact protection for your walls with a mid sized profile for more precise protection. (H: 102 mm).

Jump to:
07494249485 Website

Application

Suitable for use in all commercial areas which have heavy traffic, or which may use the following equipment types:

  • Wheelchairs.
  • Hospital beds.
  • Service carts.

Description

The 1400 wall guard provides superior impact resistance from carts, luggage, beds and wheelchairs with a continuous impact bumper mounted on continuous aluminium retainer. This crash guard is mid-sized which provides a lot of impact protection without too much design interruption.


Features and benefits:

  • Manufactured from safe, durable and recyclable PVC-U.
  • Provides a decorative element, while also providing continuous impact bumper resistance to keep walls free from damage (including scratches and dents) from trolleys, luggage, beds and wheelchairs.
  • Minimal seams due to standard 3.66 m lengths.
  • Inside and outside corners provide continuous protection.
  • Easy to install and maintain.
  • Available in a variety of colours.
  • Cost-effective.
  • Mounted onto a 2 mm thick aluminium retainer.
  • Contains no phthalates, halogenated fire retardants or bisphenol-a (BPA).
  • Low fossil fuel consumption.


Approvals/ certifications:

  • GREENGUARD™ Indoor Air Quality Children and Schools certified.
  • May qualify for LEED™ and Green Globes™ credits – consult manufacturer for details.
  • Fungal and bacterial resistant (to ASTM G21 and G22).
  • Good impact resistance (to ASTM F-476).


Standard components (dependent on configuration):

  • Aluminium retainer: Provides structural support for the wall guard system.
  • Splice: Allows for installations that are over 3.66 m.
  • Vinyl cover: Available in a variety of colours to coordinate with other interior finishes.
  • Inside/ outside corners: Provides a smooth transition for corner applications.
  • Reveal: Decorative element, standard with every woodland wall guard order.
  • Impact bumper: Absorbs the impact from traffic such as carts and wheelchairs.
  • Endcap: Finishes the wall guard installation for a professional look.

General information

Shape

Rectangle

Color

-

Manufacturer guidance

Available in a range of colours.

Finish

Textured

Material

PVC-U

Guidance for specification option:

Wall guard.

Aluminium

Guidance for specification option:

Retainer.

Vinyl

Guidance for specification option:

Cover.

Warranty description

Lifetime

Guidance for specification option:

Standard Limited Lifetime Warranty against material and manufacturing defects.

Size

25 x 102 mm

Guidance for specification option:

3.66 m.

Uniclass

Pr_35_90_43_86 Wall protection panelsPrimary

CAWS

N10/184 Wall rails

P20/170 Proprietary

P20/30 Proprietary

SKU Code

unknown

Product range

Wall Guards

Specification data - Wall protection panels

Material

PVC-U.

Fire rating

NFPA, class A.

Finish

Textured.

Colour or pattern

Aloe 1057.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 59.33.

Beeswax 0249.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 56.9.

Black 0152.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 4.5.

Buoyant Blue 0132.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 25.5.

Burlap 0252.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 43.4.

Cabernet 0241.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 7.7.

Canary 1050.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 77.77.

Cardinal 0236.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 11.2.

Castle 0256.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 10.8.

Clam Shell 0154.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 71.1.

Cloudy 1059.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 49.09.

Clover 1058.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 19.82.

Crystal Jade 0187.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 34.8.

Designer White 0101.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 78.7.

Dove Gray 0106.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 37.1.

Eggshell 0111.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 68.4.

English Green 0125.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 16.6.

Honey 1053.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 34.21.

Light Beige 0109.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 70.5.

Mandarin 1054.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 36.69.

Mint 1056.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 55.21.

Orchid 1055.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 17.36.

Periwinkle 0272.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 19.5.

Pewter Gray 0107.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 17.5.

Point Blue 0165.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 8.9.

Purple Haze 0171.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 15.8.

River Rock 0351.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 22.4.

Sharkskin 0350.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 42.2.

Sherbet 1052.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 51.3.

Silver 0105.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 48.1.

Sunny Day 1051.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 69.84.

Taupe 0113.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 52.0.

Truffle 0284.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 9.6.

White Sand 0103.

Guidance for specification option:

Standard solid colours:  Light reflectance value (LRV): 77.0.

American Walnut 0555.

Guidance for specification option:

Woodlands patterns (W): Light reflectance value (LRV): 6.3.

Applewood 0537.

Guidance for specification option:

Woodlands patterns (W):  Light reflectance value (LRV): 30.5.

Boston Cherry 0534.

Guidance for specification option:

Woodlands patterns (W):  Light reflectance value (LRV): 9.2.

Honeynut 0535.

Guidance for specification option:

Woodlands patterns (W): Light reflectance value (LRV): 15.9.

Natural Maple 0531.

Guidance for specification option:

Woodlands patterns (W): Light reflectance value (LRV): 57.7.

Santa Rosa 0532.

Guidance for specification option:

Woodlands patterns (W): Light reflectance value (LRV): 37.3.

Profile

Rectangular.

Size

25 x 102 mm.

Fixing

Screws.

Retainer

Continuous bracket.

Guidance for specification option:

Consult manufacturer for details.

Infinity bracket (I).

Guidance for specification option:

Shortened aluminium retainer, easy to install in short runs.

Length

3.66 m.

Accessories/ Other requirements

Not required.

End cap (1402).

Inside corner (1407).

Outside corner (1403).

Rubber spacer (501).

Guidance for specification option:

12 mm thick, 50 mm diameter. Extends the guard further from the wall.

Cover

Rigid vinyl cover.

Guidance for specification option:

2 mm thickness, scratch and stain resistant.

Sustainability data

Country of material origin

Italy

Recyclability

-

Manufacturer guidance

Recyclable.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

40 %

Guidance for specification option:

Up to 40% recycled content in aluminium retainers.

BIM objects

Platform Compatible Version
Revit

Revit 2017

1

Similar products from Inpro

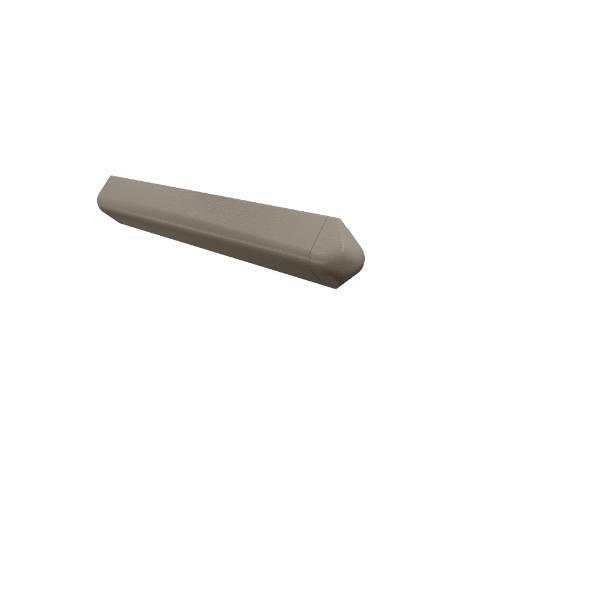

1300 Wall Guard

1300 Wall Guard

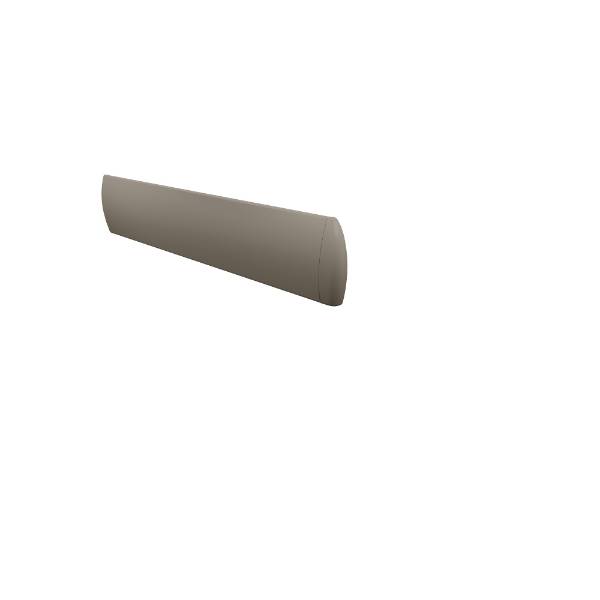

1500 Wall Guard

1500 Wall Guard

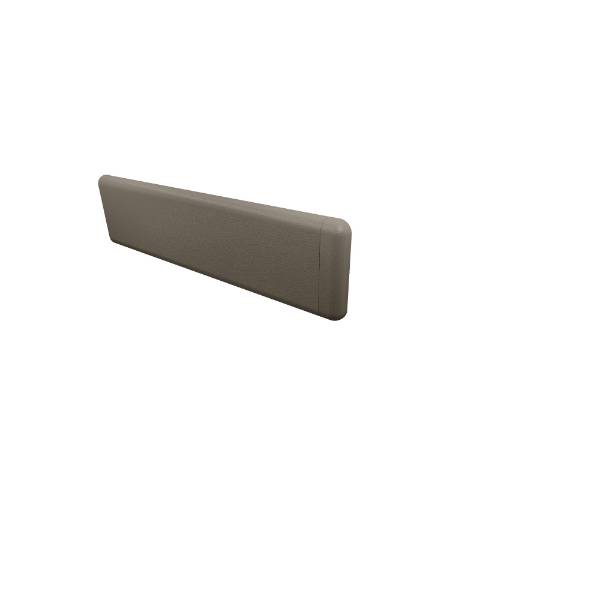

1600 Wall Guard

1600 Wall Guard

1800 Wall Guard

1800 Wall Guard

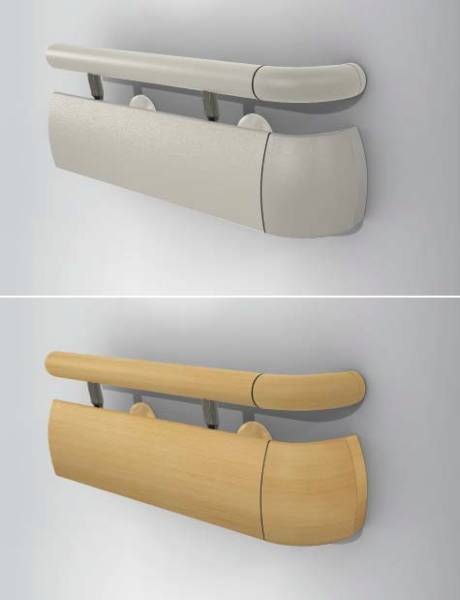

3400 Hand Rail

3400 Hand Rail

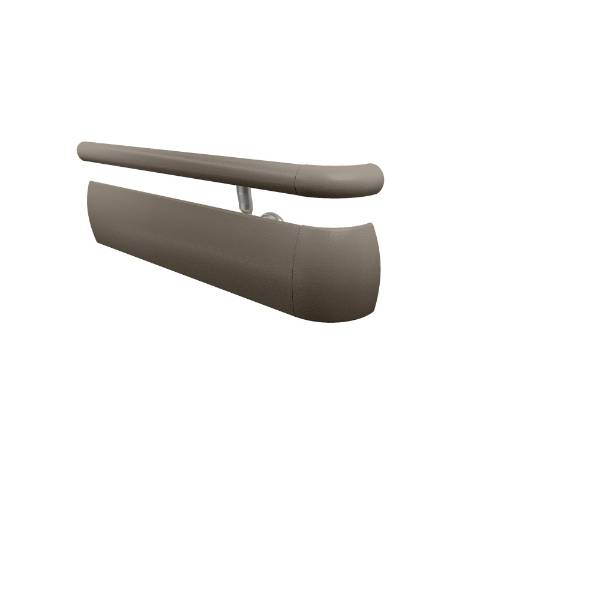

3510 Hand Rail

3510 Hand Rail

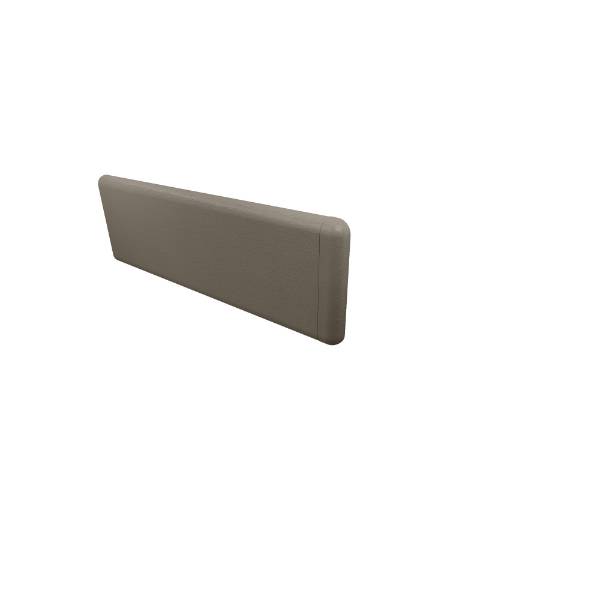

700 Wall Guard

700 Wall Guard

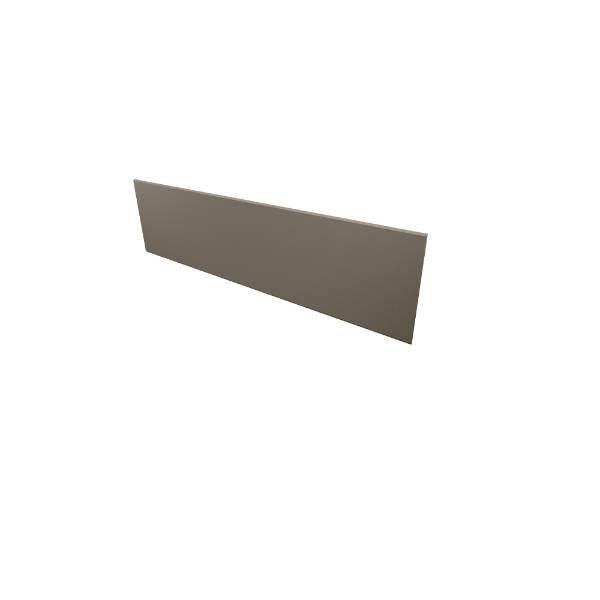

Extruded Rub Rail

Extruded Rub Rail

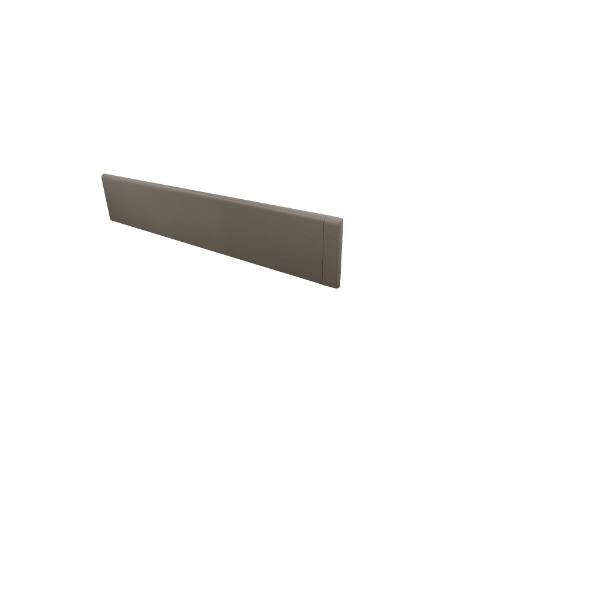

High impact wall base
