140 mm Countertop-Mounted Circular Waste Chute B-529
Verified by manufacturer 10 months ago

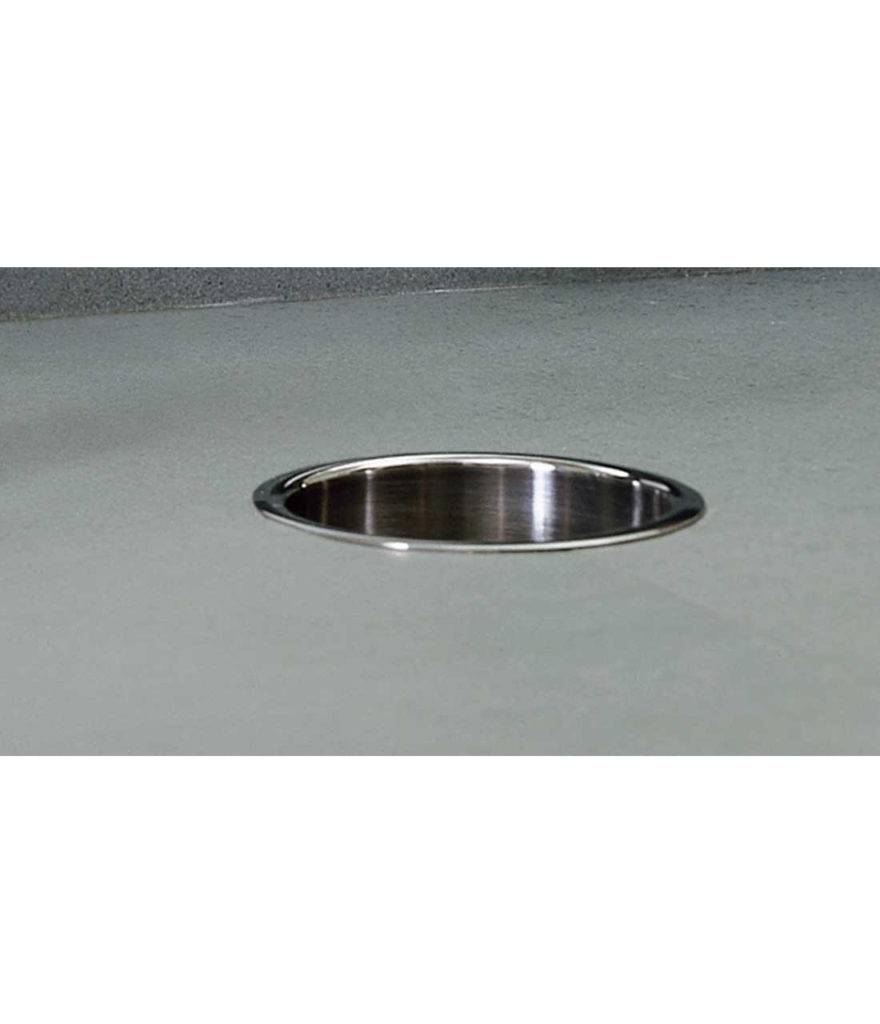

175 mm OD flange, 140 mm OD tube, countertop-mounted waste chute
Application
Countertop mounted to feed concealed bin.
Description
Features and benefits:
- Rolled flange and exposed surfaces bright-polished stainless steel.
- Outside diameter 6 15/16" (175 mm), inside diameter 5 1/2" (140 mm), chute depth 5" (130 mm).
- Rough Countertop Cut-out: 5 5/8" diameter (140 mm).
- Provides waste deposit access to receptacle (not furnished) placed under countertop.
General information
Color | Silver |
Finish | Polished |
Material | Stainless steel |
Shape | Circle |
Length | 175 mm |
Width | 175 mm |
Height | 130 mm |
Warranty description | One year Guidance for specification option: Bobrick washroom accessories are warranted to be free from defects in workmanship and material under normal usage service for one year from the date of purchase. (Refer to Bobrick Advisory Bulletin TB-21, Effective Ways to Clean Stainless Steel.) |
Uniclass | |
CAWS | N13/474 Waste bins |
Specification data - Waste bins
Form | Countertop mounted chute. |
Materials | Stainless steel. |
Finish and colour | Bright polished. |
Size | 175 x 175 x 130 mm.Guidance for specification option: 140mm OD tube. |
Sustainability data
Country of material origin | China |
Recyclability | Manufacturer guidanceMetals widely recycled |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature

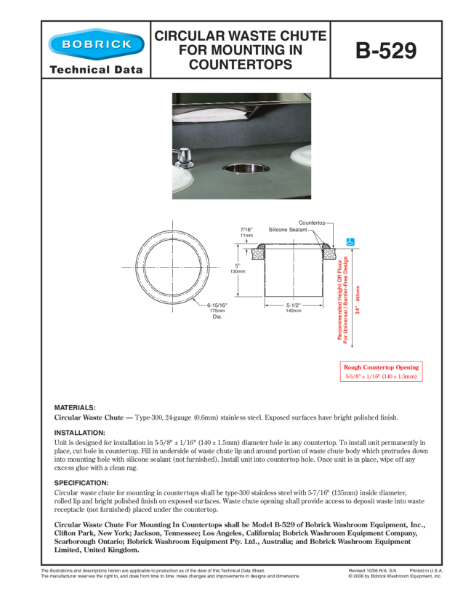

Circular Waste Chute for Mounting in Countertops - B-529
Advisory Bulletin TB-21 Stainless Steel Cleaning and Maintenance
Washroom Accessories
TB-88 Advisory Bulletin
