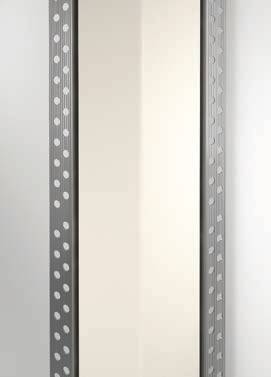

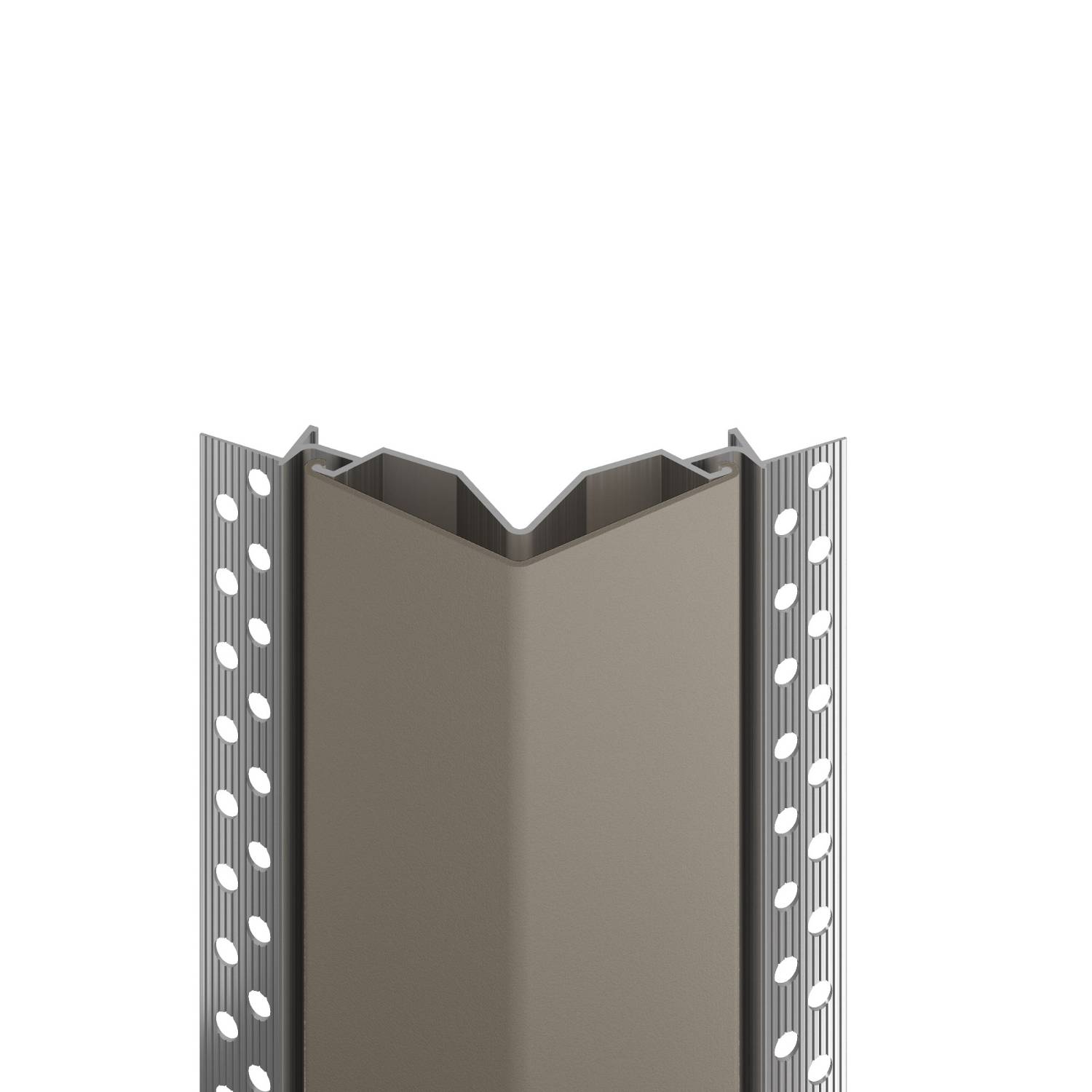

The 130 flush mount corner guard protects the most vulnerable areas of your walls from dings and scrapes - 135°, 76mm wing.
Suitable for use in all commercial areas where damage protection is required.
The 130 flush mount corner guard protects the most vulnerable areas of walls from scrapes and other damage. The flush mount design helps this system blend seamlessly into the wall design during new construction.
Included:
Features and benefits:
Approvals/ certifications:
ColorAvailable in a range of colours, consult manufacturer. | - |
Finish | Textured Pebblette |
Material | PVC-U Corner guard. Aluminium Retainer. Vinyl Cover. |
WarrantyDescription | Lifetime Standard Limited lifetime warranty against material and manufacturing defects. |
Uniclass | |
CAWS | N10/184 Wall rails P20/170 Proprietary P20/30 Proprietary |
Product range |
Material | PVC-U. |
Fire rating | NFPA, class A. |
Finish | - |
Colour | Beeswax 0249.Standard solid colours: Light reflectance value (LRV): 56.9. Black 0152.Standard solid colours: Light reflectance value (LRV): 4.5.
Buoyant Blue 0132.Standard solid colours: Light reflectance value (LRV): 25.5. Burlap 0252.Standard solid colours: Light reflectance value (LRV): 43.4.
Cabernet 0241.Standard solid colours: Light reflectance value (LRV): 7.7. Cardinal 0236.Standard solid colours: Light reflectance value (LRV): 7.7. Canary 1050.Standard solid colours: Light reflectance value (LRV): 77.77. Castle 0256.Standard solid colours: Light reflectance value (LRV): 10.8. Clam Shell 0154.Standard solid colours: Light reflectance value (LRV): 71.1. Cloudy 1059.Standard solid colours: Light reflectance value (LRV): 49.09. Clover 1058.Standard solid colours: Light reflectance value (LRV): 19.82. Crystal Jade 0187.Standard solid colours: Light reflectance value (LRV): 34.8. Designer White 0101.Standard solid colours: Light reflectance value (LRV): 78.7. Dove Gray 0106.Standard solid colours: Light reflectance value (LRV): 37.1. English Green 0125.Standard solid colours: Light reflectance value (LRV): 16.6. Honey 1053.Standard solid colours: Light reflectance value (LRV): 34.21. Light Beige 0109.Standard solid colours: Light reflectance value (LRV): 70.5. Mandarin 1054.Standard solid colours: Light reflectance value (LRV): 36.69. Mint 1056.Standard solid colours: Light reflectance value (LRV): 55.21. Orchid 1055.Standard solid colours: Light reflectance value (LRV): 17.36. Periwinkle 0272.Standard solid colours: Light reflectance value (LRV): 19.5. Pewter Gray 0107.Standard solid colours: Light reflectance value (LRV): 17.5. Point Blue 0165.Standard solid colours: Light reflectance value (LRV): 8.9. Purple Haze 0171.Standard solid colours: Light reflectance value (LRV): 15.8. River Rock 0351.Standard solid colours: Light reflectance value (LRV): 22.4. Sharkskin 0350.Standard solid colours: Light reflectance value (LRV): 42.2. Sherbet 1052.Standard solid colours: Light reflectance value (LRV): 51.3. Silver 0105.Standard solid colours: Light reflectance value (LRV): 48.1. Taupe 0113.Standard solid colours: Light reflectance value (LRV): 52.0. Truffle 0284.Standard solid colours: Light reflectance value (LRV): 9.6. White Sand 0103.Standard solid colours: Light reflectance value (LRV): 77.0. American Walnut 0555.Woodlands patterns (W): Light reflectance value (LRV): 6.3. Applewood 0537.Woodlands patterns (W): Light reflectance value (LRV): 30.5. Boston Cherry 0534.Woodlands patterns (W): Light reflectance value (LRV): 9.2. Honeynut 0535.Woodlands patterns (W): Light reflectance value (LRV): 15.9. Natural Maple 0531.Woodlands patterns (W): Light reflectance value (LRV): 57.7. Santa Rosa 0532.Woodlands patterns (W): Light reflectance value (LRV): 37.3. |
Texture | Pebblette. |
Size | 76 mm.Wings, both side. |
Fixing | Screws. |
Accessories/ Other requirements | Not required. 1.2 m cove base retainer (130B-4). For easy wrapping around corners. 1.8 m cove base retainer (130B-6). For easy wrapping around corners. Custom bendable aluminium retainer. With flexible top caps and pre-slotted holes. Consult manufacturer for details. Closure cap (130F-Cap). Helps to achieve a finished look for installations which are less than ceiling height. |
Angle | 135°. |
Height | 1.2 m. |
Cover | Scratch and stain resistant rigid vinyl. 2 mm thickness. |
Retainer | 1.8 mm continuous aluminium retainer. |
Country of material origin | Italy |
RecyclabilityRecyclable. | - |
Recycled content | 40 % Up to 40% recycled content in aluminium retainers. |
