12W COB LED Recessed Spot IP65 10112TP - Spotlight
Verified by manufacturer 7 months ago

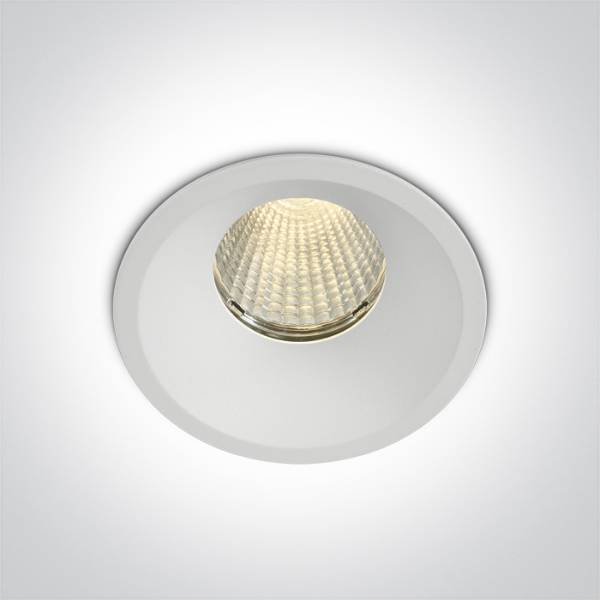

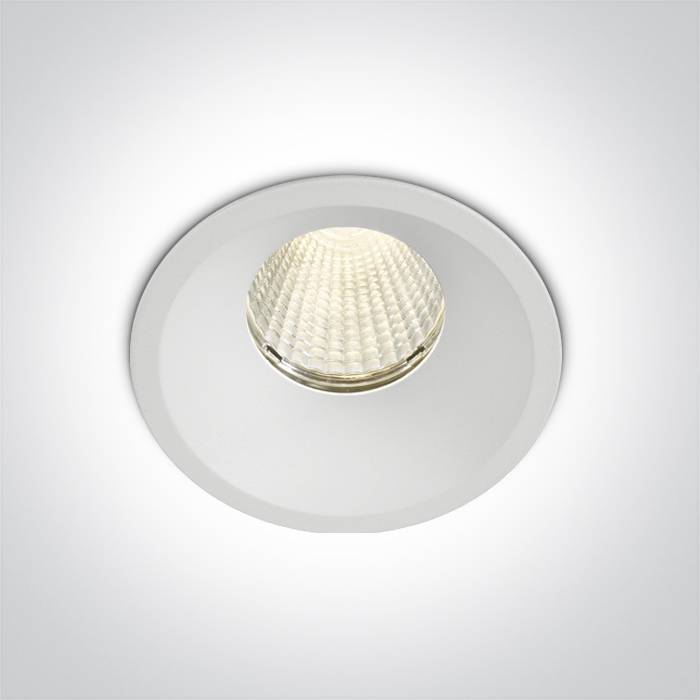

10112TP/W/W White 12W COB LED recessed spot IP65 3000K
10112TP/W/W White 12W COB LED recessed spot IP65 3000K
Recessed IP Rated COB LED spotlights for general application including bathrooms.
Application
Recessed ceiling luminaire for general application including bathrooms.
Description
Recessed COB LED spotlights for general application including bathrooms.
Features and benefits:
- Complies with EN 60598-1 and any other specific standards.
- IP65.
- Dimmable.
- Requires a 700 mA constant current driver.
- Variable CCT: 2700 K - 3000 K - 4000 K.
- Output: 510 lumens.
- CRI: 90.
- Beam angle: 38° 'dark light'.
General information
Color | White Guidance for specification option: Standard. Black Manufacturer guidanceOuter ring only. |
Material | Metal |
Shape | Circle |
Length | 88 mm |
Width | 88 mm |
Height | 73 mm |
Warranty description | Three year |
Uniclass | |
CAWS | V90/510 General purpose luminaires V90/510 Luminaires |
Specification data - Recessed luminaires
Standards | To EN 60598-1.Guidance for specification option: And any other specific standards; consult manufacturer for details. |
Luminaire description | Circular COB LED spot for general application in ceilings.Guidance for specification option: Requires 75 mm-diameter cut-out hole and 110 mm depth. Bridgelux LED as standard. |
Classification | |
Ingress protection (minimum) | IP65. |
Circumstances of use | Normal.Guidance for specification option: Internal only, general applications including bathrooms. |
Controlgear position | 700 mA LED driver required. |
LED luminaires | |
Safety standard | Class III. |
Initial LED luminaire efficacy (minimum) | 91.67 lm/W. |
Wattage | 12 W. |
Colour temperature | 3000 K. |
Colour rendering index (Ra) | 90. |
Beam angle | 38°.Guidance for specification option: Fixed. |
Accessories | None.89015A constant current LED driver.Guidance for specification option: For 700 mA LED spots / LED fittings, 7-15 W. IP20. Complies with standard EN 61347-1 and any other specific standards. |
Output | 1100 lm. |
Literature
06 Down lights Fixed LED
