1100 Series Closed Cell Watertight Foam Seal

Verified by manufacturer 5 months ago

Inpro

A seal for expansion joints provides a 100% watertight seal.

Jump to:
07494249485 Website

Application

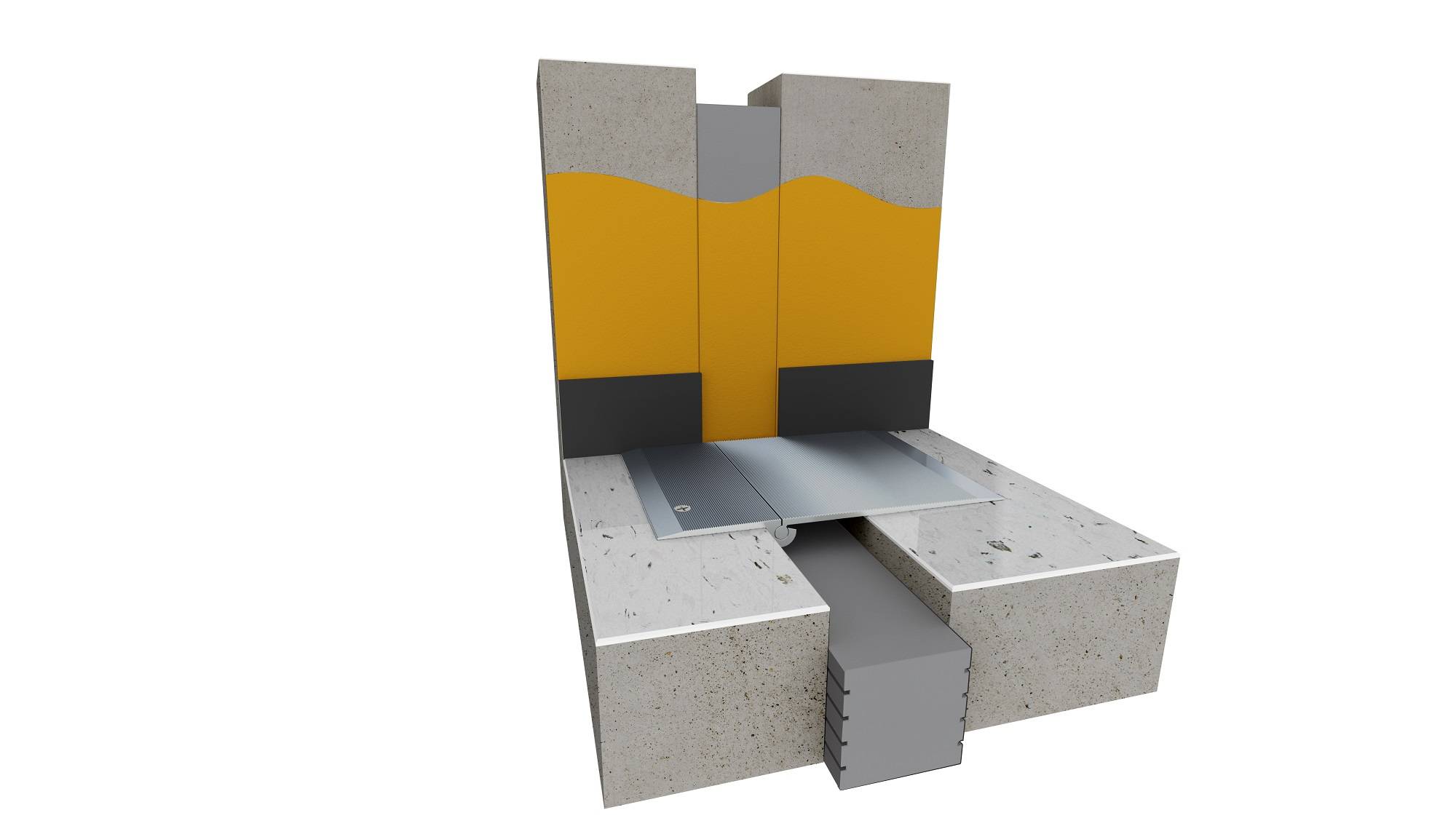

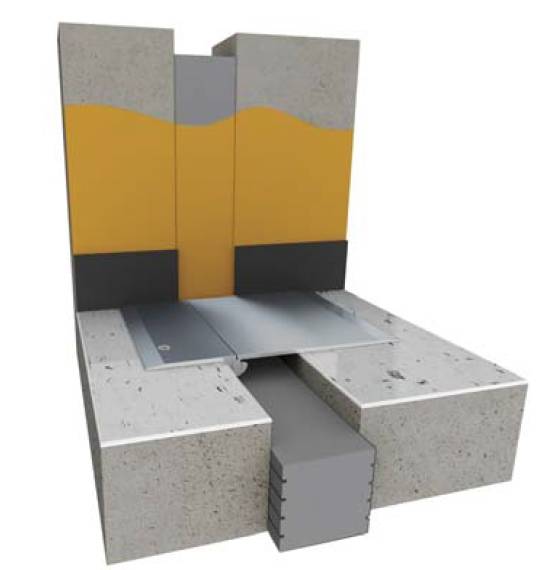

Suitable for roof applications and installation under metal cover plates (floor to floor, wall to wall, floor to corner and wall to corner conditions).

Description

The 1100 Foam Seal provides a 100% watertight seal. Ridged sides trap and pool epoxy (JPR003) providing superior adhesion to the joint surface.


Features and benefits:

  • High heat, weather, and UV resistant.
  • Allows for 50% tension | 50% compression |100% shear movement.
  • Made of a nitrogen blown polyethylene material which is more environmentally friendly than EVA foam seals.
  • Optional Coating: Seal can be painted to match any wall colour using ColorMatch, a field-applied paint that can match any Sherwin-Williams® or Pantone® colour. See ColorMatch (JPR007) technical data for more information.
  • To ASTM D3575.
  • For join widths larger then 76 mm in horizontal applications, JointMaster recommends a cover plate over the 1100 Foam Seal.

General information

Color

Grey

Manufacturer guidance

Available in a range of colours.

Material

Polyethylene

Warranty description

Five year

Guidance for specification option:

Standard JointMaster/InPro Corporation limited warranty against material and manufacturing defects for a period of not less than five years when installed in accordance with Manufacturer’s recommendations.

Size

51 x 25 mm

51 x 38 mm

51 x 51 mm

51 x 64 mm

76 x 76 mm

Show more

Manufacturer guidance

Seal heights x seal width. 51, 76, 101, 125, 150, 200 and 225 mm.

Uniclass

Pr_35_90_87_27 Expanded polyethylene (PE) foam stripsPrimary

CAWS

F30/615 Movement joints without sealant

F30/78 Fire-resisting movement joints without sealant

H42/661 Sealant joints

Product range

Expansion Joint Systems

Specification data - Expanded polyethylene (PE) foam strips

Weathering test

Certified Third Party validated Air, Water, and Structural Test.

Material

Non-cross-linked polyethylene foam.

Density

2 pcf (±0.3).

Compression in joint (minimum)

25%; 50%.

Guidance for specification option:

At 9 psi; At 16 psi.

Size

-

Thickness

51 mm.

76 mm.

101 mm.

125 mm.

150 mm.

200 mm.

225 mm.

Manufacturer guidance

Seal heights.

Width

50–200 mm.

Guidance for specification option:

Joint width.

Colour

-

Manufacturer guidance

Available in 26 colours, consult manufacturer for options.

Execution

Installing movement joint fillers.

Dimensions

51 x 25 mm.

Guidance for specification option:

1100-100.

51 x 38 mm.

Guidance for specification option:

1100-150.

51 x 51 mm.

Guidance for specification option:

1100-200.

51 x 64 mm.

Guidance for specification option:

1100-250.

76 x 76 mm.

Guidance for specification option:

1100-300.

Show more

Manufacturer guidance

Seal height x joint width.

Sustainability data

Contains Red List materials

No

Country of material origin

United States

Country of product manufacture

United States

BIM objects

Platform Compatible Version
Revit

Revit 2017

1
