101 Floor Expansion Joint
Verified by manufacturer 4 months ago
101-A01-025
101-A01-025

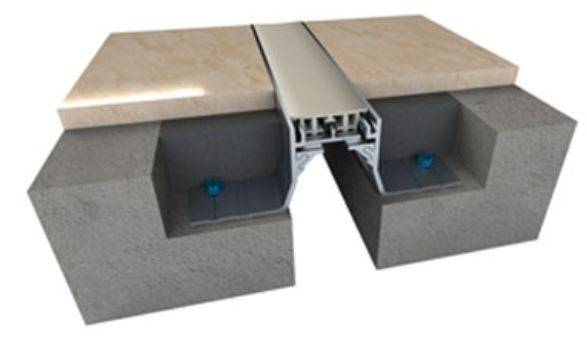

Flexible seal, recessed mount expansion joint cover
Application
Suitable for floor to floor and floor to wall applications.
Description
Expansion joint systems which seamlessly transition from floor to wall while protecting the building.
Features and benefits:
- Flush mount frames are adaptable to any floor finish.
- Seamlessly integrates with the following wall and ceiling systems: 101, 104, 112, 113, 118 A07/ A09. Consult manufacturer for further details.
- Easy to clean flush seals. No dirt or water traps.
- Snap-fit design for easy on site assembly.
- Adaptable to various finishes, including ceramic tile, marble, stone, vinyl tile and carpet.
- Optional vapour barrier and fire rating.
General information
Color | Black Beige Grey White Guidance for specification option: Off white and bright white. Manufacturer guidanceCustom colours available, consult manufacturer for options. |
Finish | Mill |
Material | Aluminium Rubber Guidance for specification option: Synthetic. Manufacturer guidanceUL Greenguard Gold Certified Santoprene seal (synthetic rubber) |
Warranty description | Five year Guidance for specification option: Standard limited warranty against material and manufacturing defects for a period of not less than five years when installed in accordance with manufacturer’s recommendations. |
Uniclass | |
CAWS | M10/476 Metal section movement joints M13/375 Strip movement joints M13/395 Metal section movement joints M40/80 Strip movement joints M40/825 Strip movement joints M40/835 Metal section movement joints M41/445 Strip movement joints M41/465 Metal section movement joints M50/740 Edgings and cover strips M51/510 Edgings and cover strips |
Product range |
Specification data - Metal section movement joints
Joint width (nominal) | 25 mm. |
Edging | |
Material | Aluminium. |
Finish | Mill. |
Colour | Natural. |
Insert | |
Material | Synthetic rubber. UL Greenguard Gold Certified Santoprene Seals.Guidance for specification option: Santoprene seal. |
Colour | Black.Beige.Grey.Off white.Bright white.Other.Guidance for specification option: Customer colours available, consult manufacturer for options. |
Frame height | 50 mm. |
Cut-outs | 64 mm. |
Joint type | Floor to floor. |
Sightline | 25 mm. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United States |
Recyclability | 75% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 53 % |
