10 Alu Clad Tilt and Turn Casement

Verified by manufacturer 2 months ago

Double glazed

Lomax + Wood Limited Variant:

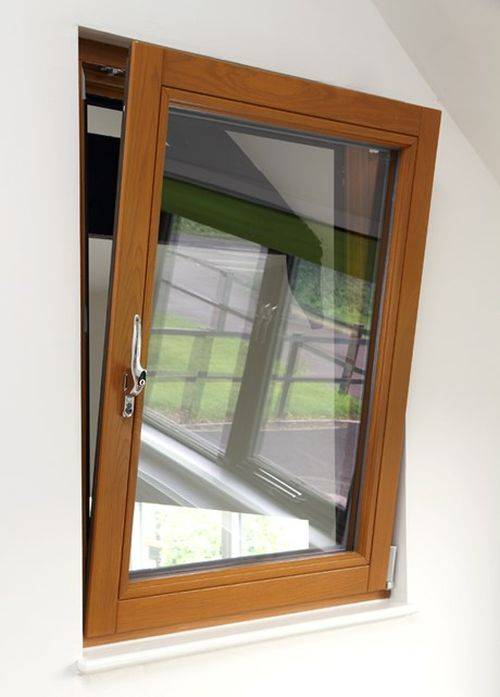

Modern styled timber tilt-turn open-in windows.

Jump to:
+44 (0)1277 353857 Website

Application

Applicable use for external windows.

Description

Made-to-order high performance flush timber tilt-turn open-in window designed for modern living with a stunning low maintenance aluminium clad exterior, whilst still allowing either a natural timber finish internally or a painted surface to help co-ordinate an overall approach to the internal décor. It is internally glazed and fully weather sealed to provide thermal and acoustic performance.


Features and benefits:

  • Chain of Custody certified timber as standard.
  • Tilt in and side hung open in configuration.
  • Factory double glazed/ triple glazed with the option of a 0.78 W/m²K U-value.
  • Espagnolette locking.
  • Internally glazed providing a secure anti-burglar solution and easier maintenance.
  • Fully weather-stripped for thermal and acoustic performance.
  • Three coat white factory finished spray applied micro-porous paint RAL 9010 as standard.
  • CE Marked to BS EN 14351-1+A1:2010.
  • Installation: Manufacturer installation service packages are available, contact manufacturer for information.


Accreditations:

  • FENSA registered company.
  • BM Trada Chain of Custody Certification.
  • Certified Timber.
  • World Land Trust Member.

General information

Color

White

Guidance for specification option:

RAL 9010 - Standard.

Brown

Guidance for specification option:

Wood stain.

Other

Guidance for specification option:

RAL.

Finish

Stained

Painted

Material

Wood

Aluminium

Glass

Shape

Rectangle

Square

Uniclass

Pr_30_59_98_96 Wood window unitsPrimary

CAWS

L10/210 Wood windows

Product range

Windows

Specification data - Wood window units

Standard

To BS EN 14351-1+A1:2010.

Third-party certification

CE Marked, FENSA registered company, BM Trada Chain of Custody Certification, FSC Certified timber and World Land Trust member.

Dimensions and configurations

Fixed casement.

Opening inward tilt and turn.

Tilt before turn.

Tilt only.

Product performance

-

Weather performance

-

Air permeability

To BS EN 1026, Class 4.

Watertightness

To BS EN 1027, Class 9A.

Resistance to wind load

To BS EN 12211, Class 5.

Environmental

-

Acoustic performance rating

38 dB.

Thermal

-

Whole window U-value

1.4 W/m²K.

Frame

-

Wood species

Engineered European larch.

Engineered European oak.

Engineered hardwood.

Engineered redwood.

Guidance for specification option:

Standard.

Chain of custody

FSC.

Finish as delivered

Painted.

Painted, dual finish.

Stained.

Glazing or infill

-

Requirements

Double glazed with toughened planitherm one and argon infill.

Hardware

Standard offset key lockable handle.

Operation

-

Type

Manual.

Fixing features

Mechanically fixed.

Dimensions

As drawing.

As schedule.

Frame colour

RAL.

Guidance for specification option:

Insert colour requirement.

Stain.

Guidance for specification option:

Insert requirement.

White, RAL 9010.

Guidance for specification option:

Standard.

FrameSize

68 x 78 mm.

Manufacturer guidance

Head and frame jambs x frame depth.

Perimeter spacer bar

Brown.

White.

Thickness

4 mm (double glazed).

Manufacturer guidance

Glazing thickness.

Spacer

16 mm.

Manufacturer guidance

Glazing cavity spacer.

Internal glazing bars

25 mm chamfered profile.

External Glazing Bars

25 mm chamfered putty bar.

External aluminium sill extension

Not required.

70 mm.

180 mm.

195 mm.

210 mm.

Handle colour

Brass.

Polished chrome.

Satin chrome.

White.

Trickle vents

Not required.

Concealed through the frame head.

Through the top rail of casement with external canopy.

Guidance for specification option:

Standard.

Accessories

None.

Satin obscure glass.

Special order.

Guidance for specification option:

Insert requirements.

Sash

68 x 78 mm.

Guidance for specification option:

Head and frame jambs x frame depth.

Transom/ mullion size

68 x 78 mm.

MoistureContent

12—19%.

Manufacturer guidance

Wood moisture content.

Locking

Winkhaus autoLock AV2+ multi-point locking system.

Sill

68 x 78 mm.

Guidance for specification option:

Flush sill.

Manufacturer guidance

Sill size.

Sustainability data

Material

Wood

Aluminium

Glass
