1 to 4 Hour Fire Resisting Steel Doors - Double - FD01 Fireguard - Fire Resisting Steel Door

Verified by manufacturer 25 days ago

Fire resisting to 60 minutes

HAG Ltd. - The Door Specialists Variant:
Third party certifications:
  • ADSA

    ADSA

    Certificate type

  • AkzoNobel

    Certificate type

  • Alcumus SafeContractor

    Alcumus SafeContractor

    Certificate type

  • Made in Britain

    Made in Britain

    Certificate type

  • CHAS

    CHAS

    Certificate type

  • Constructionline

    Constructionline

    Certificate type

  • dhf certificate

    dhf certificate

    Certificate type

  • Warringtonfire

    Warringtonfire

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • Certifire Certificate

    Certifire Certificate

    Certificate type

  • DoP

    DoP

    Certificate type

  • UK Conformity Assessed (UKCA)

    UK Conformity Assessed (UKCA)

    Certificate type

  • CE Marking

    Certificate type

  • FIRAS

    Certificate type

Fire Integrity (E) from 60 to 240 minutes CERTIFIRE & FIRAS installation Certified. Compliant with fire regulations BS EN 16034.

Jump to:
BOS
0800 072 3444 Website

Application

Fire resisting steel double doorsets suitable for industrial, commercial, residential, public buildings, hospitality and cultural or historical settings

  • Airports
  • Train stations
  • Kitchen servery hatches
  • Retail units
  • Shopping malls
  • Offices
  • Leisure complex
  • Warehouse
  • Factories
  • Chemical plant
  • Hospitals
  • Care homes
  • Receptions areas
  • Schools
  • Colleges
  • Academies
  • Universities
  • Nurseries
  • Residential - high rise or large houses
  • Hotels
  • Restaurants
  • Museums
  • Libraries
  • Historical sites


Description

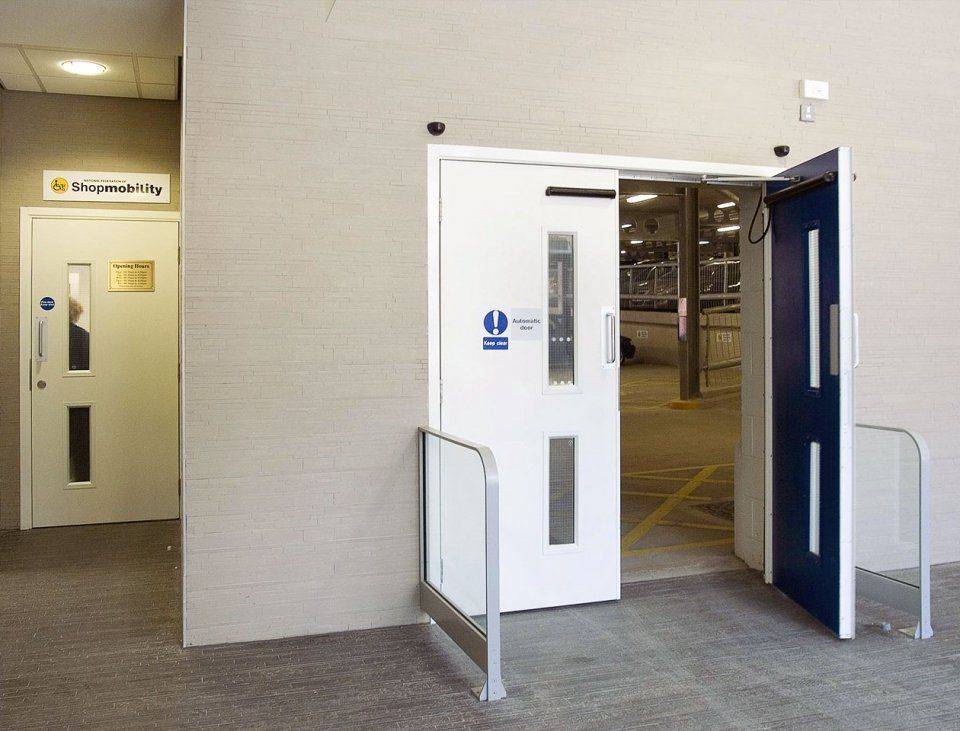

Fire-resisting steel double doorset, providing protection against the spread of fire whilst securing property against burglary.


Features and benefits:

  • Door manufactured from 1.2 mm-thick corrosion resistant Magnelis steel.
  • Variable subframe supplied to accommodate site tolerance of ±0–30 mm.
  • Infill manufactured from self-supporting resin-impregnated honeycomb core or mineral wool option.
  • Frame is fitted with three class 13 stainless steel hinges with two security dog bolts.
  • Also available as a single doorset, specified separately.
  • Door frame folded from 1.6 mm Magnelis.


Standards:

  • CERTIFIRE Certified.
  • Defined as BS EN 12519:2018.
  • Full CE Compliance including CE marked to BS EN 1321-1:2003.
  • Tested and compliant to BS EN 1634-3:2014.
  • Optional increased specification for security and acoustic ratings when required.
  • Complies to Document Part M Building Regulations 2004.
  • Compliance to Equality Act 2010.
  • U-value specification up to 3.2 W/m²K.


FIRAS INSTALLER CERTIFICATION SCHEME


HAG Is accredited to install fire protection products by Warrington fire through its FIRAS installation certificate scheme.


FIRAS is the mark of endorsement of competency in the installation of products and systems, vital for achieving the protection required and is accredited by UKAS to BS EN ISO/IEC 17065:2012.



Insurances could be invalid if proof of a competent product installer is not verified.

General information

Color

Other

Manufacturer guidance

75 standard powder-coated finishes available.

Finish

Powder-coated

Guidance for specification option:

Polyester powder-coated (PPC).

Material

Steel

Guidance for specification option:

1.5 mm folded Aluzinc steel.

Shape

Rectangle

Width

1000 mm

1780 mm

Guidance for specification option:

Stock size.

2600 mm

Manufacturer guidance

1000–2600 mm bespoke size range, consult manufacturer for details.

Height

1500 mm

2100 mm

Guidance for specification option:

Stock size.

2800 mm

Manufacturer guidance

1500–2800 mm bespoke size range, consult manufacturer for details.

Material

Steel

Guidance for specification option:

1.5 mm folded Aluzinc steel.

Uniclass

Pr_30_59_24_52 Carbon steel doorsetsPrimary

CAWS

L20/55 Doorsets

L20/480 Doorsets

Product range

Fire Protection

Specification data - Carbon steel doorsets

Standard

Tested and compliant to BS 476-22, BS EN 1634-1:2008, BS EN 1634-3:2014.

Configuration

Double leaf, single action.

Leaf and part leaf, single action.

Bespoke.

Guidance for specification option:

Larger structural openings can be accommodated by the use of side panels and over panels.

Doorset size

1780 x 2100 mm.

Guidance for specification option:

Stock size (w x h).

Manufacturer guidance

Insert requirements, bespoke size range (w x h).

  • Width: 1000–2600 mm.
  • Height: 1500–2800 mm.

Performance

-

Fire resistance

-

Integrity

To BS EN 1634-1: 2014, 60 minutes.

Reaction to fire

60 minutes.

Acoustic performance

28 dB.

Guidance for specification option:

Standard.

35 dB.

45 dB.

50 dB.

Thermal

1.8 W/m²K.

Guidance for specification option:

Maximum.

Manufacturer guidance

Consult manufacturer for details.

Intruder resistance

-

Minimum requirement

Modular mortice lock/ additional flush bolt to inactive leaf.

Guidance for specification option:

Standard.

Frame

-

Material

1.5 mm folded Magnelis steel with fixed reveal, type A.

1.5 mm folded Magnelis steel with fixed reveal, type B.

1.5 mm folded Magnelis steel with fixed reveal, type C.

1.5 mm folded Magnelis steel with fixed reveal, type D.

Manufacturer guidance

Consult manufacturer for details of frame types.

Threshold

15 mm stepped threshold for compliance to the Equality Act 2010.

Perimeter seals or inserts

Variable sub frame to allow up to 30 mm tolerance for site installations.

Finish

-

Coating

Polyester powder-coated.

Texture

Polyester powder-coated.

Colour

As door leaf.

Bespoke.

Guidance for specification option:

Insert requirements; 75 standard powder coat finishes available.

Door leaf

-

Thickness

48 mm.

Core

Honeycomb.

Guidance for specification option:

Standard.

Rock wool.

Guidance for specification option:

For superior thermal and acoustic insulation in external applications.

Panel details

Flat.

Material

Steel.

Perimeter seals

Fire resisting door seals.

Glazing

-

Type

-

Manufacturer guidance

Consult manufacturer and insert requirements for vision panel and louvre configurations. Vision panels are factory-fitted.

Manifestation

-

Manufacturer guidance

Insert requirements. Compliance to Document Part M Building Regulations 2004.

Finish

-

Coating

Polyester powder-coated.

External colour

Bespoke.

Guidance for specification option:

Insert requirements; 75 standard powder coat finishes available.

Internal colour

As External.

Bespoke.

Guidance for specification option:

Insert requirements; 75 standard powder coat finishes available.

Hardware

Manufacturer's standard.

Guidance for specification option:

Class 13 stainless steel ball bearing hinges with security dog bolts.

EXIDOR/ BRITON 200 series panic hardware in silver finish.

Bespoke.

Guidance for specification option:

Alternatives specifiable as an option; consult manufacturer and insert requirements.

Operation

Manual.

Third-party certification

CERTIFIRE certified.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Steel

Guidance for specification option:

1.5 mm folded Aluzinc steel.

Recyclability

95

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

17 %
