Verified by manufacturer 4 months ago

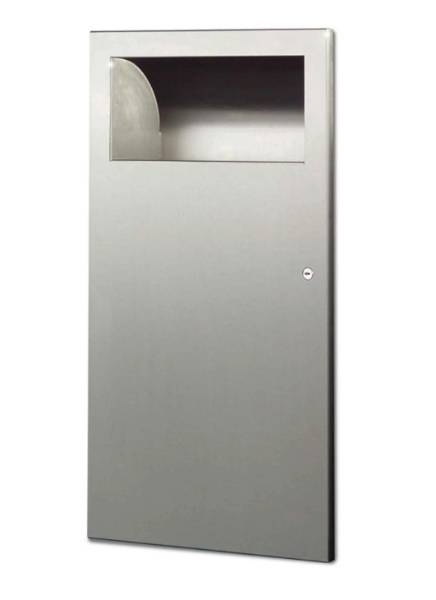

09.3006 Stainless steel
Recess mounted stainless steel waste paper bin for use in low traffic areas.
Recess mounted for use in low traffic areas.
Recess mounted stainless steel waste bin.
Features and benefits:
Color | Silver Black Blue White Other |
Finish | Brushed Acrylic Corian |
Material | Stainless steel Acrylic Glass |
Shape | Rectangle |
Width | 375 mm |
Height | 680 mm |
Warranty description | One year Guidance for specification option: Covered by a 12-month warranty from the date of purchase to be free from defects if installed and maintained in accordance with instructions. |
Uniclass | |
CAWS | N13/474 Waste bins |
Form | Recessed. |
Materials | Stainless steel.Guidance for specification option: Door, 1.2 mm; bin chute and bin, 0.7 mm, back box, 0.9 mm grade 1.4301 (304) to BS EN 10088-1. |
Finish and colour | Brushed satin. |
Size | 375 x 680 x 16 mm.Manufacturer guidanceHeight x width x projection. |
Capacity | 10 L. |
Weight (approximate) | 9.8 kg. |
Opening | 360 x 665 x 112 mm. Manufacturer guidanceRecommended wall opening (width x height x depth). |
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
Platform | Compatible | Version |
---|---|---|
IFC2X3 | 1 | |
Revit 2015 | 1 |
