01 Kensington and Chelsea Box Cords and Weights Sash

Verified by manufacturer 2 days ago

Double glazed

Lomax + Wood Limited Variant:

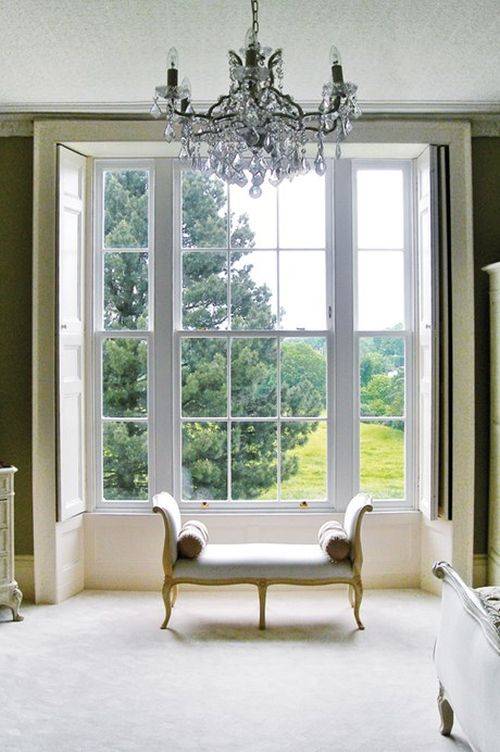

Traditionally operated timber sash window.

Jump to:
+44 (0)1277 353857 Website

Application

Suitable for any applications where there are access limitations.

Description

Made-to-order, double glazed, high performance, traditionally operated timber sash window for conservation areas and new builds, which capture historical detail while providing modern acoustic and thermal performance. It is internally glazed and fully weather sealed. Shaped and feature windows are available within the range.


Features and benefits:

  • Traditional pre-stretched nylon cords and weights sash operation.
  • Chain of Custody certified timber as standard.
  • Pulley covers to prevent draught.
  • Timber parting bead.
  • Internally glazed providing a secure anti-burglar solution and easier maintenance.
  • Hardwood sill.
  • Key locking sash catch and sash lifts.
  • Self-engaging top sash locks and restrictors.
  • Fully weather-stripped for thermal and acoustic performance.
  • Three coat white factory finished spray applied micro-porous paint RAL 9010 as standard.
  • Meets PAS 24 2016.
  • CE Marked to BS EN 14351-1+A1:2010.
  • Material marine specification: For projects in coastal or island environments please contact manufacturer for information.
  • Installation: Manufacturer installation service packages are available, contact manufacturer for information.


Accreditations:

  • FENSA registered company.
  • BM Trada Chain of Custody Certification.
  • Certified Timber.
  • World Land Trust Member.

General information

Color

White

Guidance for specification option:

RAL 9010 - standard.

Brown

Guidance for specification option:

Wood stain.

Other

Guidance for specification option:

RAL or Farrow and Ball colour match.

Finish

Painted

Stained

Material

Wood

Glass

Shape

Rectangle

Width

Bespoke

Height

Bespoke

Warranty description

30 year

Uniclass

Pr_30_59_98_96 Wood window unitsPrimary

CAWS

L10/210 Wood windows

Product range

Windows

Specification data - Wood window units

Standard

To BS EN 14351-1+A1:2010.

Third-party certification

CE Marked, FENSA registered company, BM Trada Chain of Custody Certification, FSC Certified timber and World Land Trust member.

Dimensions and configurations

Fixed bottom sash.

Fixed top sash.

Sliding sash window.

Guidance for specification option:

Standard.

Product performance

-

Weather performance

-

Air permeability

To BS EN 1026, Class 4.

Watertightness

To BS EN 1027, Class 7A.

Resistance to wind load

To BS EN 12211, Class C5.

Safety

-

Security level

To PAS 24, 2012.

Environmental

-

Acoustic performance rating

36 dB.

Thermal

-

Whole window U-value

1.1 W/m²K.

Frame

-

Wood species

Engineered Accoya.

Engineered European larch.

Engineered European oak.

Engineered hardwood.

Engineered redwood.

Guidance for specification option:

Standard.

Chain of custody

FSC.

Finish as delivered

Painted.

Painted, dual finish.

Stained.

Glazing or infill

-

Requirements

Double glazed with toughened planitherm one and argon infill.

Operation

-

Type

Manual.

Fixing features

Mechanically fixed.

Guidance for specification option:

Manufactured using mortise and tenon joint and glued.

Dimensions

As drawing.

As schedule.

Frame colour

Farrow and Ball colour match.

Guidance for specification option:

Insert colour requirement.

RAL.

Guidance for specification option:

Insert colour requirement.

Stain.

Guidance for specification option:

Insert requirement.

White, RAL 9010.

Guidance for specification option:

Standard.

FrameSize

100 x 174 mm.

Guidance for specification option:

Lining width x frame depth.

Internal frame and sash

Lambs tongue.

Ovolo.

Manufacturer guidance

Internal frame/ sash profile.

External profile

Bead moulded liner.

Moulded to match inner sash/ frame profile.

Square external liner.

Guidance for specification option:

Standard.

Manufacturer guidance

External frame/ sash profile.

Perimeter spacer bars

Black warm edge perimeter spacer with black warm edge integral spacers.

White warm edge perimeter spacer with white warm edge integral spacers.

Guidance for specification option:

Standard.

Internal glazing bars

Not required.

18 mm cove profile.

18 mm lambs tongue profile.

18 mm ovolo profile.

20 mm lambs tongue profile.

Show more

External Glazing Bars

Not required.

9 mm antiqued lead.

12 mm antiqued lead.

18 mm chamfered putty bar.

20 mm chamfered.

Guidance for specification option:

Standard.

Show more

Glass units and whole product U-values/ G-values

0.52.

Thickness

4 mm (double glazed).

Guidance for specification option:

Per layer.

Manufacturer guidance

Glazing thickness.

Spacer

16 mm.

Manufacturer guidance

Glazing cavity spacer.

Type

68 x 178 mm flush sill.

Guidance for specification option:

Standard.

80 x 178 mm.

Manufacturer guidance

Sill type.

Extension

35 mm.

60 mm.

85 mm.

110 mm.

Manufacturer guidance

Sill extension.

Extension horns

Guidance for specification option:

Insert length requirement.

Manufacturer guidance

Sill extension horns.

Top rail

56 x 60 mm.

Manufacturer guidance

Sash: top rail and stiles.

Bottom rail

80 x 60 mm.

Manufacturer guidance

Sash: bottom rail.

Rail

44 x 60 mm.

Manufacturer guidance

Sash: meeting rail.

Sash

56 x 60 mm top rail and stiles, 80 x 60 mm bottom rail, 44 x 60 mm meeting rail.

Horns

Not required.

Type A.

Type B.

Manufacturer guidance

Sash horns.

Operation

Fixed bottom sash.

Fixed top sash.

Manufacturer guidance

Sash operation.

Window pulleys

Antique brass.

Brass.

Oil rubbed bronze.

Polished chrome.

Satin chrome.

Show more

Manufacturer guidance

Ironmongery finish.

Window lifts

Antique brass.

Brass.

Oil rubbed bronze.

Polished chrome.

Satin chrome.

Show more

Manufacturer guidance

Ironmongery finish.

Window catches

Antique brass.

Brass.

Oil rubbed bronze.

Polished chrome.

Satin chrome.

Show more

Manufacturer guidance

Ironmongery finish.

Angel vent locks

Brass.

Polished chrome.

Satin chrome.

White.

Vent locks

Key operated.

Push button.

Trickle vents

Not required.

Concealed through the frame head.

Guidance for specification option:

Standard.

Through the top rail of top sash with external canopy.

Accessories

None.

Satin obscure glass.

Window board groove.

Special order.

Guidance for specification option:

Insert requirements.

Mullion/ transom

192 mm.

Guidance for specification option:

Wide.

140 mm.

Guidance for specification option:

Triple sash with fixed outer sash.

Staff bead

Timber.

MoistureContent

12—19%.

Sustainability data

Material

Wood

Glass
