>B< Press Gas

Third party certifications:

QA Certificate
Certificate type

Gas pipe fittings.

Jump to:

+44 (0)121 557 2831 https://conexbanninger.com/en-gb/

Application

Natural and LPG gas, compressed air with oil content, compressed air (oil-free), fuel and oil.

Description

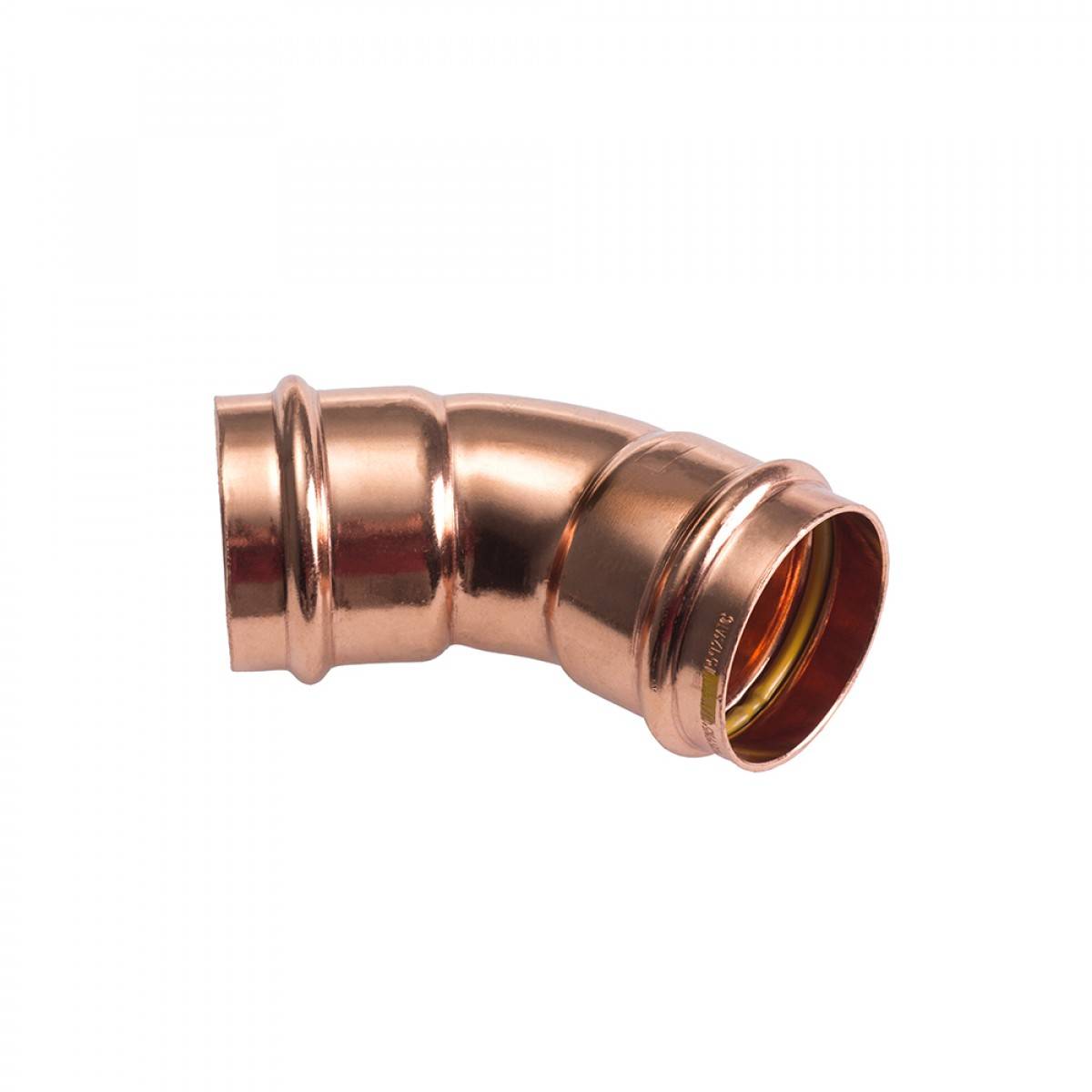

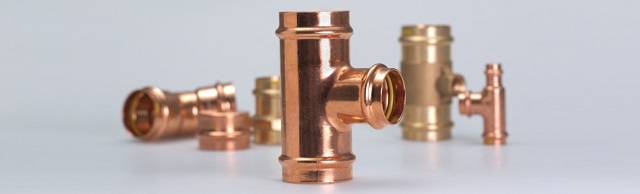

>B< Press Gas fittings are quick and easy to install and are available in copper and copper alloy for connecting to copper tube. This flame-free range is designed with a three-point press system that ensures a secure, permanent leak-free joint that is suitable for various gas, oil and compressed air applications. The fittings are also compatible with a range of press tools and jaws.

Features and benefits:

Reduced installation time and cost.
Flame-free connection - no hot works permit required.
Suitable for hard, half-hard and soft copper tube to EN 1057.
Corrosion resistant.
Marking: Fittings incorporate a yellow mark on the outside and a yellow seal for identification. They are also permanently marked with “GAS PN5 GT/1 Q MOP5 T2”. Packaging is clearly marked in ‘YELLOW’ on both sides of the bag.

General information

Shape Dependent on type.	-
Color	Bronze Copper
Material	Copper Brass Red brass. Rubber Hydrogenated nitrile rubber (HNBR): O-ring.
WarrantyDescription	25 year From the date of first purchase. When professionally installed, used and maintained in accordance with >B< Press Gas installation instructions, Conex Universal Ltd. guarantees that >B< Press Gas fittings supplied by Conex Universal Ltd. will be free of material defects resulting from errors in manufacture, for twenty-five (25) years from the date of first purchase by an end user. For full terms and conditions please refer to the Product Guarantee Statement.

Uniclass 2015	Pr_65_52_63_18 Copper pipeline fittingsPrimary
CAWS	S90/110 Mains cold water supply S90/120 Storage cold water supply S90/110 Mains cold water supply S90/130 Instantaneous hot water supply S90/120 Storage cold water supply S90/140 Direct hot water storage supply S90/130 Instantaneous hot water supply S90/150 Indirect hot water storage supply S90/140 Direct hot water storage supply S90/150 Indirect hot water storage supply S90/160 Rainwater/ greywater recycling system

Specification data - Copper pipeline fittings Enhanced data

Standards	-
Press fittings	To BS 8537; DVGW G5614; prEN1254-7.

Fittings Insert requirements or drawing/ schedule reference number.	-
Diameter Insert requirements or drawing/ schedule reference number.	-
Operating parameters	Maximum operating pressure: 5 bar.
MaximumOperatingTemperature	-20 to +70°C.
Approvals	KIWA; BSI Kitemark; DVGW; CERTIGAS, INig; SVGW; ARBG-KVBG. ARGB-KVBG: Belgium; BSI Kitemark: UK; CERTIGAS: France; DVGW: Germany; INig: Poland; KIWA: Netherlands; SVGW: Switzerland.
