YOURDOOR Residential RF and RS
Compare variants

YOURDOOR Residential RF and RS

SOMMER DOCO Variant:

Automatic garage door, manufactured to suit project requirements.

Jump to:
+44(0)1904 608787 www.sommer.eu

Application

Can be used in both residential and commercial applications. Consult manufacturer's literature for further details.

Description

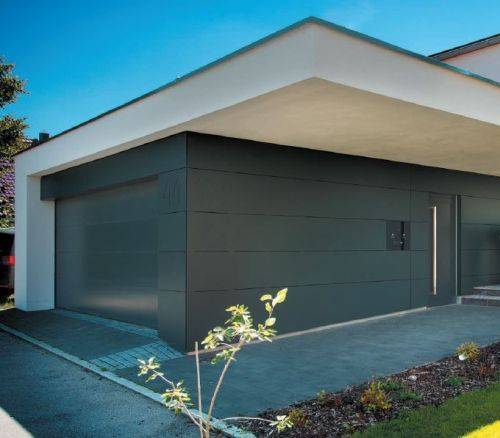

Automatic garage door available in standard and trend colours and made-to-measure according to project requirements.


Features and benefits:

  • Functional, safe and convenient.
  • Manufactured from a range of high quality materials with high-grade surfaces to provide maximum durability.
  • Easy to install.
  • The stable door panel with 40 mm thick insulated sections and the integrated sealing system offer a high level of heat insulation to help conserve energy. It also helps to compensate for areas of uneven ground.
  • The tandem rollers reduce the weight load per roller. This means there is permanently less load on the rollers and guide rails to help improve service life.
  • The additional integrated ball bearings and 'silent' inserts provide a smooth rolling performance and therefore a quieter door when in operation, and significantly less wear and tear.
  • One-piece rails are manufactured entirely of metal and have an integrated arch which eliminates the shock normally created by the transition from curved to straight rail.
  • Tension springs are supplied with a cover to improve the aesthetic quality of the interior through concealing the mechanism, and to protect fingers from getting trapped.
  • A protective side cover is provided to prevent risk of injury.
  • 15 000 guaranteed operation cycles.
  • Detects changes in temperature, and adjusts the force potential of the operator to suit differing weather conditions.
  • The stationary chain with a travelling motor helps to avoid any additional load on the motor.
  • Will reverse on detection of an obstacle to avoid damage or injury.
  • Can detect a break-in attempt, and will automatically push in the opposite direction to provide resistance.
  • Emits minimal levels of radiation.
  • Soft start and soft stop system ensures the door opens and closes quietly and without jolting.
  • Emergency unlock system allows the door to be disengaged and re-engaged in any position, allowing secure opening in manual use, and the ability to unlock and re-lock in the event of power failure.
  • Manufactured in accordance with BS EN 13241-1.

General information

Size

Consult manufacturer for available sizes and insert requirements, or insert project drawing.

-

Color

Grey

Goosewing Grey BS10A05, Merlin Grey BS18B25 or Anthracite - RAL7016.

Blue

Sapphire Blue RAL5003, Gentian Blue - RAL5010 or Cornflower Blue BS18E53.

Green

Olive Green BS12B27.

Red

Flame Red BS04E54.

Yellow

Show more

Finish

Polyester powder coated

Wood effect

Smooth

Woodgrain

Material

Steel

Hinges, cover and rails.

Plastic

Frame foot: High quality plastic (corrosion-resistant).

Shape

Rectangular

WarrantyDescription

Ten-years

Ten-year guarantee on sectional doors, and a five-year guarantee on the garage door operators.

Uniclass 2015

Pr_30_59_84_73 Roller shuttersPrimary

CAWS

L20/610 Roller shutters/ curtains

Product range

Garage Doors

Specification data - Roller shutters Enhanced data

Standard

To BS EN 13241.

Opening sizes

Made to measure. Consult manufacturer and insert requirements.

Format

External.

Arrangement

Vertical, fitted into reveal.

Shutter curtain.

-

Lath material

Stainless steel.

Frame and guides

-

Material

Metal and high quality plastic.

Rails: Metal

Frame foot: High quality plastic (corrosion-resistant).

Operation

-

Mode

Automatic.

Control

Radio-controlled.

With 150 m range.

Hardware

Hinges.

2.5 mm, solid steel.

Execution

Installing hardware.

Product Reference

YOURDOOR Residential RF

Garage door with large rib design.

Size

Consult manufacturer for available sizes and insert requirements, or insert project drawing.

-

Accessories/ Other requirements

Not required.

Alarm siren.

Will sound in the attempt at a break-in.

Humidity sensor.

Measures the humidity of the air in the garage, and regulates it by opening the door slightly. The door closes automatically when the suitable humidity level is reached.

Magnetic locking mechanism.

Secures the door not only when it is closed, but also if it has been opened slightly for ventilation.

SOMweb smart home solution.

Allows control of the operator through smartphone, tablet or PC. Consult manufacturer for further details.

Surface finish

Smooth.

Helps dirt and moisture to roll off.

Colour

Anthracite grey.

Standard colour - Similar to RAL 7016.

Golden oak.

Standard colour.

Rosewood.

Standard colour.

Traffic white.

Standard colour - Similar to RAL 9016.

Black gloss.

Trend colour - Similar to RAL 9005.

Show more

Power consumption

<1 W.

Opening speed

240 mm/s.
