Leisure Cubicles

Application

  • For WC, changing room and shower room applications.
  • Can be used in demanding, wet and humid environments.

Description

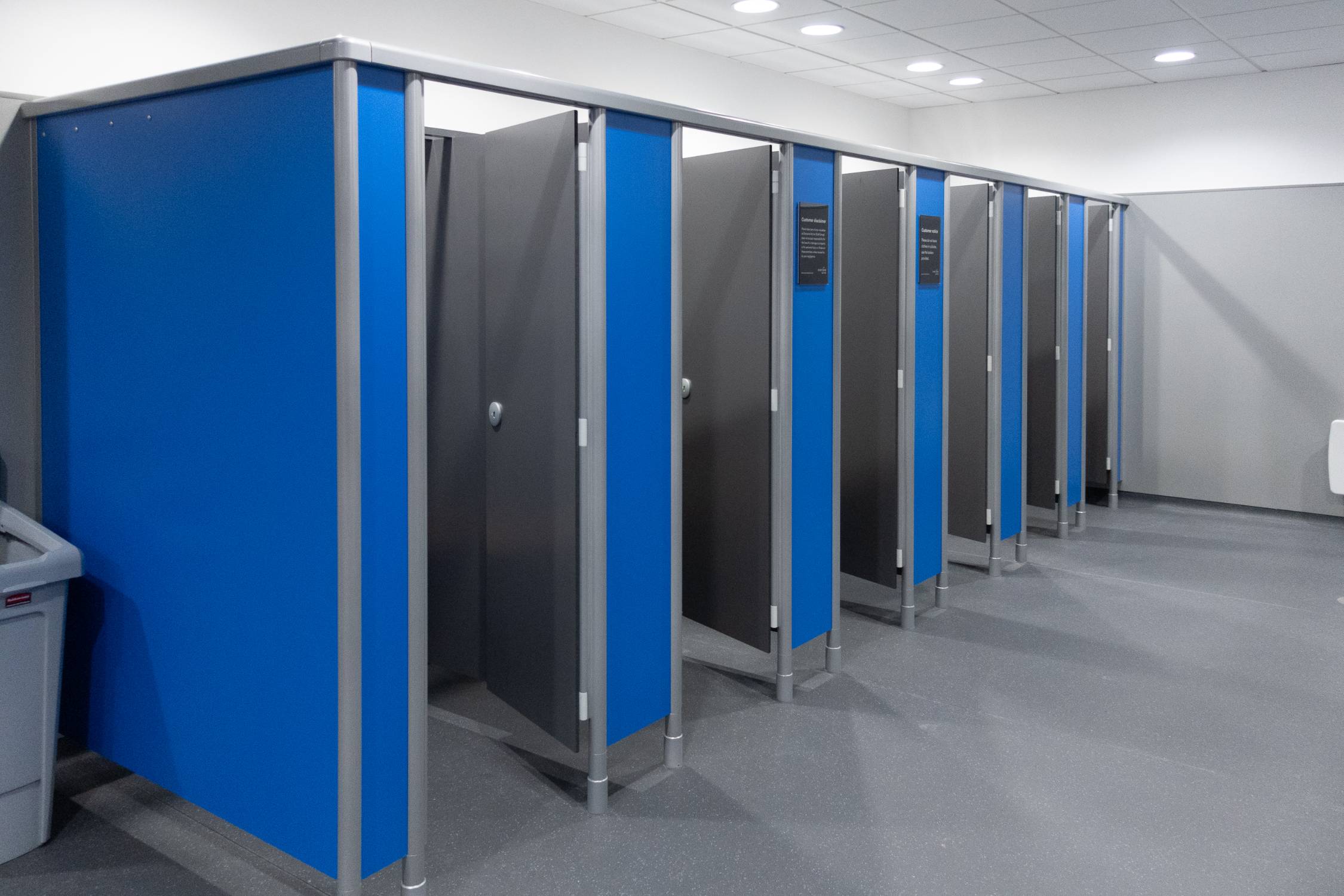

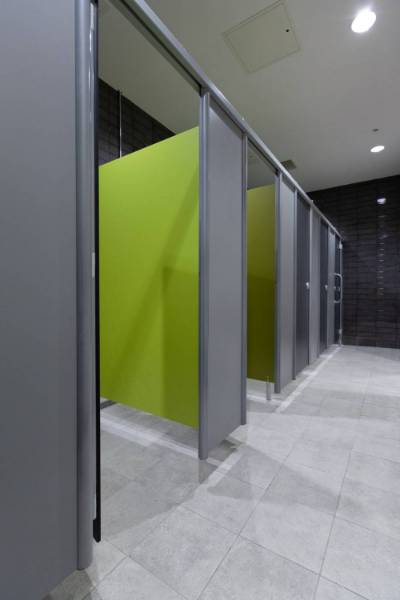

Durable and stable, fully framed, freestanding cubicles. They are available with a large colour choice and with no visible fixings, they are aesthetically and visually appealing. Manufactured using solid grade high-pressure laminate, their non-porous fabrication offers a hardwearing, durable and aesthetic solution for cubicle and locker applications with excellent resistance to impact, scratches and abrasion.


Features and benefits:

  • Fully framed system.
  • Tamper-proof design with no exposed mechanical fixings.
  • Impact, scratch and abrasion-resistant.
  • Door frame with anti-finger trap system.
  • Full-length channels attach partition and pilaster panels to walls.
  • Supplied with a pivoting foot for uneven ground levels.
  • Freestanding design in a range of colours.
  • Full integration with Helmsman zinc plated metal framed IPS panels.

General information

Color

Select from manufacturers laminate colour range.

-

Finish

Helmsman powder colour selection or Satin Silver Anodised. Hardware colour can match or contrast.

Anodized

Powder coated

Material

Aluminium

Size

Cubicle sizes are tailored to suit your requirements.

1950 mm

The standard overall cubicle height is 1950 mm with 150 mm ground clearance.

WarrantyDescription

One-year

Other options available, consult with the manufacturer.

Uniclass 2015

Ss_25_12_60_30 Fully-framed panel cubicle systemsPrimary

CAWS

K32/10 Panel cubicles

K32/112 Fully framed panel cubicles

Specification data - Fully-framed panel cubicle systems Enhanced data

System performance

Design submittals.

Panels

Solid Grade Laminate boards.

As standard. Solid phenolic grade laminate, 12 mm thick, black core.

Panel supports

Aluminium frames.

Doors

Solid Grade Laminate doors.

Hardware

Door privacy indicator bolts.

Robust easy action door latch with emergency release facility. Large visible occupied indicator. Turn action ensures trouble free operation. Discreet security through fixings. Colour coordinated face and back plate. Vandal resistant design.

Door hinges.

Each door is support by three 'Hewi' hinges mechanically fixed to the hinge side door frame extrusion. The one sprung and two un-sprung hinges can be adjusted so the door can be allowed to stay open, closed, or ajar when not in use. Hinges can be fitted so doors open outwards.

Pedestal leg.

Heavy-duty,150 mm high, providing 45 mm adjustment to accommodate uneven floors. Concealed floor fixings constructed from aluminium.

System accessories

None.

Anti-peep rails.

Baby change.

Modesty panels.

Wall panels.

Special fittings for disabled and family usage.

Consult manufacturer and insert requirements.

Special order.

Insert requirements.

Coat hook.

Single aluminium hat and coat hook on inside of door.

Duct IPS system.

Product Reference

Fully Framed Cubicles

Design

As drawing.

Insert reference.

Overall height

1950 mm.

Standard, 150 mm ground clearance.

Special order.

Insert requirement.

Colour

Select from the manufacturer’s laminate colour range.

Panel colour. Insert requirement from Helmsman solid grade laminate ranges.

Door colour

Insert requirement from Helmsman solid grade laminate ranges.

Frame/ hardware

Helmsman powder colour selection or Satin Silver Anodised. Hardware colour can match or contrast.

Satin silver anodized.

Helmsman powder colour selection.

DDA/ Ambulant cubicle provision

DDA compliant handle set with handle/ grab rails.

Aluminium door hook attached to inside face of the door.

Two aluminium door hooks to DDA compliant cubicles.

Four aluminium door hooks for family special cubicle.

Special latch keep for DDA compliant outward opening door.

Show more

Accessories

Anti-peep rails.

Option for extended panels for anti camera purposes.

Adjustable floor fixing feet from turned aluminium billet with height adjustable bolt.

Suspended floating leg at the back.

A floating appearance as an optional extra with a suspended floating leg.

Edge profile

Safety corners, all edges smoothed and radiused.

Panel fixings

Clear Dow Corning clear silicon sealant.

Hinges

Nylon covered heavy duty stainless steel/brass hinges.

Three nylon covered heavy duty stainless steel/brass hinges per door. One hinge sprung for opening/closing door. Door hinges includes anti-finger trap and anti-lift design. Hinges can be fitted so doors open outwards.

Door furniture

Polyurethane door buffers.

Inset into latch side of door frame leaf.

Bolts

Turn action.

Turn action ensures trouble free operation. Discreet security through fixings. Colour coordinated face and back plate.

Vandal resistant design.

Environmental information

Contains Red List materials

No

Country of product manufacture

United Kingdom
