AVC Mullion Closures MI1
SIDERISE MI consists of a range of specialist mullion and transom inserts designed to improve the sound insulation performance of lightweight hollow framed facades or glazed areas.

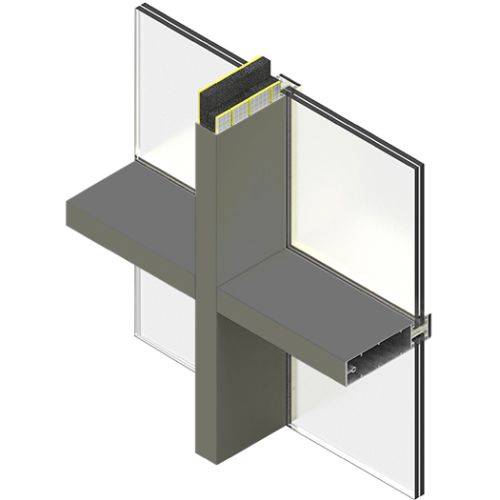

A 'through' or 'along' frame section treatment for improving the sound insulation performance of lightweight, hollow framed facades or glazed areas.
SIDERISE Mullion and Transom Inserts comprise a range of specialist material components intended to improve the sound insulation performance of lightweight hollow framed facades or glazed areas. Whilst the inserts may be employed for the purpose of improving the sound transmission characteristics of the building envelope (e.g. outside to inside performance), more commonly they are used to assist in reducing flanking transmission between adjacent internal areas. This includes ‘room to room’ and ‘floor to floor’ flanking sound transmission. Specific optimal solutions have been developed for each of the common conditions encountered in curtain wall constructions. The design of the appropriate insert considers not only acoustic performance but also ease and practicality of installation. In-house manufacturing techniques such as CNC/ die cutting or routing permits an accurate tailored fit within the particular hollow frame element.
-SIDERISE AVC Mullion Closures:
Die-cut parts in a dense resilient foam material with a central flexible heavy membrane. Usually die-cut to the exact internal profile of the hollow frame section. Depending on the sound insulation performance required they may be deployed singly or in pairs.
-SIDERISE HB Inserts:
Shaped composite high mass layer and acoustic foam inserts. Comprises a layer of V Foam with a 10 kg/m² limp elastomeric barrier membrane to one side. Fitted in pairs in a back-to-back arrangement with the barrier layers to the outside.
-SIDERISE MF Inserts:
Shaped resin bonded rock fibre absorptive inserts.
-SIDERISE V Foam Baffles:
Shaped impregnated acoustic foam absorptive insert baffles, typically in 300–600 mm lengths and are usually installed centred on the midpoint of the compartment line.
-SIDERISE V Foam Inserts:
Shaped impregnated acoustic foam absorptive inserts. Robust, flexible and dust-free.
Features and benefits:
Material | Carbon impregnated foam and polymeric barrier Stonewool Carbon Impregnated Foam Foil Faced Polymeric Barrier and Carbon Impregnated Foam |
Size | Made to specification |
Uniclass | |
CAWS | H11/780 Thermal insulation |
Product range |
Form | Resin bonded rock fibre absorptive inserts. |
Rigidity | Flexible. |
Material | Die-cut dense foam with central heavy membrane.Used singly or in pairs. |
Acoustic performance | - |
Purpose | Absorber. |
Sound absorption | 44 dB Rw.Two closures with a 75 mm separating gap. |
Dimensions | - |
Size (length x width) | Made to specification. |
Profile | Along' frame section treatment. |
Country of material origin | United Kingdom |
