A-Z
Showing 1-36 of 44
DoP Jordahl Anchor Channels
PohlCon UK Ltd
DoP Jordahl Plain Back Channel Fixing System
PohlCon UK Ltd
DoP Jordahl Punching Shear Reinforcement JDA
PohlCon UK Ltd
DoP Jordahl Toothed Straps
PohlCon UK Ltd
DoP Pentaflex
PohlCon UK Ltd
DoP Pfeifer MoFi
PohlCon UK Ltd
DoP Pfeifer Slab Support PS-A
PohlCon UK Ltd
Elevator Insulation JAI
PohlCon UK Ltd
Elevator Insulation JAI is used to acoustically decouple load bearing connections from building structures. The product is designed to be of interest to acoustic engineers and clients who want to reduce structure borne noise transfer from operating machinery.
In elevator shafts the system is used for acoustically isolating guide rail and elevator machinery connections. This reduces noise levels experienced by occupants of rooms in the vicinity of the elevator shaft when the elevator is operating.
Fibernox V-Rod GFRP Reinforcement
PohlCon UK Ltd
Fibernox is a concrete reinforcement system available in a range of bar diameters. It is made of environmentally sustainable fibre reinforced material which has high corrosion and alkali resistance, combined with high tensile strength and with low weight. Available in wide range of bent shapes and lengths, it is also non-magnetic, non conductive, and has thermal insulating properties. H-BAU Fibernox is an effective alternative to stainless steel or galvanised reinforcing steel.
Glass fibre-reinforced plastic with a resin core
E-Modulus > 60 GPa, guaranteed tensile strength > 1.000 MPa
Sand impregnated surface for a stronger bond
Straight, helical, or bent rods
Certified by CAN CSA S807-10 in Canada
H-Bau Kunex Waterproofing Joint Tape Product Catalogue
PohlCon UK Ltd

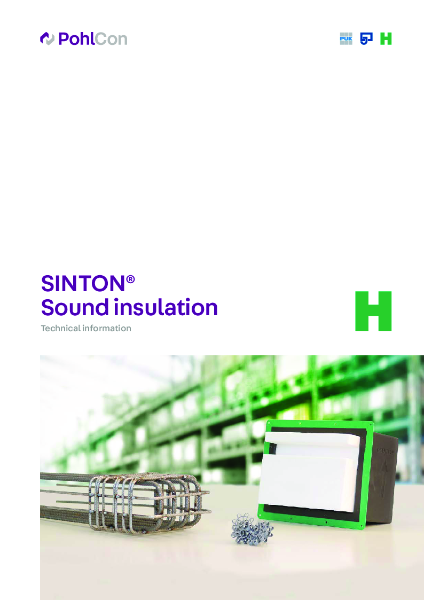

H-Bau Sinton Product Catalogue
PohlCon UK Ltd
Installation Instructions - Isopro
PohlCon UK Ltd
Installation Instructions - Pentaflex
PohlCon UK Ltd
Installation Instructions Jordahl Anchor Channels
PohlCon UK Ltd
Installation Instructions Jordahl Punching Shear Reinforcement JDA
PohlCon UK Ltd
Installation Instructions Pfeifer Column Shoe PCC - Construction Site
PohlCon UK Ltd
Installation Instructions Pfeifer Column Shoe PCC - Precast Factory
PohlCon UK Ltd
Installation Instructions Pfeifer MoFi
PohlCon UK Ltd
Installation Instructions Pfeifer Sandwich Panel Anchor SWA
PohlCon UK Ltd
Installation Instructions Pfeifer Slab Support PS-A
PohlCon UK Ltd
Isomur Wall Base Insulation
PohlCon UK Ltd
Isomur wall base insulation system is designed to create a thermal break between the base of an internal wall and its foundation. Available in a range of sizes the Isomur system replaces the bottom course of internal masonry to thermally insulate the internal walls and reduce the risk of heat loss, condensation and mould growth. If the foundation of the building is not insulated, the internal walls built on top of it will create a breach in the thermal envelope of the building.
Isopro thermal insulation elements
PohlCon UK Ltd
J-Sled Anchor Channel Fixings
PohlCon UK Ltd
J -Sled offers simple, accurate and adjustable connections to the top of composite metal decks floor slabs.
Dimensioned to enable easy installation to the top of permanent metal deck formwork, J -Sled is individually designed to meet the specific project needs of customers who need to reliably distribute high loads into thin composite slabs. Often used for top of slab connections for facades J -Sled may also be used for the support of other building equipment.
Based on the renowned JORDAHL® anchor channel technology J -Sled uses proven calculation methods to reliably design purpose-made adjustable connections that offer fast, convenient and safe solutions for today's high rise structures.
JDA punching shear reinforcement
PohlCon UK Ltd
JORDAHL® Punching Shear Reinforcement - JDA comprises of double-headed reinforcement anchors that are factory-welded to carrier rails. Installed into the concrete from above, the units are positioned in floor slabs and foundation slabs to distribute punching shear loads above column or pile locations.
Typically supplied in two to five stud configurations, JDA units replace the need for drop beams or closely spaced traditional link reinforcement. This reduces cost and reinforcement congestion. ETA-13/0136
Jordahl Channels and Accessories
PohlCon UK Ltd
Evaluated in ETA/09-0338 the Jordahl anchor channel range comprises hot-rolled, and cold rolled profiles. They are used with simple twist-in T-bolts to provide safe and adjustable connections to concrete structures for the resistance of tension and shear loads.
JTA K cold rolled anchor channels are used for connecting predominantly static loads.
JTA W hot-rolled anchor channels are used for structural connections with oscillating, seismic or dynamic loads.
Hot-rolled toothed anchor channels JXA W provide enhanced dynamic load resistance in the longitudinal direction of the channel.
JTB channels offer adjustable connections to concrete for self-drilling screws.
Plain back JM and JXM channels are used to provide adjustable connections to steel structures.
Pentaflex
PohlCon UK Ltd
Pentaflex KB® metal water bars are fully coated on both sides with a special coating to provide reliable waterproofing at concrete joints. The bond between the special coating and new concrete prevents water infiltrating the joint and an embedment depth of 30 mm is enough to withstand water pressure of up to 5.0 bar. The high elasticity of the coating ensures reliable sealing when the concrete structural components shrink. Pentaflex KB® units are typically supplied in 2m lengths with a choice of 167 mm or 80 mm widths. The bonding surfaces are protected with a film on both sides that is only removed immediately before concreting. Units are simply lapped along the concrete length and without the need to plan day joints for concrete pours.
European Product Assessment ETA-15/0003
Pfeifer Column Shoe Fixing System Product Catalogue
PohlCon UK Ltd
Pfeifer Concrete Cover Caps
PohlCon UK Ltd
Pfeifer FS Box Design Catalogue
PohlCon UK Ltd
Pfeifer FS Box Light Product Catalogue
PohlCon UK Ltd
Pfeifer LCON Bracket Fixing System Product Catalogue
PohlCon UK Ltd
Pfeifer Load Eye Product Data Sheet
PohlCon UK Ltd
Pfeifer Machine Lifting Loop
PohlCon UK Ltd
Lifting system for installing and removing heavy equipment
Pfeifer MoFi Product Catalogue
PohlCon UK Ltd
Pfeifer Sandwich Panel Anchor
PohlCon UK Ltd
Product Catalogue
Pfeifer Sandwich Panel Anchor - Design
PohlCon UK Ltd
Showing 1-36 of 44
