A-Z
Showing 1-24 of 24

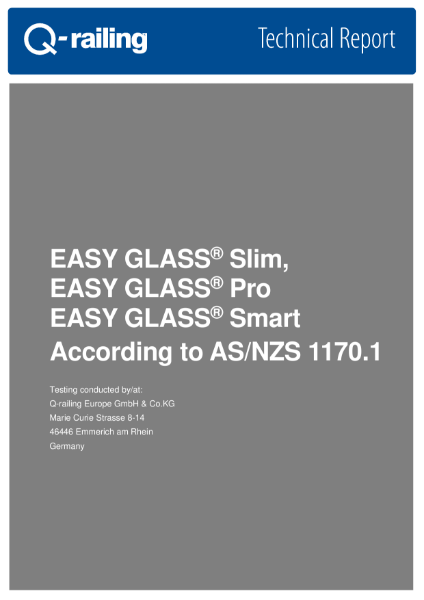

AS NZS 1170.1 Test report New Zealand by Q-railing
Folienwerk Wolfen GmbH
Several base shoe barriers were mounted on a steel test rig with sufficient strength to withstand the loads.
For each barrier we tested the horizontal line load since the concentrated load of 0.6 kN was not significant.
A horizontal line load is applied to the height of 1000 mm for the residential buildings, which represents the handrail height.
The load is generated by hydraulic or pneumatic cylinders and is measured with a load cell.
Loading was applied to the glass on a handrail height of 1.00m from finished floor level and the deflection was measured at the same height.
The impact test with an impactor having the mass of 50 kg was executed on the glass:
with the EN-12600 body:
at the horizontal middle of the glass, 250 mm below the handrail at a fall height
of 700/900/1200 mm
ASTM B117-ISO9227 test with 3,000 hours salt exposure - evguard® laminating interlayers - by TÜV Rheinland (Netherland)
Folienwerk Wolfen GmbH
The salt spray test according to ASTM B117/ISO 9227 was carried out by TÜV Rheinland (Netherland) on laminated glass samples made of products from the evguard® laminating film product family. The salt spray test was carried out over a time of 3,000 hours.
The glass laminates passed the test without delamination effects.

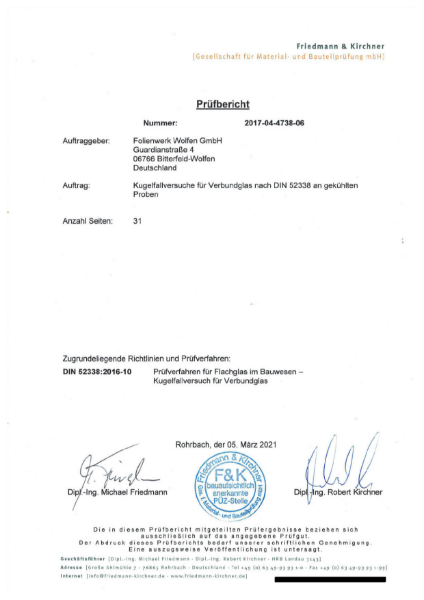

Ball drop test report DIN52338 at 0°C, -20°C and -40 °C at Friedmann&Kirchner
Folienwerk Wolfen GmbH
The performance of laminated safety glass made with different types of interlayers was investigated using the ball drop tests according the DIN52338 standard. The tests were carried out independently at the Friedmann & Kirchner institute (F&K). According to the norm, 500 mm x 500 mm of LSG samples have been tested with a 1 kg weight ball. These tests were done to evaluate the performance of LSG at cold temperatures.
The samples were exposed under the colder climate conditions of 0 °C, -20 °C and -40 °C prior to performing the ball drop tests.
evguard® laminating film and the combination of evguard®/MPE has successfully passed the test at all 3 testing temperatures. It has been confirmed that evguard® and evguard® MPE interlayers are premium products for safety and security applications.
BRE Certification Folienwerk Wolfen
Folienwerk Wolfen GmbH

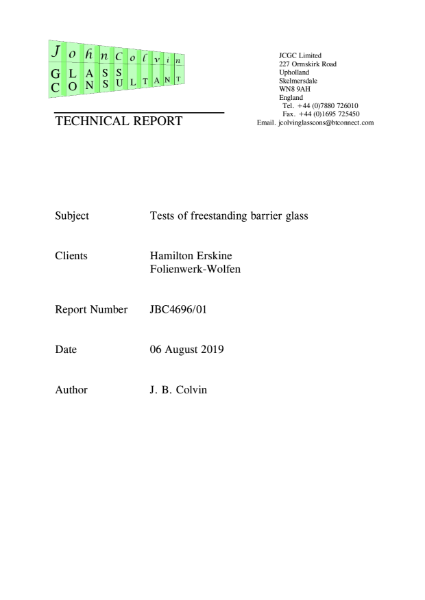

CRL Tests of freestanding barrier glass with evguard® laminating interlayer film
Folienwerk Wolfen GmbH
Hamilton Erskine required a number of different glass constructions to be tested as barrier glass. Encapsulated within the Evguard EVA in some of the glass constructions was a modified polyester (MPE) sheet in various thicknesses. The tests were conducted at the premises of CR Laurence using their balustrade load testing rig and observed by John Colvin of JCGC Limited.
Evguard EVA is stiffer than standard PVB, but not as stiff as DG41 PVB.
In a sufficiently rigid top mounted clamping system, 16.8 mm and 17.5 mm laminated toughened glass using Evguard would be appropriate to resist a 0.74 kN/m barrier load. In a sufficiently rigid top mounted clamping system, 21.5 mm laminated toughened glass using Evguard would be appropriate to resist a 1.5 kN/m barrier load.
DIBt General Building Authority Approval
Folienwerk Wolfen GmbH
DIN EN 12600 (Pendulum) for evguard® laminating interlayer film
Folienwerk Wolfen GmbH

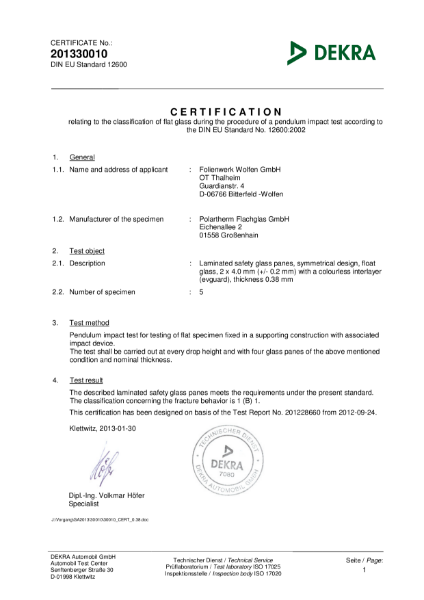

Certification relating to the classification of flat glass during the procedure of a pendulum impact test according to the DIN EU Standard No.12600:2002
Test object: Laminated safety glass panes, symmetrical design, float glass, 2x4.0mm (+/- 0,2mm) with a colorless interlayer (evguard), thickness 0.38mm
Test method: Pendulum impact test for testing of flat specimen fixed in a supporting construction with associated impact device. The test shall be carried out at every drop height and with four glass panes of the above mentioned condition and nominal thickness.
Test result: the described laminated safety glass panes meets the requirements under the present standard. The classification concerning the fracture behavior is 1(B)1.
DIN52338 - Ball drop at 0 °C, -20 °C and -40 °C at Friedmann&Kirchner, Germany
Folienwerk Wolfen GmbH
The brittle properties of glass to impact loads is a main disadvantage in many applications. Thanks to Laminated Safety Glasses (LSG), resistance to penetration at a broad temperature range gives protection against the risk of injury, vandalism, burglary and security. This makes the evguard® product family stand out in the laminated safety glass industry market as a premium product. There are several international standards in the glass industry to evaluate the safety performance of laminated safety glass and corresponding interlayers. In this one pager results are discussed from the ball drop testing according to the DIN 52338 standard on laminated safety glasses made with different types of interlayers.
EN 356 P3A (Ball Drop) for evguard® laminating interlayer film
Folienwerk Wolfen GmbH

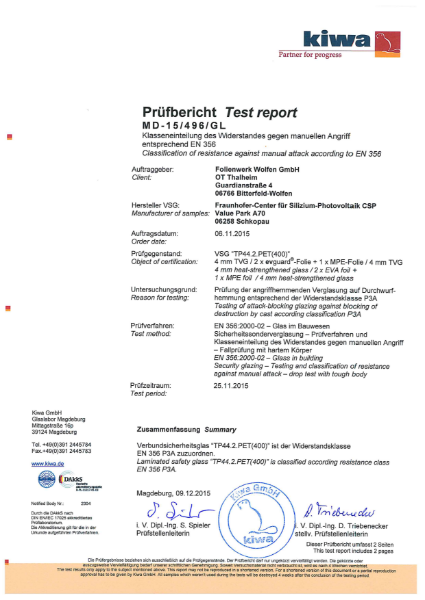

KIWA Test report
Classification of resistance against manual attack according to EN 356
Object of certification: 4mm heat-strengthened glass / 2 x evguard® + 1 x evguard® MPE / 4mm heat-strengthened
Reason for testing: Testing of attack-blocking glazing against blocking of destruction by cast according classification P3A
Test method: EN 356:2000-02 - Glass in building
Security glazing - Testing and classification of resistance against manual attack - drop test with tough body
Laminated safety glass "TP44.2.PET(400) is classified according resistance class EN 356 P3A
EN 356 P4A (Ball Drop) for evguard® laminating interlayer film and evguard®MPE multi-layer polyester insert
Folienwerk Wolfen GmbH
KIWA Test report
Classification of resistance against manual attack according to EN 356
Object of certification: 4mm float glass / 2 x evguard® laminating film + evguard® MPE / 4mm float glass
Reason for testing: Testing of attack-blocking glazing against blocking of destruction by cast according classification P4A
Test method: EN 356:2000-02 - Glass in building
Security glazing - Testing and classification of resistance against manual attack - drop test with tough body
evguard® colorless transparent laminating interlayer
Folienwerk Wolfen GmbH
evguard® colorless transparent
EVA interlayer for laminated safety, security and architectural glass
evguard® laminating finterlayer - High temperature behavior - up to a temperature of 240°C
Folienwerk Wolfen GmbH
LG Samples were tested at IFT Rosenheim according to the standard DIN EN ISO 12543-4 for behavior at high temperature. The samples have been exposed to a temperature of 100°C for 2 hours.
None of the specimen showed any kind of failure, bubbles or delamination.
To investigate the behavior of glass laminates at temperatures beyond the international standard test DIN EN ISO 12543-4, further tests were carried out.
Because evguard® laminating film is a crosslinking material, it behaves differently compared to other laminating films. LG samples were exposed stepwise up to a temperature of 240°C. The test up to at least 200°C was passed without any delamination effects or visual changes. Also at a temperature of 240°C, no delamination was detected, only a slight yellowing was observed.
evguard® laminating interlayers - Artificial UV aging (3,000 hours)
Folienwerk Wolfen GmbH
Laminated glass samples were tested. § In accordance with the norm DIN EN ISO 12543-4, the artificial aging by UV irradiation was carried out by means of a xenon-arc solar simulation spectrum with a power of 50 W / m2 in total UV
wavelength. The examined samples have been continuously irradiated for 3,000 hours. In this case, a control
measurement of the haze values and the light transmission was carried out for every 500 h. The artificial aging by UV radiation was carried out by Friedmann & Kirchner testing institute (Germany) on laminated glass samples made from a series of different laminates.
Both the LSG made with evguard® laminating interlayer and combination with evguard® MPE passed the test successfully. No visual change was observed.
evguard® MPE
Folienwerk Wolfen GmbH
evguard® MPE
Special high performance multi-layer polyester insert for heavy impact and printed laminated safety glass applications

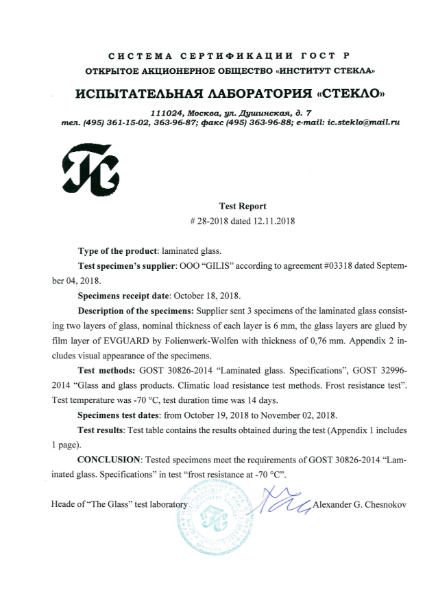

Frost resistant testing according to GOST 30826-2014 and GOST 32996-2014 of evguard® laminating interlayer
Folienwerk Wolfen GmbH
Frost resistance testing with evguard® laminating interlayer
Test methods: GOST 30826-2014 "Laminated glass, Specifications", GOST 32996-2014 "Glass and glass products. Climatic load resistance test methods. Frost resistance test". Test temperature was -70degC, test duration time was 14 days. CONCLUSION: Tested specimens meet the requirements of GOST 30826-2014 "Laminated glass. Specifications" in test "frost resistance at -70degC".
ISO 50001 Folienwerk Wolfen
Folienwerk Wolfen GmbH
ISO 9001
Folienwerk Wolfen GmbH

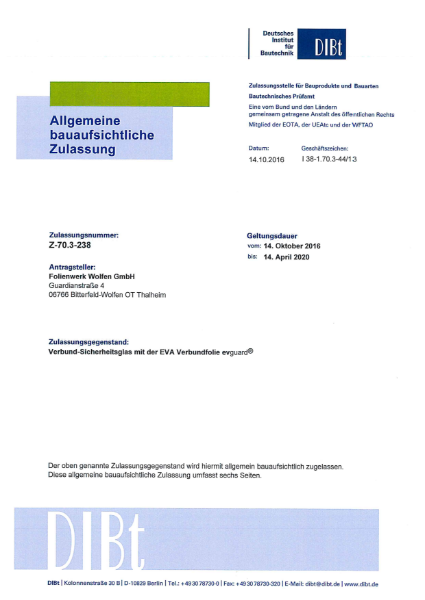

National technical approval (abZ) DIBt for evguard® laminating interlayer
Folienwerk Wolfen GmbH
If you wish to use your construction product Germany-wide with a national technical approval, DIBt the German approval body for non-regulated construction products is your single point of contact.
Safety Data Sheet evguard® colorless transparent EVA interlayer for laminated safety, security and architectural glass
Folienwerk Wolfen GmbH

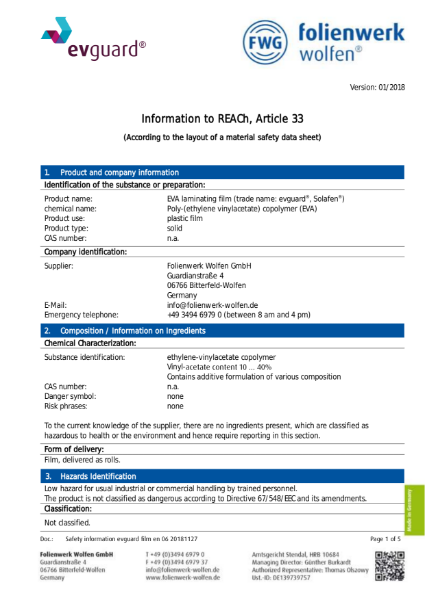

Safety Data Sheet of evguard® colorless transparent EVA interlayer for laminated safety, security and architectural glass
Safety Data Sheet of evguard® MPE Special high performance multi-layer polyester insert for heavy impact and printed laminated safety glass applications
Folienwerk Wolfen GmbH

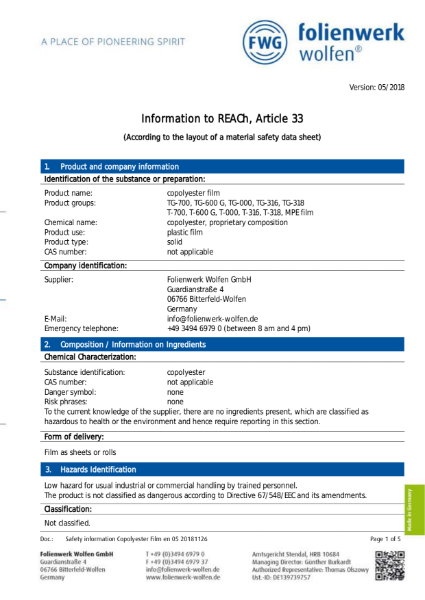

Safety Data Sheet of
evguard® MPE Special high performance multi-layer polyester insert for heavy impact and printed laminated safety glass applications
Sound reduction testing according to ISO 10140-2 at MFPA Leipzig of evguard® laminating interlayer
Folienwerk Wolfen GmbH
Sound reduction testing according to ISO 10140-2 at MFPA Leipzig
Sound insulation glass made with evguard® laminating film with a 44.2 construction achieves a sound insulation rate of at least 37 dB without additional sound insulating layers. (ISO 10140-2/MFPA Leipzig)
interlayer, laminating interlayer, safety and security laminated glass interlayer, evguard® interlayer, structural interlayer, functional interlayer
TAS 201-94 and FBC 2010 (Miami Dade, Blackwater, Large Missile, Cycling) for evguard® laminating interlayer and evguard® MPE polyester, Additional information
Folienwerk Wolfen GmbH
TAS 201-94 and FBC 2010 (Miami Dade, Large Missile, Cycling) evguard® laminating interlayer and evguard® MPE polyester

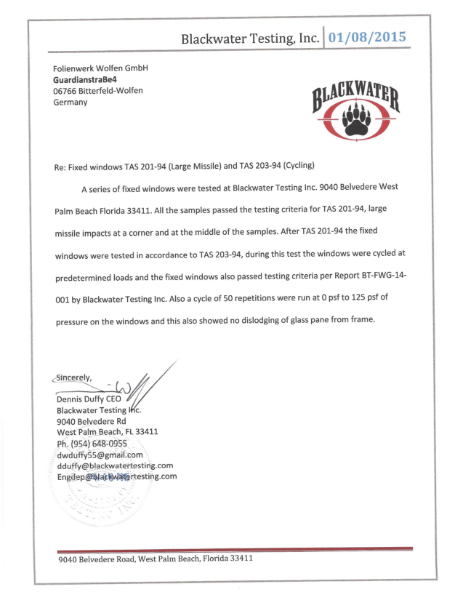

Fixed windows TAS 201-94 (Large Missile)and TAS 203-94 (Cycling)
Fixed windows were tested at Blackwater Testing Inc., Florida 33411. All the samples passed the testing criteria for TAS 201-94, large missile impacts at a corner and at the middle of the samples. After TAS 201-94 the fixed windows were tested in accordance to TAS 203-94, during this test the windows were cycled at predetermined loads and the fixed windows also passed testing criteria per Report BT-FWG-14-001 by Blackwater Testing Inc. Also a cycle of 50 repetitions were run at 0 psi to 125 psi of pressure on the windows and this also showed no dislodging of glass pane from frame.
Test report Salt spray test TÜV Rheinland (Netherland), Report 89214852
Folienwerk Wolfen GmbH
Laminated glass samples were tested. The samples have been exposed to continuous salt spray for 3,000 hours in a salt spray test according to ASTM B117/ISO 9227. In the test chamber of the salt spray cabinet, which is heated to 35 ± 1°C, a solution of 5 ± 1 percent by mass of sodium chloride with a pH 6.5 7.2 is atomized continuously. As a result of spraying this solution, the relative humidity in the test cabinet is more than 95 %.
The samples have been exposed for a time of 3,000 hours. In time, all panels show more or less iridizing colors due to the aggressive attack of salt spray on the top coating on the glass.
None of the samples show delamination.

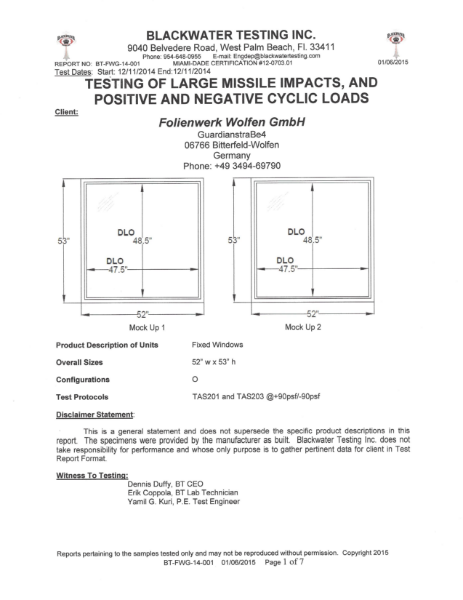

Testing of Large Missile Impacts, and Positive and Negative Cyclic Loads TAS 201-94-TAS 203-94 and FBC 2010, Miami Dade for evguard® laminating interlayer - evguard® MPE polyester
Folienwerk Wolfen GmbH
Miami Dade Testing.
evguard® laminating interlayer and evguard® MPE multi-layer polyester.
Testing of Large Missile Impacts, and Positive and Negative Cyclic Loads TAS 201-94 and TAS 203-94 and FBC 2010
IMPACTS: The samples were impacted in accordance with TAS 201-94 and FBC 2010. The samples did not fail. CYCLIC WIND LOADS: The samples were subjected to cyclic wind loads in accordance with TAS 203-94 and FBC 2010. The samples successfully completed the cyclic wind loads to verify a Design Load of +90.00 PSF/-90.00 PSF and for R&D purposes they were cycled successfully at +/-120 PSF were no tearing of interlayer was viewed or any frame pull outs were observed. The "Fixed Window" product was tested in accordance with and meets the requirements to comply with Florida Building Code 2010.
Showing 1-24 of 24
