Domus Facades Ltd

Typical assembly section details

Typical assembly section details

Typical assembly section details

The Kerf Cut Anchoring System is an ideal support system for a wide range of agglomerate stone, terrazzo and natural stone panels with a thickness range from 30mm to 50mm manufactured to BS1469. The system is designed for both stack & brick bond patterns whilst maintaining the standard 4 point connection for each panel to ensure load transfer equilibrium. Stress reduction and human error have been guiding principles of Domus Facades new range of support systems. Just some of the DFS06 features include: • Intuitive set out guide • Panel clip independence • On site adaptions • Guidance • Single purpose use brackets • Symmetrical loading • Stress reduced brackets

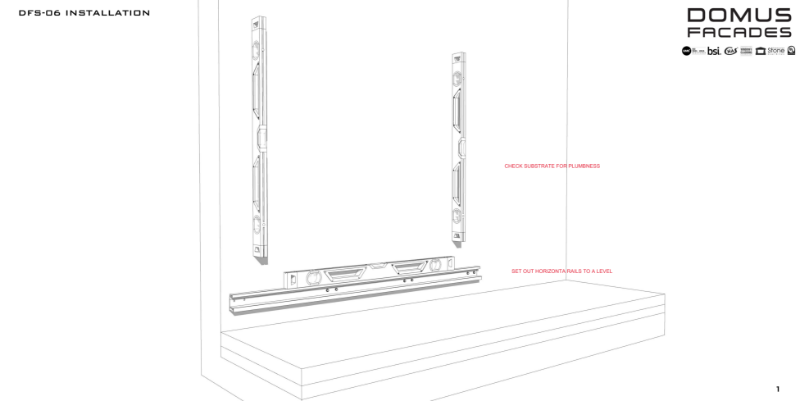

How to Install the DFS06 Support System

Tested by UL the Mortice anchoring is an ideal support system for a wide range of agglomerate stone, terrazzo and natural stone panels with a thickness range from 30mm to 50mm manufactured to BS1469. The system is suitable for both standard grid and random pattern facades whilst ensuing 4 points of connection to each panel. Stress reduction and human error have been guiding principles of Domus Facades new range of support systems. Just some of the DFS06 features include: • Intuitive set out guide using psychological mapping principles • Panel clip independence do deal with production and installation tolerances • Safe Practice - The system is designed to work with CDM guidance and safe handling practice

Typical assembly section details
