Lamella slabs are generally used to form the core of structural or composite panels.

Standard rock mineral fibre in its originally produced form has excellent fire, thermal and acoustic insulation properties. For improved structural performance, the rock mineral fibre is cut and reformed into ‘lamellas’ where the fibres run perpendicular to the face of the panel, giving a product with far greater compressive strength and resistance to shear.

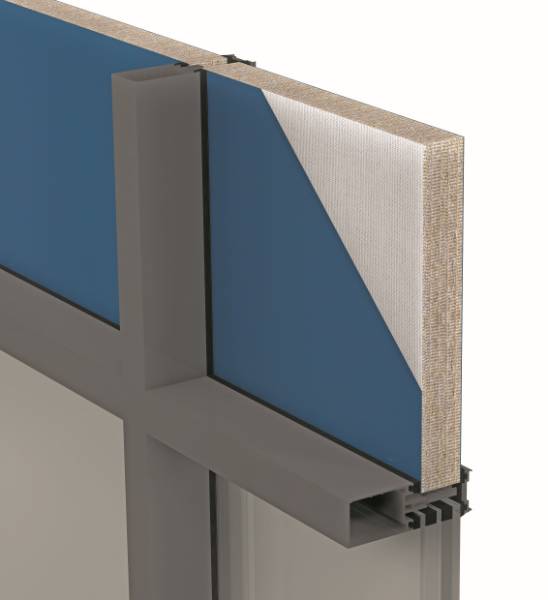

An open weave glass fibre reinforcement mesh is applied to both faces in order to provide structural strength to the pad whilst allowing the adhesive to form a bond between the fibres of the core and the facing used in the construction of the composite panel. Specifically designed so that the rock fibres interface with the skins of the bonded panel enabling a good adhesive take up into the structure of the rock mineral fibre and results in a high shear strength.

The slab may be supplied flat or with profiled faces on one or both sides. Edge rebate details can be machined to bespoke requirements.

Features and benefits:

High density stone wool lamella core.
A range of densities available.
Close tolerance dimensions available if required.
Twin Scrim Lamella Pads can be supplied in various rock mineral fibre grades ranging from density 100 kg/m³ to 200 kg/m³. A wide range of other grades are available on request.
Lamella 100 For use with profiled metal skins or flat metal steel thickness 1.0 mm minimum or aluminium thickness 1.6 mm minimum.
Lamella 140 For use with flat metal skins of steel thickness 0.5 mm minimum or aluminium thickness 0.9 mm minimum.
Supplied in dimensions to suit the customer's bespoke requirements.
Provides high rigidity for composite or sandwich panels.
Can assist in the achievement of non-combustibility in the overall composite panel.
Can enhance the acoustic performance of the overall composite panel.
