Summary

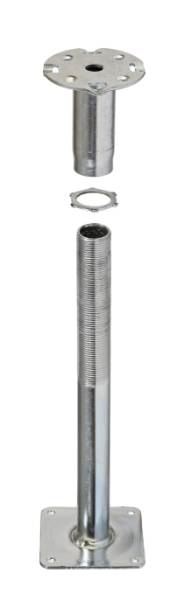

Mild steel pedestals.
-
-
Application
A range of mild steel pedestals typically, trusted under floors that require support for a heavy loads. Applications include:
- Data centres.
- Airports.
- Service corridors.
- Computer rooms.
- Communication rooms.
- Stages.
- Large ramps.
- Call centres.
- Print rooms.
-
-
Description
A range of mild steel pedestals designed to meet the requirements of PSA MOB PF2 PS/ PU heavy grade specification and have been tested in conjunction with a variety of panels. Including Bathgate, Kingspan, Lindner and JVP.
They are manufactured in a standard range of heights from 75–1525 mm with adjustments that provide a small overlap between heights. Bespoke height ranges are available, contact manufacturer for details.
Features and benefits:
- Fully compatible with screw-down panels.
- Adjustable height ranges.
- Quick installation.
- High strength and rigidity.
- Special finishes including the bespoke Astec 3000 finish are available to give protection against zinc whiskers.
-
-
Color
Silver
-
-
Finish
Zinc plated, Other
-
-
Material
Steel
-
-
Shape
Other
-
-
Length
Bespoke
-
-
Width
Bespoke
-
-
Height
Bespoke
-
-
Warranty description
50 year
-
-
SKU Code
X3, X4, X5, X6, X7, X8, X9, X10, X11, X12, X13, X14, X15, X16, X17, X18, X19, X20, X21, X22, X23, X24, X25, X26, X27, X28, X29, X30, X31
-
-
Specification
Classification data
Class
To PSA MOB PF2 PS/SPU, heavy-grade.
-
-
Pedestal type
Fixed head floor pedestals.
-
-
Materials
Zinc-plated steel.
-
-
Model
Adjustable.
-
-
Height
75–115 mm.
-
-
Limits on adjustability
±40 mm.
-
-
Locking
Required.
-
-
Additional properties
Base
Mild steel pressing 100 x 100 x 3 mm welded to 31.75 mm mild steel tube threaded for 125 mm.
-
-
Head
Mild steel disc 90 x 3 mm (diameter x thickness) welded to a 38.1 mm mm mild steel tube reduced one end to take the mating thread of the base.
-
-
Locknut
Mild steel pressing 3 mm thick tapped to mate with the base thread.
-
-
Applied finish
Zinc plated and clear passivated., Astec 3000., Nickel.
-
-
Sustainability data
Contains Red List materials
No
-
-
Country of material origin
United Kingdom
-
-
Country of product manufacture
United Kingdom
-
-
Carbon dioxide equivalent
Normalized unit
(kg CO₂ eq/kg) A1–A3 ('Production stage') :
4.78
A1–A3 ('Production stage') :
-
A1–A3 ('Production stage') :
-
Declared unit
Self-declared
A1–A3 ('Production stage') :
4.78
Self-declared
A1–A3 ('Production stage') :
-
Self-declared
A1–A3 ('Production stage') :
-
Recyclability
Fully recyclable
-
-
Recycled content
0 %
-
-
