Bivio - Clay Facing Brick
Bivio - Clay Facing Brick

Last verified by manufacturer over a year ago

Vandersanden Brick

WF

Last verified by manufacturer over a year ago

Vandersanden Brick

DF

Summary

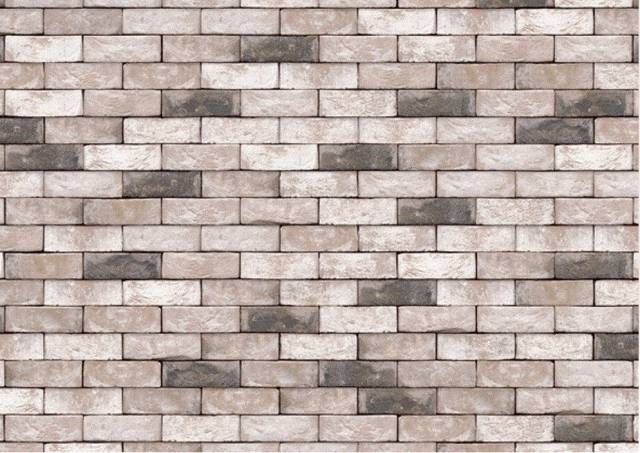

A light grey facing brick with multi-shades of beige, white and dark grey.
A light grey facing brick with multi-shades of beige, white and dark grey.
Description

A mix of different kinds of clay forms the basis for this facing brick. Löss, the local loam of Aeolian origin dating from the Ice Age, is the most important base material. This löss mainly consists of a silt-like fraction, suited ideally for the manufacturing of hand form bricks. By using specific sand types for surface covering, the desired colour is achieved.


Features and benefits:

  • Hand formed.
  • Multi-shade.
  • Seven joint styles available.

A mix of different kinds of clay forms the basis for this facing brick. Löss, the local loam of Aeolian origin dating from the Ice Age, is the most important base material. This löss mainly consists of a silt-like fraction, suited ideally for the manufacturing of hand form bricks. By using specific sand types for surface covering, the desired colour is achieved.


Features and benefits:

  • Hand formed.
  • Multi-shade.
  • Seven joint styles available.
Color
Grey, White, Beige
Grey, White, Beige
Finish
Sanded-coated
Sanded-coated
Material
Clay
Clay
Shape
Rectangle
Rectangle
Size
210 x 100 x 50 mm, 215 x 100 x 65 mm
210 x 100 x 50 mm, 215 x 100 x 65 mm
SKU Code
152A3
152A3

Specification

Standard
To BS EN 771-1.
To BS EN 771-1.
Brick description
Facing brick.
Facing brick.
Appearance
Light grey, with beige, white and dark grey shades, with a sanded-coated and grained structure.
Light grey, with beige, white and dark grey shades, with a sanded-coated and grained structure.
Work size (length x width x height)
212 x 101 x 51 mm.
214 x 101 x 65 mm.
Tolerances
-
-
Mean value
T2.
T2.
Range
R1.
R1.
Compressive strength
-
-
Mean compressive strength (minimum)
≥20 N/mm².
≥20 N/mm².
Durability designation
F2.
F2.
Density
-
-
Gross dry
1530 kg/m³.
1530 kg/m³.
Net dry
1640 kg/m³.
1640 kg/m³.
Water absorption
≤17% m/md.
≤17% m/md.
Configuration
Frogged.
Frogged.
Thermal conductivity
≤0.55 W/m·K.
≤0.55 W/m·K.
Water vapour permeability
5/10 µ.
5/10 µ.
Reaction to fire
Class A1 to BS EN 13501-1.
Class A1 to BS EN 13501-1.

Additional properties

Active soluble salts
S2.
S2.
Jointing
Beige., Light grey., Dark grey., Joint free., White., Black/ Anthracite.
Beige., Light grey., Dark grey., Joint free., White., Black/ Anthracite.

Sustainability data

Country of product manufacture
Belgium
Belgium
