Hagen WS - Clay Facing Brick
Hagen WS - Clay Facing Brick
Hagen WS - Clay Facing Brick

Last verified by manufacturer over a year ago

Vandersanden Brick

DF

Last verified by manufacturer over a year ago

Vandersanden Brick

WF

Last verified by manufacturer over a year ago

Vandersanden Brick

NF

Summary

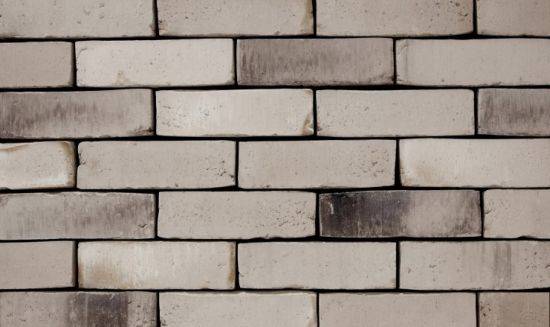

Light grey brick with white and grey shades.
Light grey brick with white and grey shades.
Light grey brick with white and grey shades.
Description

A mix of different kinds of clay forms the basis for this facing brick. This special mix of clays is suited for the manufacturing of hand form bricks. Due to the use of the water-struck-technique the facing bricks sight will appear textured without sand coated surface.


Features and benefits:

  • Water-struck technique.

A mix of different kinds of clay forms the basis for this facing brick. This special mix of clays is suited for the manufacturing of hand form bricks. Due to the use of the water-struck-technique the facing bricks sight will appear textured without sand coated surface.


Features and benefits:

  • Water-struck technique.

A mix of different kinds of clay forms the basis for this facing brick. This special mix of clays is suited for the manufacturing of hand form bricks. Due to the use of the water-struck-technique the facing bricks sight will appear textured without sand coated surface.


Features and benefits:

  • Water-struck technique.
Color
Grey, White
Grey, White
Grey, White
Finish
Water-struck
Water-struck
Water-struck
Material
Clay
Clay
Clay
Shape
Rectangle
Rectangle
Rectangle
Size
215 x 102 x 65 mm, 210 x 100 x 50 mm, 240 x 115 x 70 mm
215 x 102 x 65 mm, 210 x 100 x 50 mm, 240 x 115 x 70 mm
215 x 102 x 65 mm, 210 x 100 x 50 mm, 240 x 115 x 70 mm
SKU Code
501A0
501A0
501A0

Specification

Standard
To BS EN 771-1.
To BS EN 771-1.
To BS EN 771-1.
Brick description
Facing brick.
Facing brick.
Facing brick.
Appearance
Light grey brick with white and grey shades, textured.
Light grey brick with white and grey shades, textured.
Light grey brick with white and grey shades, textured.
Work size (length x width x height)
215 x 101 x 68 mm.
213 x 101 x 52 mm.
242 x 113 x 73 mm.
Tolerances
-
-
-
Mean value
T2.
T2.
T2.
Range
R1.
R1.
R1.
Compressive strength
-
-
-
Mean compressive strength (minimum)
≥20 N/mm².
≥20 N/mm².
≥20 N/mm².
Durability designation
F2.
F2.
F2.
Density
-
-
-
Gross dry
1880 kg/m³.
1880 kg/m³.
1880 kg/m³.
Tolerance
D1.
D1.
D1.
Water absorption
≤12% m/md.
≤12% m/md.
≤12% m/md.
Configuration
Solid.
Solid.
Solid.
Thermal conductivity
≤0.56 W/m·K.
≤0.56 W/m·K.
≤0.56 W/m·K.
Water vapour permeability
50/100 µ.
50/100 µ.
50/100 µ.
Reaction to fire
Class A1.
Class A1.
Class A1.
Net dry
-
1950 kg/m³.
1950 kg/m³.

Additional properties

Active soluble salts
S2.
S2.
S2.
Jointing
Grey., Joint free., Light grey., White., Beige., Black/ Anthracite.
Grey., Joint free., Light grey., White., Beige., Black/ Anthracite.
Grey., Joint free., Light grey., White., Beige., Black/ Anthracite.

Sustainability data

Country of product manufacture
Netherlands
Netherlands
Netherlands
