Summary
Slimline perimeter seals featuring sweeping curves.
Slimline perimeter seals featuring sweeping curves.
Application
Suitable use for head and jambs of single swing doors.
Suitable use for head and jambs of single swing doors.
Description

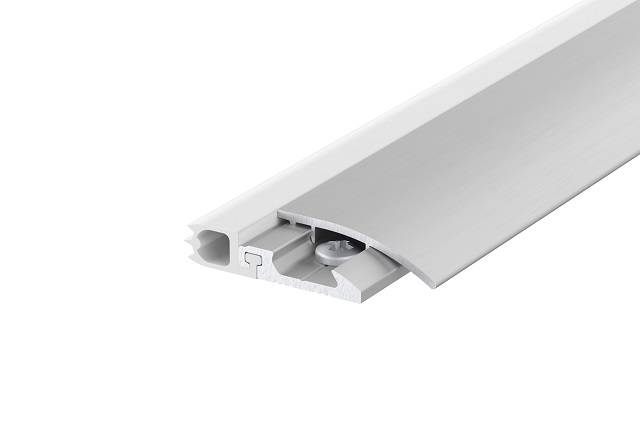

Slimline perimeter seals featuring sweeping curves.
Designed with a seamless curve for enhanced aesthetics, with proven performance for acoustic and smoke containment when installed around the head and jambs of doors.
Features and benefits:
- The decorative snap-on cover plate completely conceals fixings and is available in a range of finishes.
- Fixing: Secured via stainless steel radiused end plates (21 x 57 mm). Two coloured bands on the adjuster indicate a nominal 10 mm gap (blue) and the maximum 18 mm gap (red), but any gap size from 1–18 mm can be accommodated.
- Location, Head and jambs of single swing doors.
Slimline perimeter seals featuring sweeping curves.
Designed with a seamless curve for enhanced aesthetics, with proven performance for acoustic and smoke containment when installed around the head and jambs of doors.
Features and benefits:
- The decorative snap-on cover plate completely conceals fixings and is available in a range of finishes.
- Fixing: Secured via stainless steel radiused end plates (21 x 57 mm). Two coloured bands on the adjuster indicate a nominal 10 mm gap (blue) and the maximum 18 mm gap (red), but any gap size from 1–18 mm can be accommodated.
- Location, Head and jambs of single swing doors.
Color
Bronze, Silver
Bronze, Silver
Finish
Anodized
Anodized
Material
Aluminium
Aluminium
SKU Code
AAS7501, AAS7502
AAS7501, AAS7502
Specification
Standard
To BS EN 1634-3 and BS 476–31.1.
To BS EN 1634-3 and BS 476–31.1.
Third party certification
Certifire CF5179.
Certifire CF5179.
Functions
Acoustic and smoke seals.
Acoustic and smoke seals.
Size
6 x 34.5 mm
6 x 31.5 mm
Materials
-
-
Seals
Silicone gasket.
Silicone gasket.
Carriers
Anodized aluminium.
Anodized aluminium.
Colour
Bronze., Silver.
Bronze., Silver.
Additional properties
Length
1000 mm., 2100 mm.
1000 mm., 2100 mm.
Acoustic performance
To BS EN ISO 10140-2, 31 dB.
To BS EN ISO 10140-2, 31 dB.
