Summary

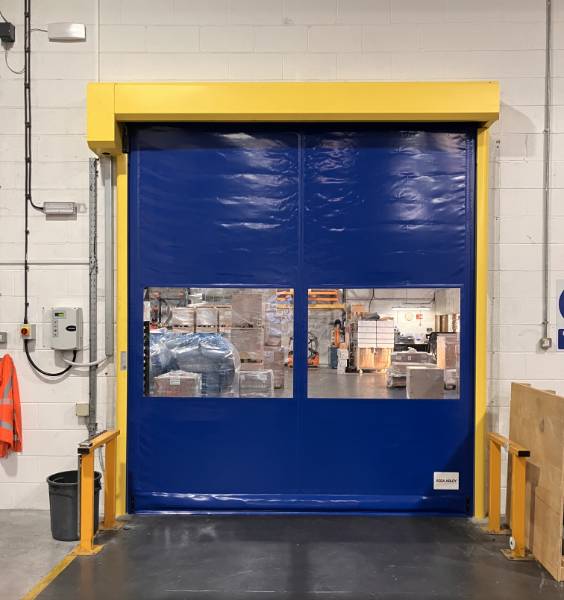

Speed, safety and design combined in one of the most versatile high speed door designs.
-
-
Application
Internal high-speed doors are used across various industries to optimise workflow, control environmental conditions, and ensure safety. Below are common applications and environments where internal high-speed doors are typically used:
- Manufacturing Facilities
- Automotive Plants
- Warehouses & Distribution Centres
- Cold Storage / Refrigerated Areas
- Cleanrooms (Pharmaceutical / Electronics)
- Food & Beverage Industry (Processing Areas)
- Packaging & Storage Zones
- Sterile Areas / Labs / Pharmacies
- Data centres
- Retail backrooms (Separate storage from public areas while allowing quick access)
-
-
Description
Speed, safety and design combined in one of the most versatile high speed door designs.
Features and benefits:
- For internal openings up to 4500 x 4600 mm.
- Equipped with an intelligent pressure recognition system.
- Opening speed up to 2.3 m/s.
- Frequency converter control for smooth door movement.
- Sustainability Plus: additional insulated curtain and column seals available on request.
- Equipped with a break-away and automatic reset system. The curtain reintroduces itself after a crash to reduce downtime and maintenance.
- The soft bottom profile has no rigid parts, it gives way should an obstruction be in the line of closing.
- If the door is hit, the fabric curtain absorbs the impact and releases itself from the side guides to limit damage to the door and surrounding area.
-
-
Color
Yellow, Red, Green, Black, White, Grey, Orange, Blue, Cream, Silver
-
-
Finish
Smooth, Coated
-
-
Material
Polyester, Steel
-
-
Shape
Rectangle, Square
-
-
Width
Bespoke
-
-
Height
Bespoke
-
-
Specification
Classification data
Speed (minimum)
-
-
-
Opening
Up to 2.3 m/s.
-
-
Closing
Up to 0.8 m/s.
-
-
Format
Roll up.
-
-
Arrangement
Face-fitted across opening.
-
-
Curtain material
Polyester fabric, 0.7 mm-thick (900 g/m²).
-
-
Frame and guides
-
-
-
Material
Steel.
-
-
Finish and colour
Galvanized frame., Other.
-
-
Operation
Automatic.
-
-
Accessories
None., Small windows, clear PVC, 1 mm-thick, 980 x 300 mm., Big windows, clear PVC, 1 mm-thick, 920 x 1600 mm., Vision panel, 920 mm high; 1000 mm from floor level., Micromesh windows, 980 x 300 mm., Extra sealing.
-
-
Additional properties
Dimensions
-
-
-
Power supply
Frequency converter: 230 V, single-phase, 16 A.
Frequency: 50/ 60 Hz.
Power of motor 0.6 kW.
Maximum current for 24 V d.c. accessories: 0.5 A.
IP degree for control: IP55.
Frequency: 50/ 60 Hz.
Power of motor 0.6 kW.
Maximum current for 24 V d.c. accessories: 0.5 A.
IP degree for control: IP55.
-
-
Operation
Number of operations: 500 cycles/day, maximum 100 cycles/hour.
-
-
Thermal Conductivity:
5.8 W/m²K.
-
-
Curtain colour
Red, RAL 3000., Blue, RAL 5010., Orange, RAL 2004., Grey, RAL 7038., Yellow, RAL 1021., Green, RAL 6026., Cream, RAL 1014., White, RAL 9010., Light Blue, RAL 5012., Black, RAL 9005., Grey, RAL 7024., Grey, RAL 7022.
-
-
Sound reduction
~12 dB.
-
-
Operating temperature
Control system: -5°C to +50°C.
Curtain: +5°C to +50°C.
Curtain: +5°C to +50°C.
-
-
Wind load
To EN 12424:
· Class 2 for daylight width ≤3000 mm x daylight height 4600 mm;
· Class 1 for daylight width 3000–4500 mm x daylight 4600 mm.
· Class 2 for daylight width ≤3000 mm x daylight height 4600 mm;
· Class 1 for daylight width 3000–4500 mm x daylight 4600 mm.
-
-
Safety
To EN 12453, CMS (Curtain Monitoring System) with stationary photocell., To EN 12453, CMS Plus (Curtain Monitoring System with light curtain).
-
-
Cover
Not required., PVC column cover in black., Galvanized steel barrel cover., Galvanized steel motor cover.
-
-
Sustainability data
Material
Polyester, Steel
-
-
