VELFAC Ribo Wood/Aluminium Patio Doors
VELFAC Ribo Wood/Aluminium Patio Doors

Verified 4 months ago

Velfac Windows

VELFAC Ribo wood/aluminium patio doors

Verified 4 months ago

Velfac Windows

VELFAC Ribo wood/aluminium patio doors with SBD/PAS24

Summary

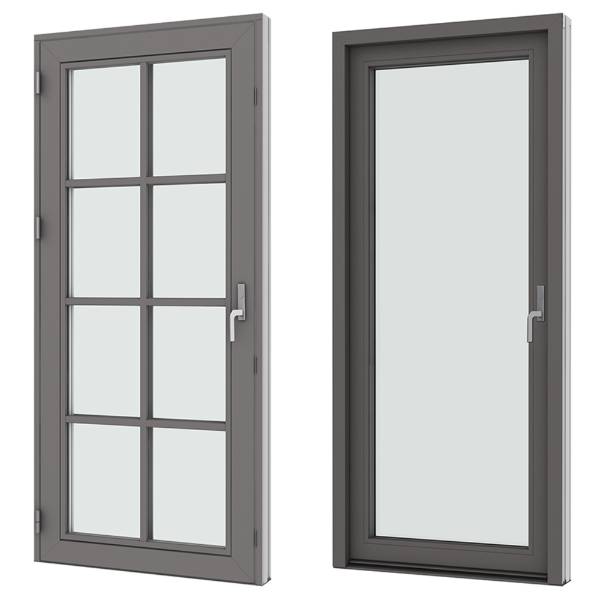

Glazed patio doors in wood / aluminium. For balconies in multi-storey buildings, French balconies, patios and domestic gardens.
Glazed patio doors in wood / aluminium. For balconies in multi-storey buildings, French balconies, patios and domestic gardens.
Application

Suitable for use as inward opening patio door for French balconies, and as inward or outward opening access door to balconies in multi-storey buildings, patios and domestic gardens.

VELFAC Ribo patio doors can be coupled with VELFAC 200 windows to create glazed screens.

Suitable for use as inward opening patio door for French balconies, and as inward or outward opening access door to balconies in multi-storey buildings, patios and domestic gardens.

VELFAC Ribo patio doors can be coupled with VELFAC 200 windows to create glazed screens.

Description

Composite wood/ aluminium patio doors.


Features and benefits:

  • SBD/PAS24 certified.
  • Can be installed as either inward or outward opening.
  • Available as single or double leaf.
  • Available as triple or double glazed.
  • The patio doors can be divided by glazing bars with the resulting apertures glazed or panelled.


Vision glazing:

  • Doors delivered pre-glazed with 32 mm or 52 mm toughened/ laminated glass where required, allowing for 6.8 mm laminate where secured by design is required. Insulating glass units conform to:
  • BS 952 Glass for glazing – Part 1: Classification.
  • BS EN 572 Glass in building – Basic soda lime silicate glass products – Part 2: Float glass.
  • BS EN 12150 Glass in building – Thermally toughened soda lime silicate safety glass – Part 1: definition and description.
  • BS EN ISO 12543 Glass in building – Laminated safety glass.
  • BS EN 12600 Specification for impact performance.
  • BS EN 1279 Glass in building – Insulating glass units.
  • BS 6262 Code of practice for glazing for buildings.
  • BS 6206 Specification for impact performance requirements for flat safety glass and safety plastics for use in buildings.
  • BS EN 6180 Barriers in and about buildings – Code of practice.


The VELFAC Ribo patio doors are only available with an order for VELFAC 200.

Composite wood/ aluminium patio doors.


Features and benefits:

  • SBD/PAS24 certified.
  • Can be installed as either inward or outward opening.
  • Available as single or double leaf.
  • Available as triple or double glazed.
  • The patio doors can be divided by glazing bars with the resulting apertures glazed or panelled.


Vision glazing:

  • Doors delivered pre-glazed with 32 mm or 52 mm toughened/ laminated glass where required, allowing for 6.8 mm laminate where secured by design is required. Insulating glass units conform to:
  • BS 952 Glass for glazing – Part 1: Classification.
  • BS EN 572 Glass in building – Basic soda lime silicate glass products – Part 2: Float glass.
  • BS EN 12150 Glass in building – Thermally toughened soda lime silicate safety glass – Part 1: definition and description.
  • BS EN ISO 12543 Glass in building – Laminated safety glass.
  • BS EN 12600 Specification for impact performance.
  • BS EN 1279 Glass in building – Insulating glass units.
  • BS 6262 Code of practice for glazing for buildings.
  • BS 6206 Specification for impact performance requirements for flat safety glass and safety plastics for use in buildings.
  • BS EN 6180 Barriers in and about buildings – Code of practice.


The VELFAC Ribo patio doors are only available with an order for VELFAC 200.

Product certifications
Color
Clear, Beige, Black, Blue, Brown, Copper, Cream, Gold, Green, Grey, Ivory, Orange, Pink, Purple, Red, Silver, Turquoise, White, Yellow, Other
Clear, Beige, Black, Blue, Brown, Copper, Cream, Gold, Green, Grey, Ivory, Orange, Pink, Purple, Red, Silver, Turquoise, White, Yellow, Other
Finish
Anodized, Powder-coated
Anodized, Powder-coated
Material
Aluminium, Wood, Glass
Aluminium, Wood, Glass
Shape
Rectangle
Rectangle
Length
Bespoke
Bespoke
Width
Bespoke
Bespoke
Height
Bespoke
Bespoke
Warranty description
Five year
Five year

Specification

Classification data
Standard
To EN 14351-1:2006 + A2:2016.
To EN 14351-1:2006 + A2:2016.
Application
-
SBD/PAS24 certified.
Conformity
-
Certification by accredited third party certification body.
Frame
-
-
Materials
Wood core with aluminium sleeve.
Wood core with aluminium sleeve.
Threshold
18 mm., 22.5 mm, 45 mm.
18 mm., 22.5 mm, 45 mm.
Door leaf
-
-
Thickness
80 mm.
80 mm.
Panel details
Sandwich panel., Vision glazing.
Sandwich panel., Vision glazing.
Perimeter seals
In accordance with BS 6262-4 clear 52 mm triple and 32 mm double glazing., In accordance with BS 6262-4 clear 52 mm triple glazing., In accordance with BS 6262-4 clear 32 mm double glazing.
In accordance with BS 6262-4 clear 52 mm triple and 32 mm double glazing., In accordance with BS 6262-4 clear 52 mm triple glazing., In accordance with BS 6262-4 clear 32 mm double glazing.
Finish
Powder coating to BS 6496., Anodized.
Powder coating to BS 6496., Anodized.
Colour
-
-
External
Bronze., Silver., RAL.
Bronze., Silver., RAL.
Internal
Water-based diffusion open timber surface treatment.
Water-based diffusion open timber surface treatment.
Hardware
Espagnolette system with three closing points and handle operated brake., Three adjustable grey hinges., 180° hinges., Internal handle only., Internal+external handle and lock., Espagnolette locking system with three closing points., Key-lock or child-lock., Trickle vent.
Espagnolette system with three closing points and handle operated brake., Three adjustable grey hinges., 180° hinges., Internal handle only., Internal+external handle and lock., Espagnolette locking system with three closing points., Key-lock or child-lock., Trickle vent.

Additional properties

UK exposure category
To BS 6375-1, 1600 Pa.
To BS 6375-1, 1600 Pa.
Air permeability
To BS EN 1026, 600 Pa (positive and negative pressure).
To BS EN 1026, 600 Pa (positive and negative pressure).
Watertightness
Tested to BS EN 1027.
Inward opening: single leaf: 600 Pa, double leaf: 300 Pa.
Outward opening: single leaf: 300 Pa, double leaf: 600 Pa.
Tested to BS EN 1027.
Inward opening: single leaf: 600 Pa, double leaf: 300 Pa.
Outward opening: single leaf: 300 Pa, double leaf: 600 Pa.
Resistance to wind load
To BS EN 12211, 1600 Pa. Tested to 1600 Pa in accordance with BS EN 12211 (1600 Pa wind serviceability/ 2400 Pa wind safety).
To BS EN 12211, 1600 Pa. Tested to 1600 Pa in accordance with BS EN 12211 (1600 Pa wind serviceability/ 2400 Pa wind safety).
Third-party certification
Q-Mark product certification, Danish window verification and indoor climate label.
Q-Mark product certification, BM TRADA certified, Danish window verification and indoor climate label..

Sustainability data

Country of material origin
Denmark
Denmark
Country of product manufacture
Poland
Poland
