• Roof terraces.
• Balconies.
• Porches.
• Indoor flooring.
• Shed’s / outbuilding.
• Landscaping.
• Garden / patio.

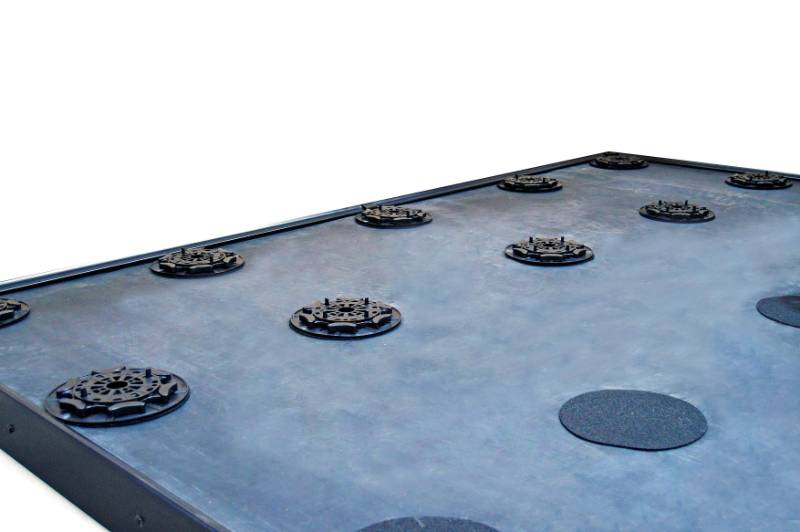

The PEDECK range of fixed and height adjustable supports, cradles and pedestal risers provide suitable solutions for the easy levelling of floors, decks and paving slabs in a variety of application situations.

PEDECK products are suitable for both indoor and outdoor use, providing for fast and effective levelling for installations on flat or sloped surfaces. The products have been tested and proven in all types of applications and can be relied upon for strong and stable installations.

From the simplest fixed height paver supports through to fully adjustable and height extendable Pedestals, whether for low-level installations in applications where threshold heights are a concern, or for high rise support, we have the systems and the answers.

A range of accessory items like levelling shims, height extenders, acoustic rubber head and base pads complete the pedestal range.

All versions of the range are designed with water drainage holes or channels, as appropriate, to prevent the build-up of stagnant water.

An optional acoustic rubber base pad is available for use on membranes, etc. We recommend the use of an optional acoustic cushioning ring for tile and paver installations, as these help to bed corners securely and reduce transmitted noise through the support system.

----------------------------------------------------------------------------------------------

PRODUCT VARIANTS

PED18-36 For Paver:

Low profile pedestal support for paver

PEDECK PED18-36 For Paver is composed of a threaded head section,incorporating four spacer fins (4mm in width) for tile or paver spacing.

The spacer fins for pavers are designed to allow easy removal where not required, for example where support is required under the centre of a large tile, or at edges. An easy to operate threaded adjustment ring makes raising or lowering the support head quick and precise.

A large 200mm (8”) base plate provides stable support on most surfaces.

‍

PED18-36 For Decking:

Low profile pedestal support for decking

PEDECK PED18-36 for decking is composed of a threaded head section, incorporating a fixing flange with screw slot used for attaching the support to a wooden joist for flooring or deck construction.

An easy to operate threaded adjustment ring makes raising or lowering the support head quick and precise.

A large 200mm (8”) base plate provides stable support on most surfaces.

Supplied in boxes of 30no

HEIGHT RANGE: 18-27mm - up to 36mm with 9mm extender (one supplied per pedestal)

PED35+ For Paver:

Adjustable pedestal support for paver

PEDECK PED35+ For Paver is composed of a threaded head section,incorporating four spacer fins (4mm in width) for tile or paver spacing.

The spacer fins for pavers are designed to allow easy removal where not required, for example where support is required under the centre of a large tile, or at edges.

‍

An easy to operate threaded adjustment ring makes raising or lowering the support head quick and precise.

A large 200mm (8") base plate provides stable support on most surfaces.

PED35+ For Decking:

Adjustable pedestal support for decking

‍

PEDECK PED35+ For Decking is composed of a threaded head section, incorporating a fixing flange with screw slot used for attaching the support to a wooden joist for flooring or deck construction.

The fixing flange will house a bearer 150mm wide across the head.

‍

An easy to operate threaded adjustment ring makes raising or lowering the support head quick and precise.

A large 200mm (8") base plate provides stable support on most surfaces.

Supplied in boxes of 30no

HEIGHT RANGE: 35-60mm - up to 1500mm with Clic Fit extenders (25mm/50mm/100mm) supplied separately.

PED41-66 for Paver:

Self levelling pedestal support for paving

PEDECK PED41-66 For Paver is composed of a self-levelling threaded head section, incorporating four spacer fins (4mm in width) for tile or paver systems.

The spacer fins for paver’s are designed to allow easy removal where not required, for example where support is required under the centre of a large tile, or at edges.

An easy to operate threaded adjustment ring makes raising or lowering the support head quick and precise.

‍

A large 200mm (8”) base plate provides stable support on most surfaces.

Supplied in boxes of 30no

HEIGHT RANGE: 41-66mm - up to 1500mm with Clic Fit extenders (25mm/50mm/100mm) supplied separately.

Features and benefits:

• Partly recycled and recyclable.
• Integrated drainage.
• Fully adjustable.
• No fixings or adhesives required for the PED35+ model.
• Two year guarantee.
• Large 200 mm (8”) base plate provides stable support on most surfaces.
• Optional acoustic rubber base pad is available for use on membranes.
