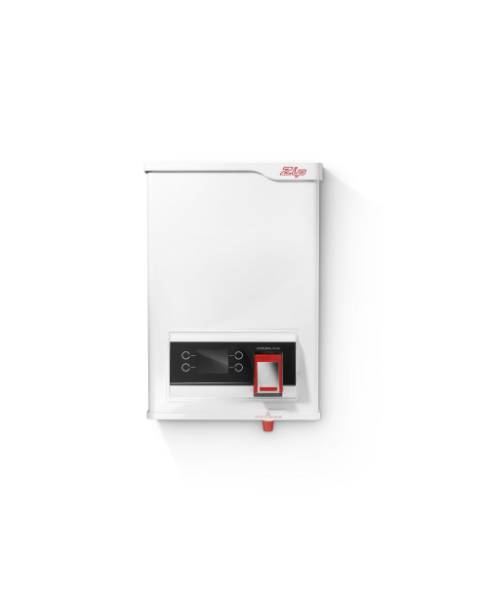

HydroBoil Plus - Water Tap
HydroBoil Plus - Water Tap
HydroBoil Plus - Water Tap

Last verified by manufacturer over a year ago

Zip Water

303562

Last verified by manufacturer over a year ago

Zip Water

305562

Last verified by manufacturer over a year ago

Zip Water

307562

Summary
Wall mounted instant boiling water tap.
Wall mounted instant boiling water tap.
Wall mounted instant boiling water tap.
Application

Suitable for providing boiling water instantly for tea, coffee and cooking in offices, commercial kitchens and hospitals.

Suitable for providing boiling water instantly for tea, coffee and cooking in offices, commercial kitchens and hospitals.

Suitable for providing boiling water instantly for tea, coffee and cooking in offices, commercial kitchens and hospitals.

Description

With all the benefits of the HydroBoil, HydroBoil Plus is the most technologically advanced model in the range and is designed to cut energy consumption. It features energy saving technology, inactivity and low light sleep modes and is equipped with a cool-touch two-way safety tap and safety lock.


Features and benefits:

  • Steam-Heat-Boost™ system recycles energy from steam to preheat the incoming cold water.
  • Power-Pulse™ energy saving technology only applies full power during heavy usage periods for maximum efficiency.
  • Inactivity and low light sleep modes enable the system to conserve energy during periods of low or non-usage.
  • Available in sizes from 37.5 L.
  • LCD shows time, day, heater operation, current temperature of the boiling chamber and energy saving mode status.
  • Includes compressed high temperature insulation panels engineered for easy boiling chamber access.
  • Unique two-way cool touch tap with lock button.
  • Boiling water temperature can be adjusted from 98°C to 68°C.

With all the benefits of the HydroBoil, HydroBoil Plus is the most technologically advanced model in the range and is designed to cut energy consumption. It features energy saving technology, inactivity and low light sleep modes and is equipped with a cool-touch two-way safety tap and safety lock.


Features and benefits:

  • Steam-Heat-Boost™ system recycles energy from steam to preheat the incoming cold water.
  • Power-Pulse™ energy saving technology only applies full power during heavy usage periods for maximum efficiency.
  • Inactivity and low light sleep modes enable the system to conserve energy during periods of low or non-usage.
  • Available in sizes from 37.5 L.
  • LCD shows time, day, heater operation, current temperature of the boiling chamber and energy saving mode status.
  • Includes compressed high temperature insulation panels engineered for easy boiling chamber access.
  • Unique two-way cool touch tap with lock button.
  • Boiling water temperature can be adjusted from 98°C to 68°C.

With all the benefits of the HydroBoil, HydroBoil Plus is the most technologically advanced model in the range and is designed to cut energy consumption. It features energy saving technology, inactivity and low light sleep modes and is equipped with a cool-touch two-way safety tap and safety lock.


Features and benefits:

  • Steam-Heat-Boost™ system recycles energy from steam to preheat the incoming cold water.
  • Power-Pulse™ energy saving technology only applies full power during heavy usage periods for maximum efficiency.
  • Inactivity and low light sleep modes enable the system to conserve energy during periods of low or non-usage.
  • Available in sizes from 37.5 L.
  • LCD shows time, day, heater operation, current temperature of the boiling chamber and energy saving mode status.
  • Includes compressed high temperature insulation panels engineered for easy boiling chamber access.
  • Unique two-way cool touch tap with lock button.
  • Boiling water temperature can be adjusted from 98°C to 68°C.
Digital objects
Color
White
White
White
Finish
Semi-gloss
Semi-gloss
Semi-gloss
Material
Steel
Steel
Steel
Shape
Rectangle
Rectangle
Rectangle
Length
201 mm
201 mm
201 mm
Width
329 mm
329 mm
329 mm
Height
586 mm
586 mm
586 mm
WarrantyDescription
Two year
Two year
Two year

Specification

Water
Instant boiling water.
Instant boiling water.
Instant boiling water.
Duty
-
-
-
Tank capacity
3 L / 20 users.
5 L / 30 users.
7.5 L / 45 users.
Hot cups
100 per hour.
140 per hour.
140 per hour.
Dimensions
289 x 180 x 431 mm.
318 x 198 x 465 mm.
318 x 198 x 578 mm.
Electrical connection
-
-
-
Power
1.4 kW.
2.2 kW.
2.2 kW.
Voltage
230 V.
230 V.
230 V.
Water inlet
1/2" BSP.
1/2" BSP.
1/2" BSP.

Additional properties

Accessories
Not required., ZD100 Tundish., ZD101 Tundish., 93734 Safety tap top assembly., 94514 Insulating tap body cover., 93441UK Standalone font., FL064 Inline filter., FL104 Inline filter., ZD200 Drip tray., ZE001 Cup dispensers., ZE002 Cup dispensers.
Not required., ZD100 Tundish., ZD101 Tundish., 93734 Safety tap top assembly., 94514 Insulating tap body cover., 93441UK Standalone font., FL064 Inline filter., FL104 Inline filter., ZD200 Drip tray., ZE001 Cup dispensers., ZE002 Cup dispensers.
Not required., ZD100 Tundish., ZD101 Tundish., 93734 Safety tap top assembly., 94514 Insulating tap body cover., 93441UK Standalone font., FL064 Inline filter., FL104 Inline filter., ZD200 Drip tray., ZE001 Cup dispensers., ZE002 Cup dispensers.

Sustainability data

Contains Red List materials
No
No
No
Country of material origin
Australia
Australia
Australia
Country of product manufacture
Australia
Australia
Australia
