Summary

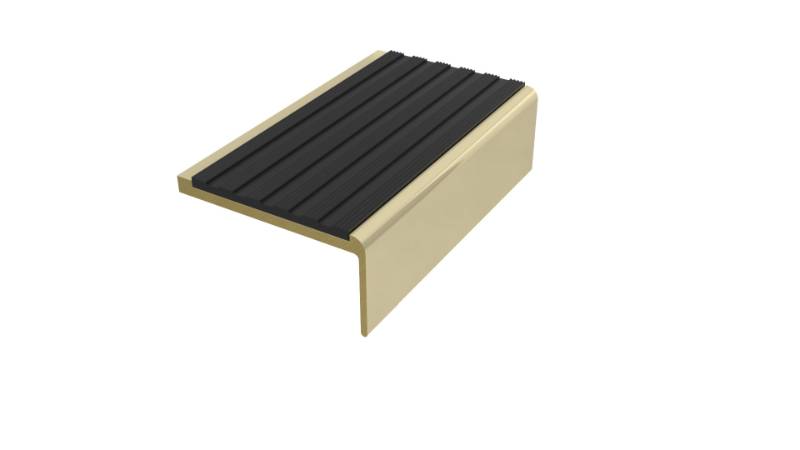

Brass stair nosings with concealed fixings 5 mm gauge for carpet, carpet tiles and resilient flooring.
-
-
Application
- To butt to flooring or installed with BNE Nap Detail for carpet installations.
- Can be rebated to sit flush in wooden steps.
-
-
Description
Brass stair nosing with concealed fixings. Suitable to butt up to flooring, or used with BNE brass nap lock profile, for use with broadloom installations.
Features and benefits:
- Available in a range of finishes.
- A wide variety of coloured polyvinyl chloride (PVC) infill options, to offer suitable light reflectance values (LRV) contrasts to the floor covering installed.
- PVC infills are available in smooth PVC or CAT Castellated PVC, for greater slip resistance value (SRV).
- Solid brass inserts are available.
- Also available with Olympic grip carborundum inserts, for use in very high traffic or exterior areas.
-
-
Digital objects
-
-
Length
2700 mm, 3200 mm
-
-
Width
60 mm
-
-
Height
30 mm
-
-
SKU Code
BN5
-
-
Specification
Classification data
Profile
Single channel/ square front.
-
-
Base section
-
-
-
Material
Solid brass grade H/H CZ108.
-
-
Finish
Polished brass, LRV 71.45.
-
-
Size
-
-
-
Rise x going
30 x 60 mm.
-
-
Gauge
5 mm.
-
-
Inserts
-
-
-
Material
PVC, Castellated., BTI 49.5 castellated brass., PVC, Smooth Textured., Olympic Grip Carborundum.
-
-
Colour
Black LRV:4.25., White LRV:84.22., Light Grey LRV:12.33., Flint LRV:11.27., Granite LRV:7.02., Rustic LRV:5.52., Fawn LRV:11.27., Ivory LRV:37.42., Spruce LRV:6.38., Jade LRV:7.33., Regency LRV:5.16., Mid Blue LRV:6.53., Nimbus LRV:4.77., Peat LRV:5.88., Yellow LRV:54.91., Poppy LRV:10.01., Claret LRV:5.83., Porth Stone LRV:52.91., Polar Grey LRV:42.53., Polished Brass Avg. LRV 71.45., Satin Brass Avg. LRV 59.55., Antique Brass Avg. LRV 29.55., Antique Bronze Avg. LRV 9.15., Black LRV 4.47., Light Grey LRV 12.74., Polar Grey LRV 42.73., Porth Stone LRV 53.11., Olympic Black LRV: 4.85.
-
-
Additional properties
Installation
To be supplied pre-drilled and countersunk in the channel for concealed fixing., To be supplied pre-drilled in the channel for on-site retro fitting of the infill., To be supplied undrilled for adhesive fixing using F. Ball & Co. Ltd Stycco Flex Rapid Curing Flexible Adhesive.
-
-
Length
3200 mm.
-
-
Sustainability data
Country of material origin
Europe
-
-
Country of product manufacture
United Kingdom
-
-
Recyclability
100% recyclable at suitable disposal centres
-
-
Recycled content
100 %
-
-
