Summary

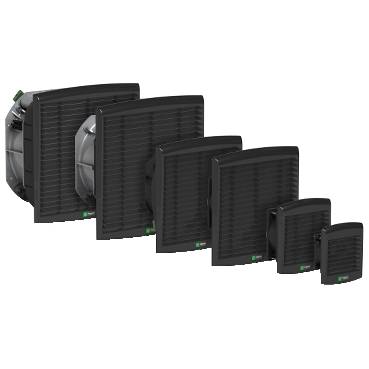

Fans for ventilation of electrical panels.
Color
Black
-
-
Material
Plastic
-
-
Shape
Rectangle
-
-
Length
49 mm, 62 mm, 104 mm, 116 mm, 161 mm, 162 mm
-
-
Width
117 mm, 150 mm, 248 mm, 316 mm
-
-
Height
137 mm, 170 mm, 268 mm, 336 mm
-
-
Warranty description
18 months
-
-
Specification
Standards
-
-
-
Dimensions
137 x 117 x 49 mm.
-
-
Duty
-
-
-
Air volume
38 m³/h at 50 Hz, 39 m³/h at 60 Hz.
-
-
External static resistance
29 Pa.
-
-
Sound power level
40–41 dB.
-
-
Operating conditions
-
-
-
Environment
Ambient air temperature: -10 to +70°C.
-
-
Operation
Single.
-
-
Motor and drive
-
-
-
Type
Axial.
-
-
Materials
-
-
-
Casing
Injected thermoplastic (PC and ASA PC).
-
-
Additional properties
Ingress protection (IP) rating
IP54., IP55.
-
-
Sustainability data
Country of product manufacture
France
-
-
Material
Plastic
-
-
