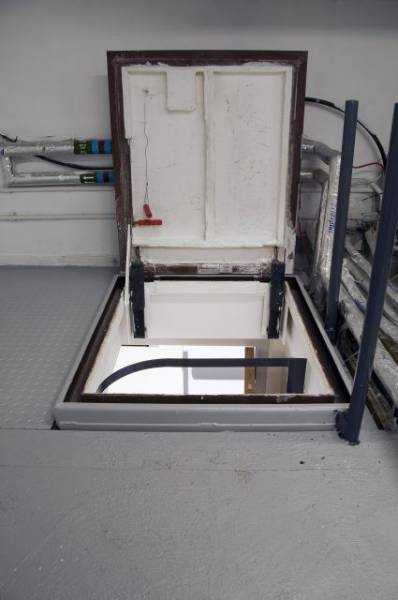

J-FR Fire Rated Floor Access Door
J-FR Fire Rated Floor Access Door
J-FR Fire Rated Floor Access Door

Verified 3 months ago

Bilco UK

Verified 3 months ago

Bilco UK

Verified 3 months ago

Bilco UK
Summary
A range of one hour fire rated floor doors.
Color
Red
-
-
Finish
Primed
-
-
Material
Stainless steel
-
-
Shape
Rectangle
-
-
Length
826 mm, 976 mm, 1131 mm, 1281 mm, 1436 mm, 1741 mm, 2046 mm
-
-
Width
826 mm, 976 mm, 1131 mm, 1281 mm
-
-
Warranty description
Five year
-
-

Specification

Fire performance
To BS 476-22, 60 minutes.
-
-
Door
-
-
-
Orientation
Horizontal.
-
-
Material
Stainless steel.
-
-
Operation
-
-
-
Mode
Manual (lift assisted). Compression spring operators enclosed in telescopic tubes.
-
-
Accessories
None., Drop-in installation modifications., Electric motor operation., Handrails., Metal enclosed insulation., Slip-resistant coating., Snow and ice melting cables., Steel or aluminium grating., Submersible pump guide rail brackets.
-
-

Additional properties

Latch
Self closing., Slam lock.
-
-
Lock
Not required., Cylinder lock., High security detention lock., Magnetic lock., Padlock lugs., Panic lock., Recessed padlock hasp., Security cover McGuard plugs.
-
-
Hardware
Standard., Stainless steel.
-
-
Cover
6 mm thick diamond pattern steel plate, alkyd base red oxide primer finish. Reinforced for 1464 kg/m² live load. Intumescent fire coating applied to the underside of the cover.
-
-
Frame
Formed channel frame with anchor angle welded around the perimeter. Intumescent fire coating applied on the interior surfaces.
-
-
Hinges
Heavy forged brass hinges with 10 mm type 316 stainless steel hinge pins.
-
-
Dimensions
610 x 610 mm.
-
-
Weight
99 kg.
-
-
