Summary

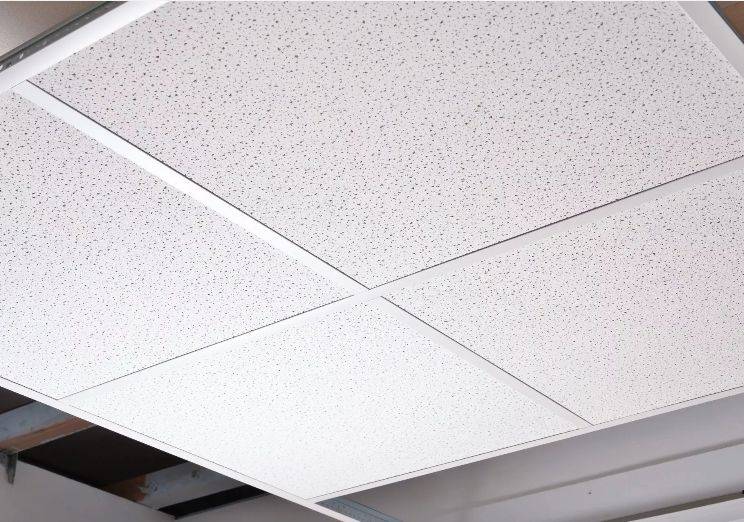

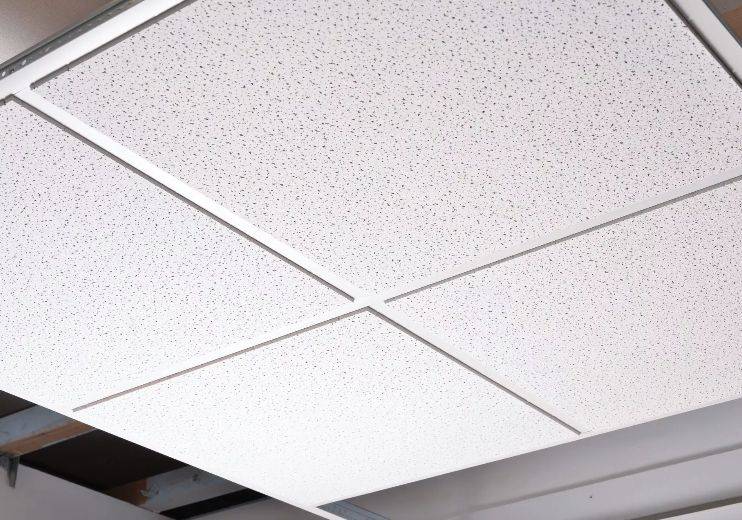

Suspended ceiling system with lay-in mineral ceiling tiles providing a cost-effective, finely fissured ceiling range, specifically developed for the education sector.
Suspended ceiling system with lay-in mineral ceiling tiles providing a cost-effective, finely fissured ceiling range, specifically developed for the education sector.
Application
Suitable for a number of different interiors, including offices, retail spaces and schools.
Suitable for a number of different interiors, including offices, retail spaces and schools.
Description
Suspended ceiling system with lay-in mineral ceiling tiles providing a cost-effective, finely fissured ceiling range, specifically developed for the education sector.
Designed to meet and exceed the requirements of the 'Acoustic Design of Schools' document (BB93) produced by the DfES which gives guidance on the acoustic performance of different teaching spaces.
Features and benefits:
- Textured and microperforated; fine painted finish.
- Choice of edge profile; choice of tile sizes (board edge only).
- Grid options Gridline 24 Butt Cut / Joggled
- 15-year product guarantee.
- 30-year system guarantee.
Suspended ceiling system with lay-in mineral ceiling tiles providing a cost-effective, finely fissured ceiling range, specifically developed for the education sector.
Designed to meet and exceed the requirements of the 'Acoustic Design of Schools' document (BB93) produced by the DfES which gives guidance on the acoustic performance of different teaching spaces.
Features and benefits:
- Textured and microperforated; fine painted finish.
- Choice of edge profile; choice of tile sizes (board edge only).
- Grid options Gridline 24 Butt Cut / Joggled
- 15-year product guarantee.
- 30-year system guarantee.
Digital objects
Color
White
White
Finish
Painted
Painted
Material
Mineral fibre
Mineral fibre
Shape
Square, Rectangle
Square, Rectangle
Length
Bespoke
Bespoke
Width
Bespoke
Bespoke
Height
14 mm
14 mm
Warranty description
15 year, 30 year
15 year, 30 year
SKU Code
2534M, 2538M, 2536M
2534M, 2538M, 2536M
Specification
System performance
-
-
Ceiling support
Gridline 24 joggled/butt cut, Global White., Gridline 24 joggled/butt cut, White RAL 9010., Gridline 24 joggled/butt cut, Silver RAL 9006., Gridline 24 joggled/butt cut, Black.
Gridline 24 joggled/butt cut, Global White., Gridline 24 joggled/butt cut, White RAL 9010., Gridline 24 joggled/butt cut, Silver RAL 9006., Gridline 24 joggled/butt cut, Black.
Support fasteners
-
-
Ceiling units
600 x 600 x 14 mm, board edge, Global White (2534M)., 1200 x 600 x 14 mm, board edge, Global White (2538M).
600 x 600 x 14 mm, tegular24 edge, Global White (2536M).
Barriers in ceiling void
-
-
Fire barriers
-
-
Acoustic barriers
-
-
Plenum barriers
-
-
System accessories
-
-
Additional properties
Weight
Infill units: 3.1 kg/m².
Infill units: 3.1 kg/m².
Reaction to fire
To EN 13501-1, infill units: Euroclass A2-s1, d0; grid: Euroclass A1.
To EN 13501-1, infill units: Euroclass A2-s1, d0; grid: Euroclass A1.
Sound attenuation
Infill units: Dnfw = 35 dB; Class C.
Infill units: Dnfw = 35 dB; Class C.
Sound absorption
Infill units: αw = 0.60.
Infill units: αw = 0.60.
Weighted sound reduction index, Rw
Infill units: 17 dB.
Infill units: 17 dB.
Noise reduction coefficient
0.65.
0.65.
Colour (Light reflectance value (LRV)
Infill units: 85%.
Infill units: 85%.
RelativeHumidity
95%.
95%.
Sustainability data
Contains Red List materials
No
No
Country of material origin
Europe
Europe
Country of product manufacture
United Kingdom
United Kingdom
Recyclability
100%
100%
Recycled content
50 %
50 %
